Baldor 380T

Baldor 380T is a 28L 2/4-pole double-shaft Dental Lathe family polishing lathe AC motor rated .170 HP / .330 HP @ 60 HZ, 1710 rpm / 3430 rpm, 1 phase 115.0 V, with TENV enclosure.

BaldorMFR # 380TSKU # YLS36JXNVZKOU1I

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output.33/.17

Number of poles2 · 4

Have questions?Chat on WhatsApp

About This Product

Baldor 380T is a 28L 2/4-pole double-shaft Dental Lathe family polishing lathe AC motor rated .170 HP / .330 HP @ 60 HZ, 1710 rpm / 3430 rpm, 1 phase 115.0 V, with TENV enclosure.

Baldor 380T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output.33/.17

Number of poles2 · 4

Output at frequency.170 HP @ 60 HZ · .330 HP @ 60 HZ

Phase1

Product styleDENTAL LATHE

Shaft diameter0.376 IN

Speed (rpm)1710 rpm · 3430 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)115 V

Voltage at frequency115.0 V @ 60 HZ

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage3.800 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

Motor lead quantity/wire size3 @ 18 AWG

Motor type3528L

Mounting arrangementF1

Overall length15.19 IN

Product familyDental Lathe

Service factor1.00

Shaft extension locationPulley End

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed code1Ph 2 Speed Pole Changing

Motor standardsOther

Starting methodDirect on line

Thermal device - windingDo Not Use

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568127841

Nameplate

Catalog number380T

Specification numberL35-242G0330

Horsepower (HP).33/.17

Voltage (V)115

Phase1

Current (A)3.8/2.4

Frequency (Hz)60

Speed (rpm)3430/1710

Insulation classB

Rating40C AMB-CONT

Nameplate numberNP3356L

Performance

General characteristics· 115 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)2.2367 Ω / 13.494 Ohms B Ph

Start configurationDOL

Breakdown torque2.54 lb-ft

Pull-up torque0.75 lb-ft

Locked-rotor torque1 lb-ft

Starting current (A)24 A

Line-to-line resistance at 25 °C (ohms)2.2524 Ω / 13.492 Ohms B Ph

Start configurationDOL

Breakdown torque1.55 lb-ft

Pull-up torque0.636 lb-ft

Locked-rotor torque1.03 lb-ft

Starting current (A)23.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	32	60	74	83	87	89	90
Efficiency %	0	52	63.4	66.1	65.1	61.5	53.5
Speed rpm	3589	3558.5	3524.3	3480.5	3428.7	3363.6	3226.7
Line amps A	1.51	1.82	2.3	2.98	3.77	4.72	6.24
Power W	56	125	197	282	375	486	647
Torque lb-ft	0	0.1286	0.2495	0.3769	0.5013	0.6257	0.755

Documents & CAD

For this product 5

Dimension DrawingDimension SheetPDF·48 KB·English

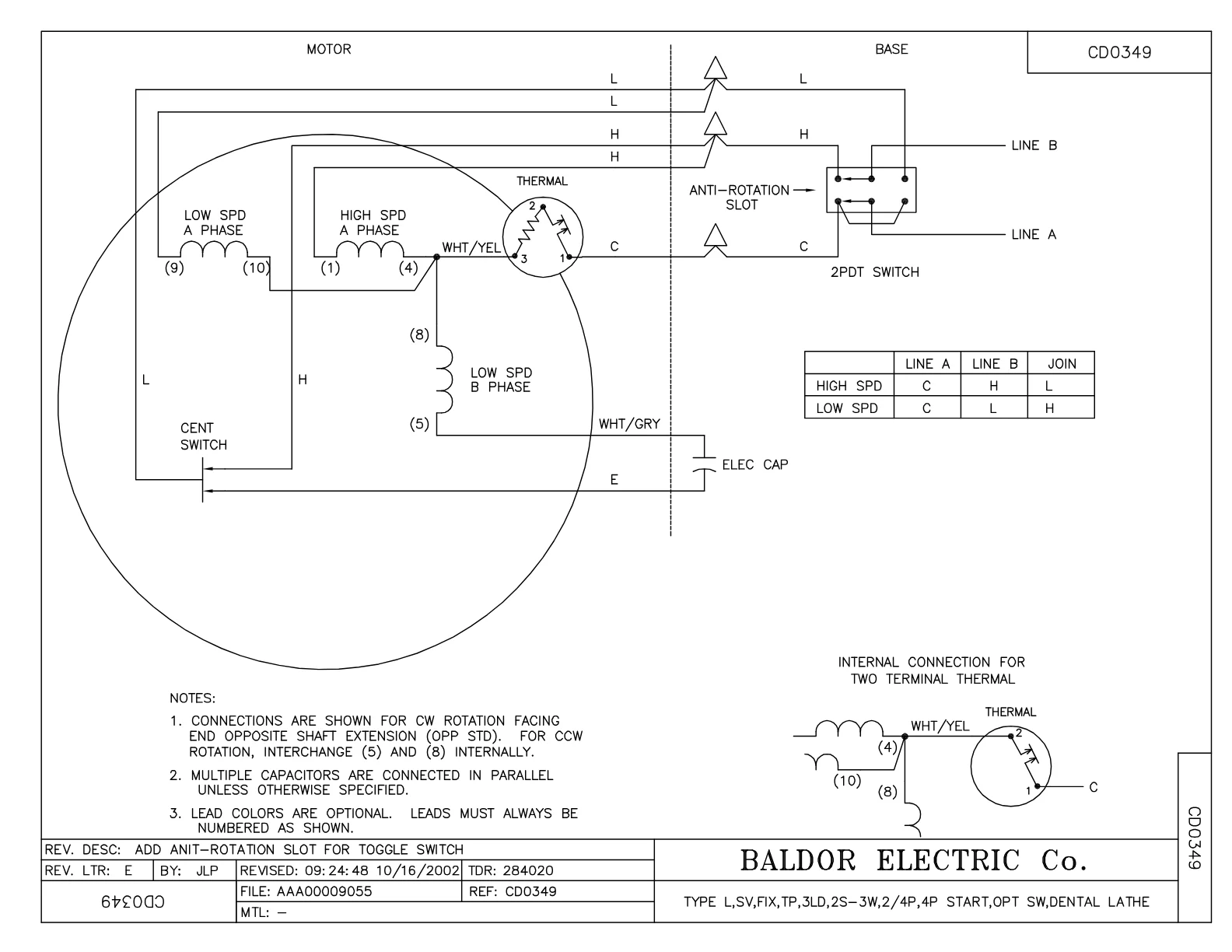

Wiring DiagramWiring DiagramPDF·43 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·41 KB

DatasheetDatasheetPDF·626 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 2

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor 380T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN904	Baldor Polishing Lathes 6/05	1 pcs	6 motors

Accessories 6

Genuine accessories that can be used with the Baldor 380T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
R1	DR-3544 R1 RH CHUCK	5 motors
R2	DR-3546B R2 RH WHEEL CHUCK	5 motors
R5A	BURR CHUCK-RH	5 motors
R6	ARBOR BAND CHUCK	5 motors
L3	DR-3545 LH HD WHEEL CHUCK	6 motors
L4	DR-3547B L4 LH SF WHEEL CHUCK	6 motors
