Baldor 353T

Baldor 353T 3520Q is a Dental Lathe family AC motor rated .250 HP / .060 HP @ 60 HZ, 3450 rpm / 1725 rpm, 1 phase 115.0 V, with TENV enclosure.

BaldorMFR # 353TSKU # YLSHDGRXKWAVJDC

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeQ

Nameplate output.25/.06

Number of poles2 · 4

Have questions?Chat on WhatsApp

About This Product

Baldor 353T 3520Q is a Dental Lathe family AC motor rated .250 HP / .060 HP @ 60 HZ, 3450 rpm / 1725 rpm, 1 phase 115.0 V, with TENV enclosure.

Baldor 353T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeQ

Nameplate output.25/.06

Number of poles2 · 4

Output at frequency.060 HP @ 60 HZ · .250 HP @ 60 HZ

Phase1

Shaft diameter0.376 IN

Speed (rpm)1725 rpm · 3450 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)115 V

Voltage at frequency115.0 V @ 60 HZ

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Base indicatorRigid

Current at voltage3.000 A @ 115.0 V

Duty ratingCONT

Insulation classF

Motor lead quantity/wire size4 @ 18 AWG

Motor type3520Q

Mounting arrangementF1

Product familyDental Lathe

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft rotationFixed Opposite Standard

Speed code1Ph 2 Speed Pole Changing

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568127810

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·42 KB·English

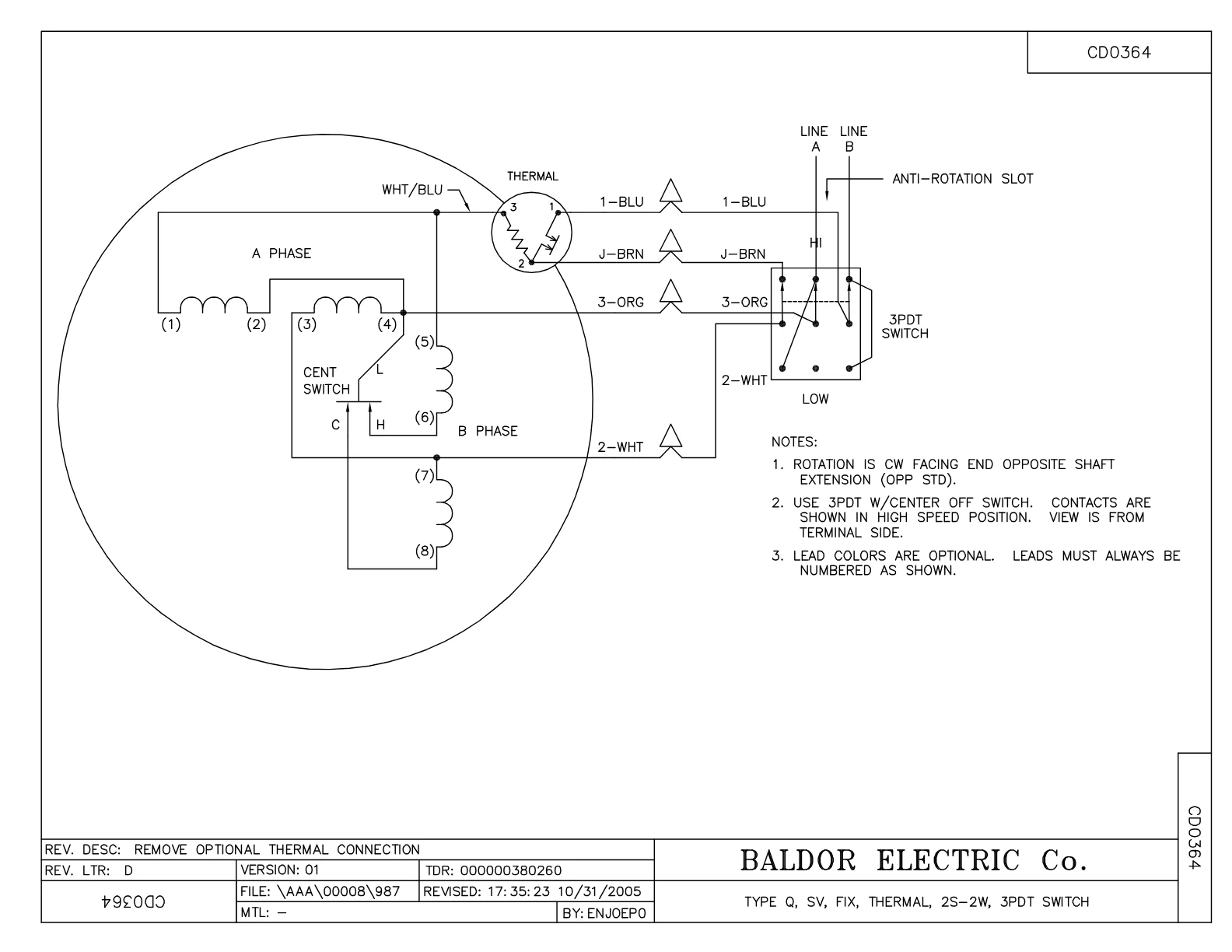

Wiring DiagramWiring DiagramPDF·35 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·39 KB

DatasheetDatasheetPDF·449 KB·English

CAD Files 2

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor 353T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN904	Baldor Polishing Lathes 6/05	1 pcs	6 motors

Accessories 6

Genuine accessories that can be used with the Baldor 353T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
R1	DR-3544 R1 RH CHUCK	5 motors
R2	DR-3546B R2 RH WHEEL CHUCK	5 motors
R5A	BURR CHUCK-RH	5 motors
R6	ARBOR BAND CHUCK	5 motors
L3	DR-3545 LH HD WHEEL CHUCK	6 motors
L4	DR-3547B L4 LH SF WHEEL CHUCK	6 motors
