How can I get a price quote for Baldor 342?

You can request a fast quote for Baldor 342 from Yılsa Engineering. Reference part number YLS9XUCOXFLT1VN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor 342 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor 342 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor 342?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor 342

342

BaldorMFR # 342SKU # YLS9XUCOXFLT1VN

EnclosureLATH

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeSplit Phase

Nameplate output.25/.06

Number of poles2 · 4

Have questions?Chat on WhatsApp

About This Product

Baldor 342 (342) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor 342 — price, stock availability and technical specifications.

Baldor 342

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureLATH

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeSplit Phase

Nameplate output.25/.06

Number of poles2 · 4

Output at frequency.060 HP @ 50 HZ · .250 HP @ 50 HZ

Phase1

Product styleDENTAL LATHE

Shaft diameter0.376 IN

Speed (rpm)1500 rpm · 3000 rpm

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage (V)220 V · 240 V

Voltage at frequency240.0 V @ 50 HZ · 220.0 V @ 50 HZ

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage1.200 A @ 240.0 V · 1.500 A @ 220.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

KVA codeP

Motor lead quantity/wire size9 @ 18 AWG

Motor type3424S

Mounting arrangementF1

Overall length13.13 IN

Product familyDental Lathe

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed code1Ph 2 Speed Pole Changing

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568162309

Product TypeGeneral Purpose Motors

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·40 KB·English

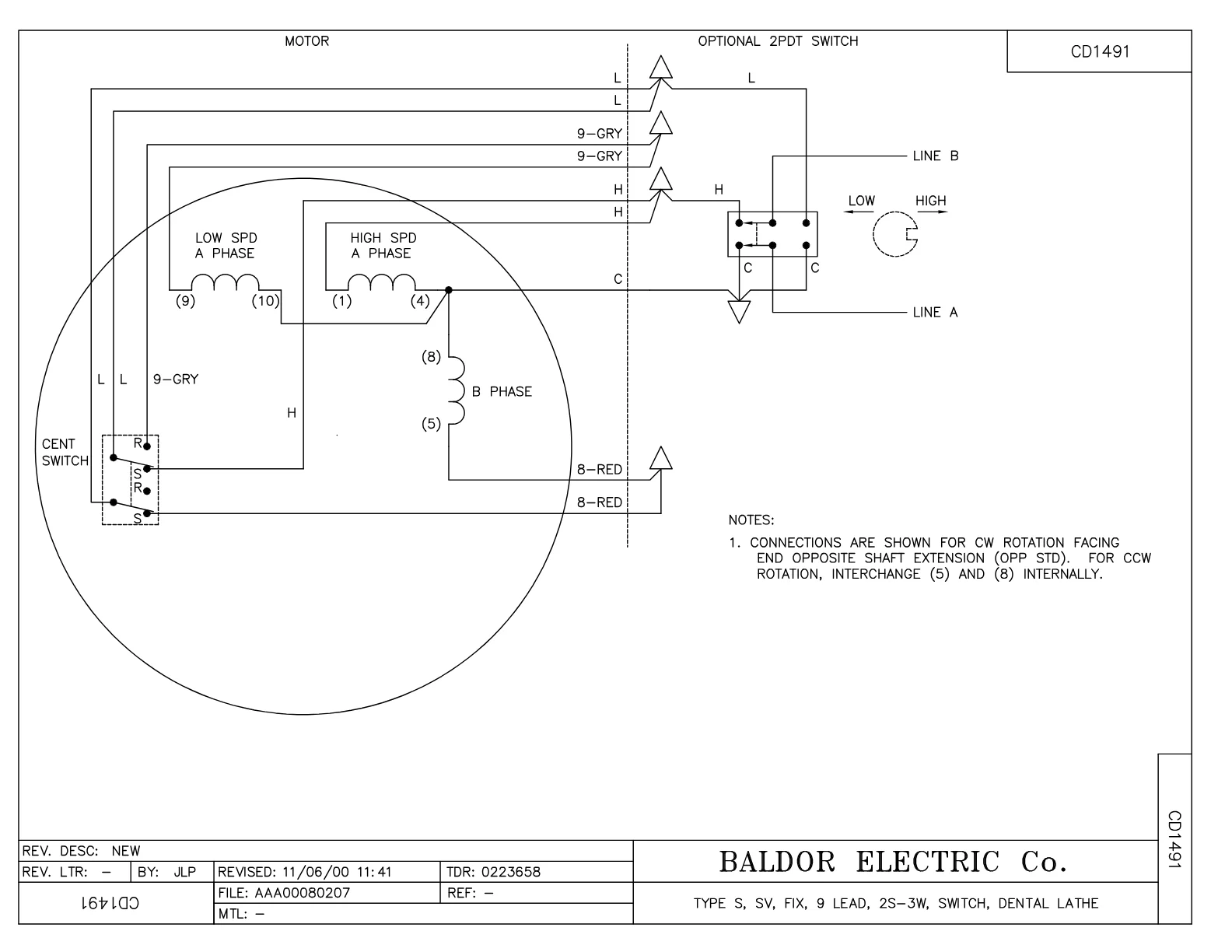

Wiring DiagramWiring DiagramPDF·36 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·39 KB

DatasheetDatasheetPDF·448 KB·English

CAD Files 2

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor 342 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
SP9019SP	SWITCH 7563K6 (EATON)	1 pcs	4 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
MN904	Baldor Polishing Lathes 6/05	1 pcs	6 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 6

Genuine accessories that can be used with the Baldor 342 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
R1	DR-3544 R1 RH CHUCK	5 motors
R2	DR-3546B R2 RH WHEEL CHUCK	5 motors
R5A	BURR CHUCK-RH	5 motors
R6	ARBOR BAND CHUCK	5 motors
L3	DR-3545 LH HD WHEEL CHUCK	6 motors
L4	DR-3547B L4 LH SF WHEEL CHUCK	6 motors
