Baldor 340

Baldor 340 is a 0.25/0.06 HP, 3600/1800 rpm, single-phase 115 V 60 Hz dental lathe motor with 3424S frame and TENV enclosure.

BaldorMFR # 340SKU # YLSHH6AWPBRSM24

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeSplit Phase

Nameplate output.25/.06

Number of poles2 · 4

Have questions?Chat on WhatsApp

About This Product

Baldor 340 is a 0.25/0.06 HP, 3600/1800 rpm, single-phase 115 V 60 Hz dental lathe motor with 3424S frame and TENV enclosure.

Baldor 340

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeSplit Phase

Nameplate output.25/.06

Number of poles2 · 4

Output at frequency.060 HP @ 60 HZ · .250 HP @ 60 HZ

Phase1

Product styleDENTAL LATHE

Shaft diameter0.376 IN

Speed (rpm)1800 rpm · 3600 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)115 V

Voltage at frequency115.0 V @ 60 HZ

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage2.900 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Heater indicatorNo Heater

Insulation classB

KVA codeV

Motor lead quantity/wire size9 @ 18 AWG

Motor type3424S

Mounting arrangementF1

Overall length13.13 IN

Product familyDental Lathe

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed code1Ph 2 Speed Pole Changing

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127797

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·36 KB·English

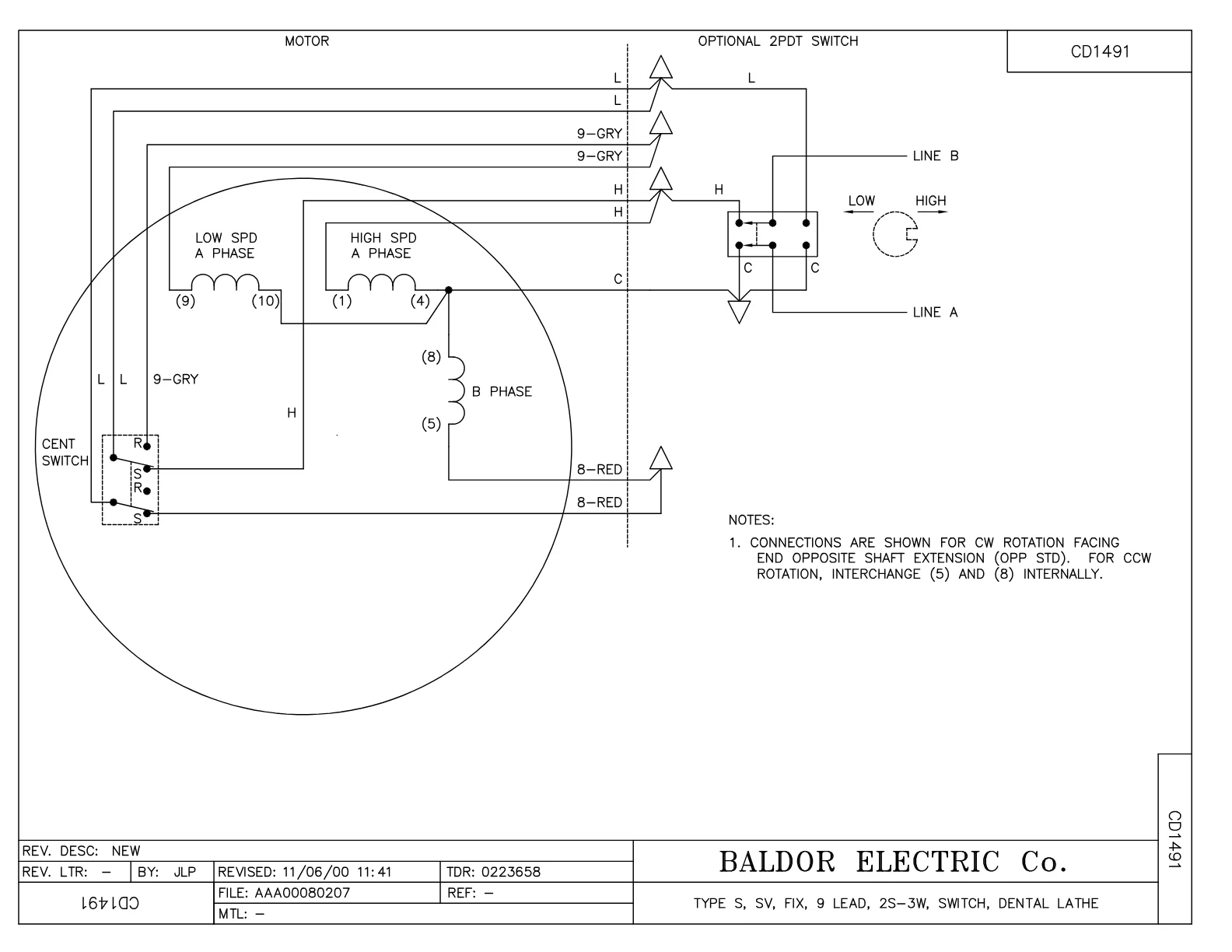

Wiring DiagramWiring DiagramPDF·36 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·36 KB

DatasheetDatasheetPDF·445 KB·English

CAD Files 2

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor 340 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
SP9019SP	SWITCH 7563K6 (EATON)	1 pcs	4 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
MN904	Baldor Polishing Lathes 6/05	1 pcs	6 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 6

Genuine accessories that can be used with the Baldor 340 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
R1	DR-3544 R1 RH CHUCK	5 motors
R2	DR-3546B R2 RH WHEEL CHUCK	5 motors
R5A	BURR CHUCK-RH	5 motors
R6	ARBOR BAND CHUCK	5 motors
L3	DR-3545 LH HD WHEEL CHUCK	6 motors
L4	DR-3547B L4 LH SF WHEEL CHUCK	6 motors
