Baldor 333B

Baldor 333B is a 0.75 HP, 3600 rpm, single-phase 115/230 V 60 Hz buffer motor with 3524C frame and TENV enclosure.

BaldorMFR # 333BSKU # YLSG2MBDRRMMG1X

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.75

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 333B is a 0.75 HP, 3600 rpm, single-phase 115/230 V 60 Hz buffer motor with 3524C frame and TENV enclosure.

Baldor 333B

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Nameplate output.75

Number of poles2

Output at frequency.750 HP @ 60 HZ

Phase1

Shaft diameter0.750 IN

Speed (rpm)3600 rpm

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage (V)115 V · 230 V

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage2.400 A @ 230.0 V · 4.800 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

Motor lead quantity/wire size4 @ 18 AWG

Motor type3524C

Mounting arrangementF1

Overall length28.37 IN

Product familyBuffer

Service factor1.00

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127469

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·55 KB·English

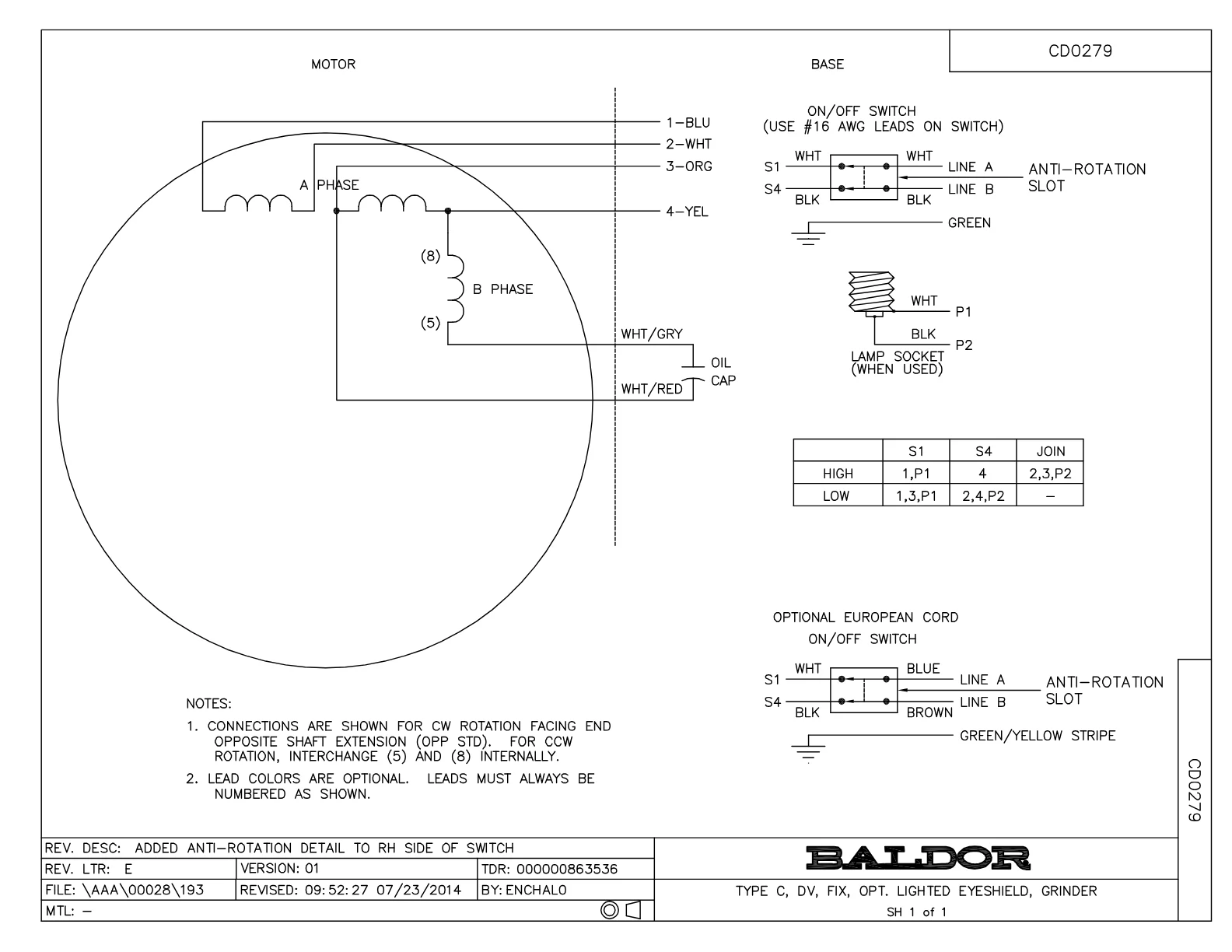

Wiring DiagramWiring DiagramPDF·46 KB·English

DatasheetDatasheetPDF·476 KB·English

Series documents 1· shared by this product series

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·40 KB

CAD Files 2

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor 333B motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3016F12SP	CYL OIL CAP 16MFD/370V	1 pcs	15 motors
RM1005A01SP	BUMPER- #2089 (R-R CO)	4 pcs	51 motors
G8EP3900A01SP	ENDPLATE, MACH	2 pcs	28 motors
XY7510A12SP	3/4-10 NUT R.H. HEX (NC) ZINC PLATED	1 pcs	24 motors
SP9000SP	80600BJ A-H OR 1520237-2 TYCO;2PST,125/2	1 pcs	27 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 7

Genuine accessories that can be used with the Baldor 333B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA20E	PEDESTAL LIGHT INDUSTRIAL,STEEL	35 motors
A82	8" COTTON BUFFING WHEEL 3/4 " BORE	4 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
