Baldor 2048-151D

Baldor 2048-151D; a 1.5 HP @ 60 HZ, 3450 rpm, single-phase 230/115 V @ 60 HZ, 143 frame, TEFC AC electric motor for belt sander applications.

BaldorMFR # 2048-151DSKU # YLSXTG4IR7JOITM

EnclosureTEFC

Frame143

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output1.5

Have questions?Chat on WhatsApp

About This Product

Baldor 2048-151D; a 1.5 HP @ 60 HZ, 3450 rpm, single-phase 230/115 V @ 60 HZ, 143 frame, TEFC AC electric motor for belt sander applications.

Baldor 2048-151D

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output1.5

Number of poles2

Output at frequency1.500 HP @ 60 HZ

Phase1

Speed (rpm)3450 rpm

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage (V)115 V · 230 V

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage15.000 A @ 115.0 V · 7.500 A @ 230.0 V

Design codeL

Duty ratingCONT

Efficiency at 100% load70.0 %

Feedback deviceNO FEEDBACK

Insulation classB

KVA codeH

Motor lead quantity/wire size4 @ 16 AWG

Motor type3528L

Mounting arrangementF1

Overall length16.62 IN

Power factor82

Product familyBelt Sander

Service factor1.00

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127698

Nameplate

Catalog number2048-151D

Horsepower (HP)1.5

Voltage (V)115/230

Phase1

Current (A)15/7.5

Frequency (Hz)60

Speed (rpm)3600

Specification numberB2-3A

Nameplate numberNP3118

Performance

General characteristics· 230 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)1.26 Ω / 1.23 Ohms B Ph

Temperature rise at rated load (°C)70° C

Temperature rise at service factor load (°C)84° C

Start configurationDOL

Breakdown torque5.6 lb-ft

Pull-up torque5.2 lb-ft

Locked-rotor torque5.5 lb-ft

Starting current (A)42 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	22	47	64	73	80	84	86	82
Efficiency %	0	51.9	65.3	68.4	71.2	70.6	68.4	70.8
Speed rpm	3591	3567	3541	3514	3475	3439	3397	3453
Line amps A	4.5	5	5.8	6.9	8.6	10.2	12.1	9.6
Power W	228	561	886	1259	1594	1989	2434	0
Torque lb-ft	0	0.575	1.15	1.725	2.3	2.875	3.45	0

Documents & CAD

For this product 5

Dimension DrawingDimension SheetPDF·103 KB·English

Dimension DrawingDimension SheetPDF·51 KB·English

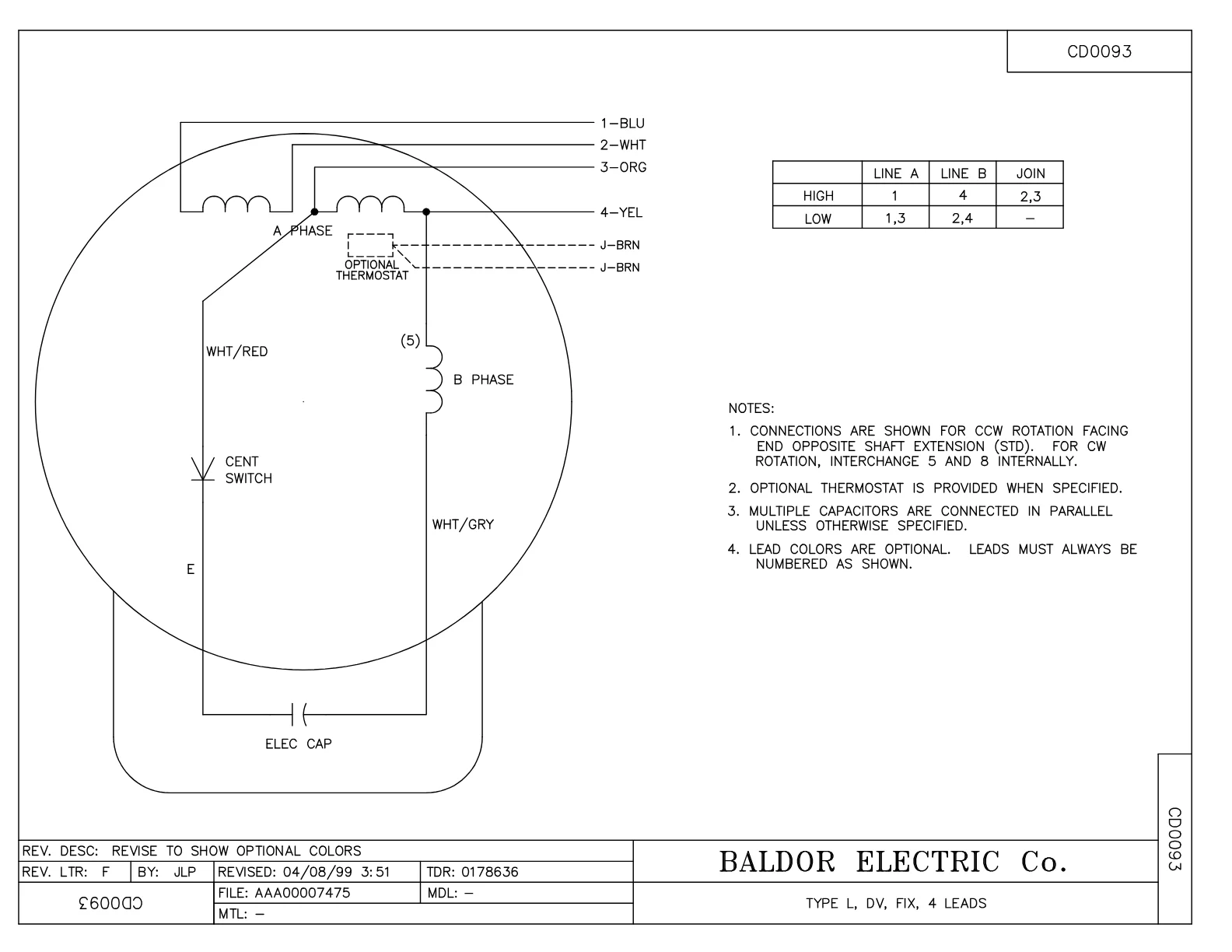

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·651 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·104 KB

CAD Files 2

2D Drawing

Spare Parts 13

The genuine spare parts used for servicing and repairing the Baldor 2048-151D motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	1 pcs	1,025 motors
G8AP1003A01SP	TOOL REST	1 pcs	23 motors
B2FH2806A01SP	CONTACT WHEEL GUARD	1 pcs	7 motors
B2FH2801A01SP	GRINDER GUARD, MACH	1 pcs	7 motors
B2AP3003A01SP	IDLER WHEEL -- BELT GRINDER	1 pcs	7 motors
MN902	MANUAL FOR BELT GRINDERS	1 pcs	7 motors
B2AP5001A01SP	CONTACT WHEEL ASSY WITH RUBBER THREAD	1 pcs	7 motors
XY7510A12SP	3/4-10 NUT R.H. HEX (NC) ZINC PLATED	1 pcs	24 motors
AB248	ABRASIVE BELT, 2" X 48", 80 GRIT,CERAMIC	1 pcs	7 motors
B2FH2810A01SP	GUARD (HALF) MACHINED, USE W/B2FH2811A01	1 pcs	7 motors
B2FH2808A01SP	GUARD COVER, MACH	1 pcs	7 motors
B2FH2809A01SP	GUARD COVER, MACH	1 pcs	7 motors

Accessories 9

Genuine accessories that can be used with the Baldor 2048-151D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA16	PEDESTAL INDUSTRIAL, CAST IRON 6" - 10"	48 motors
GA14	PEDESTAL FABRICATED STEEL W/SHELVES	48 motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA20E	PEDESTAL LIGHT INDUSTRIAL,STEEL	35 motors
AB248	2' X 48" 80 GRIT GRINDER BELT	7 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
BQ2-015-CC	1PH Brake,NEMA 1 208-230 VAC,50/60Hz	13 motors
BQ2-015-CP	1PH Brake, Panel 208-230 VAC, 50/60 Hz	13 motors
