Baldor 1458

Baldor 1458 is a buffer motor rated 5 HP, 1500/1800 rpm, 3 phase 208/230/460 V 50/60 Hz, 3735M, with TENV enclosure.

BaldorMFR # 1458SKU # YLSSFMCCNI8CV12

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output5

Number of poles4

Have questions?Chat on WhatsApp

About This Product

Baldor 1458 is a buffer motor rated 5 HP, 1500/1800 rpm, 3 phase 208/230/460 V 50/60 Hz, 3735M, with TENV enclosure.

Baldor 1458

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output5

Number of poles4

Output at frequency5.000 HP @ 50 HZ · 5.000 HP @ 60 HZ

Phase3

Product styleGRINDER

Shaft diameter1.250 IN

Speed (rpm)1500 rpm · 1800 rpm

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage (V)208 V · 230 V · 460 V

Voltage at frequency230.0 V @ 50 HZ · 208.0 V @ 60 HZ · 208.0 V @ 50 HZ · 460.0 V @ 60 HZ · 460.0 V @ 50 HZ · 230.0 V @ 60 HZ

Wheel bore size1.2500 IN

Wheel diameter14.0000 IN

Wheel face3.0000 IN

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Current at voltage13.600 A @ 230.0 V · 15.000 A @ 208.0 V · 6.800 A @ 230.0 V · 6.800 A @ 460.0 V

Design codeB

Duty ratingCONT

Insulation classB

KVA codeH

Motor lead quantity/wire size9 @ 14 AWG

Motor type3735M

Mounting arrangementF1

Product familyBuffer

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationPhase Seq-Opp Std Rot (CWODE)

Speed codeSingle Speed

Starting methodDirect on line

Winding thermal 1None

Winding thermal 2None

UPC781568127599

Nameplate

Catalog number1458

Horsepower (HP)5

Voltage (V)230

Phase3

Current (A)13.6

Frequency (Hz)50//60

Speed (rpm)1500//1800

Specification numberG14-117C-0036G1

Nameplate numberNP3411L

Performance

General characteristics· 460 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)2.24 Ω

Start configurationDOL

Breakdown torque50.4 lb-ft

Pull-up torque21.4 lb-ft

Locked-rotor torque29.1 lb-ft

Starting current (A)38.7 A

Line-to-line resistance at 25 °C (ohms)2.24 Ω

Start configurationDOL

Breakdown torque71.6 lb-ft

Pull-up torque35.3 lb-ft

Locked-rotor torque47.8 lb-ft

Starting current (A)46 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	13	53	74	83	87	90	90
Efficiency %	0	76.9	84.7	86.7	87.1	86.5	85.5
Speed rpm	1798	1784	1770	1755	1739	1721	1702
Line amps A	2.43	2.87	3.74	4.87	6.15	7.56	9.09
Power W	253	1216	2205	3225	4290	5392	6544
Torque lb-ft	0	3.69	7.43	11.2	15.1	19.1	23.2

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·63 KB·English

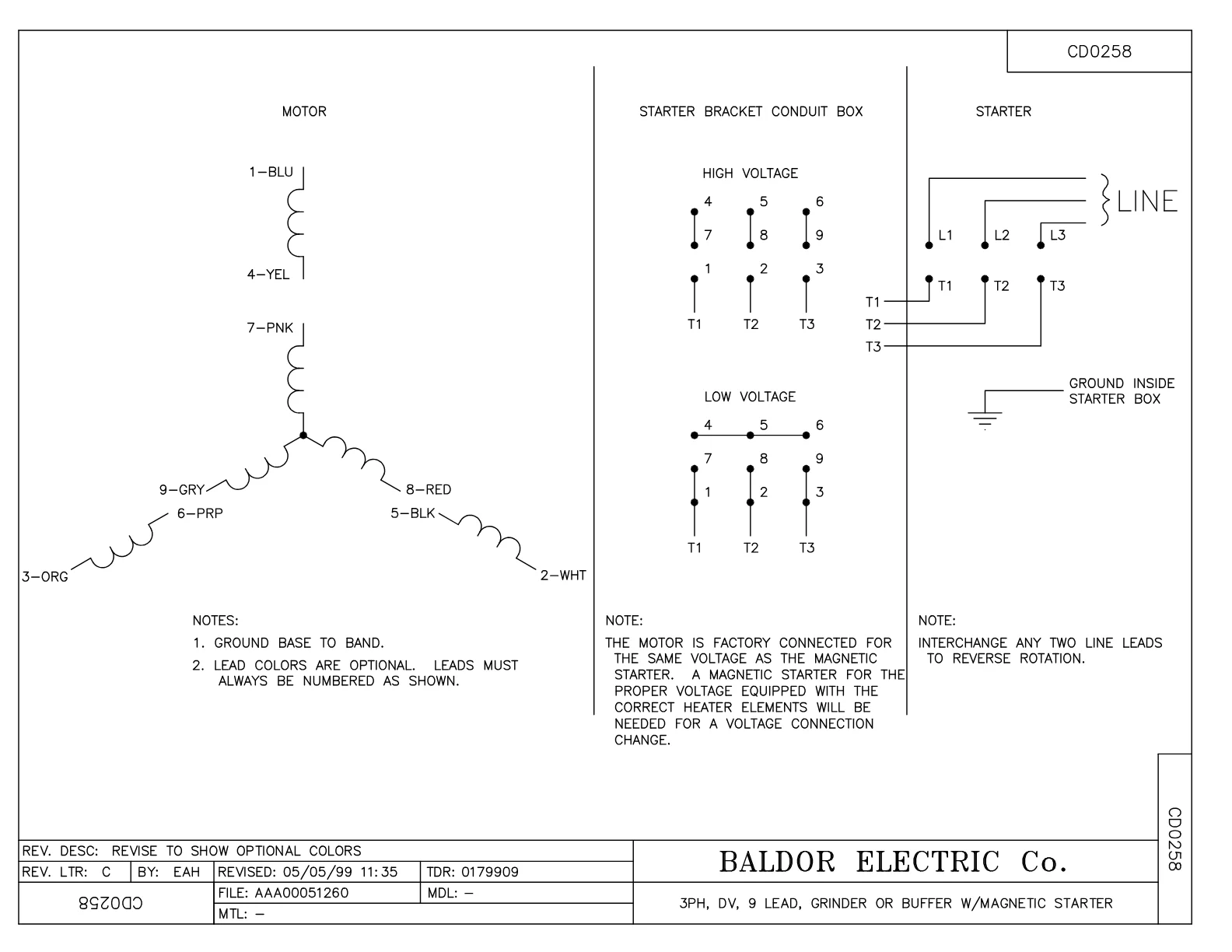

Wiring DiagramWiring DiagramPDF·48 KB·English

DatasheetDatasheetPDF·644 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor 1458 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
XZ2007A62SP	1 1/4-7 NUT LH HEX (NC)	1 pcs	18 motors
XZ2007A12SP	1 1/4-7 NUT RH HX(NC)(F/S	1 pcs	18 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor 1458 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
