Baldor 1453

Baldor 1453 is a buffer motor rated 7.5 HP, 3000/3600 rpm, 3 phase 208/230/460 V 50/60 Hz, 3735M, with TENV enclosure.

BaldorMFR # 1453SKU # YLSTW7ARKYQI35F

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output7.5

Number of poles2

Have questions?Chat on WhatsApp

About This Product

Baldor 1453 is a buffer motor rated 7.5 HP, 3000/3600 rpm, 3 phase 208/230/460 V 50/60 Hz, 3735M, with TENV enclosure.

Baldor 1453

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output7.5

Number of poles2

Output at frequency7.500 HP @ 50 HZ · 7.500 HP @ 60 HZ

Phase3

Product styleGRINDER

Shaft diameter1.250 IN

Speed (rpm)3000 rpm · 3600 rpm

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage (V)208 V · 230 V · 460 V

Voltage at frequency230.0 V @ 50 HZ · 208.0 V @ 60 HZ · 208.0 V @ 50 HZ · 460.0 V @ 60 HZ · 460.0 V @ 50 HZ · 230.0 V @ 60 HZ

Wheel bore size1.2500 IN

Wheel diameter14.0000 IN

Wheel face3.0000 IN

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Current at voltage10.000 A @ 230.0 V · 10.000 A @ 460.0 V · 20.000 A @ 208.0 V · 20.000 A @ 230.0 V

Design codeB

Duty ratingCONT

Insulation classB

Motor lead quantity/wire size9 @ 14 AWG

Motor type3735M

Mounting arrangementF1

Product familyBuffer

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationPhase Seq-Opp Std Rot (CWODE)

Speed codeSingle Speed

Starting methodDirect on line

Winding thermal 1None

Winding thermal 2None

UPC781568127612

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·63 KB·English

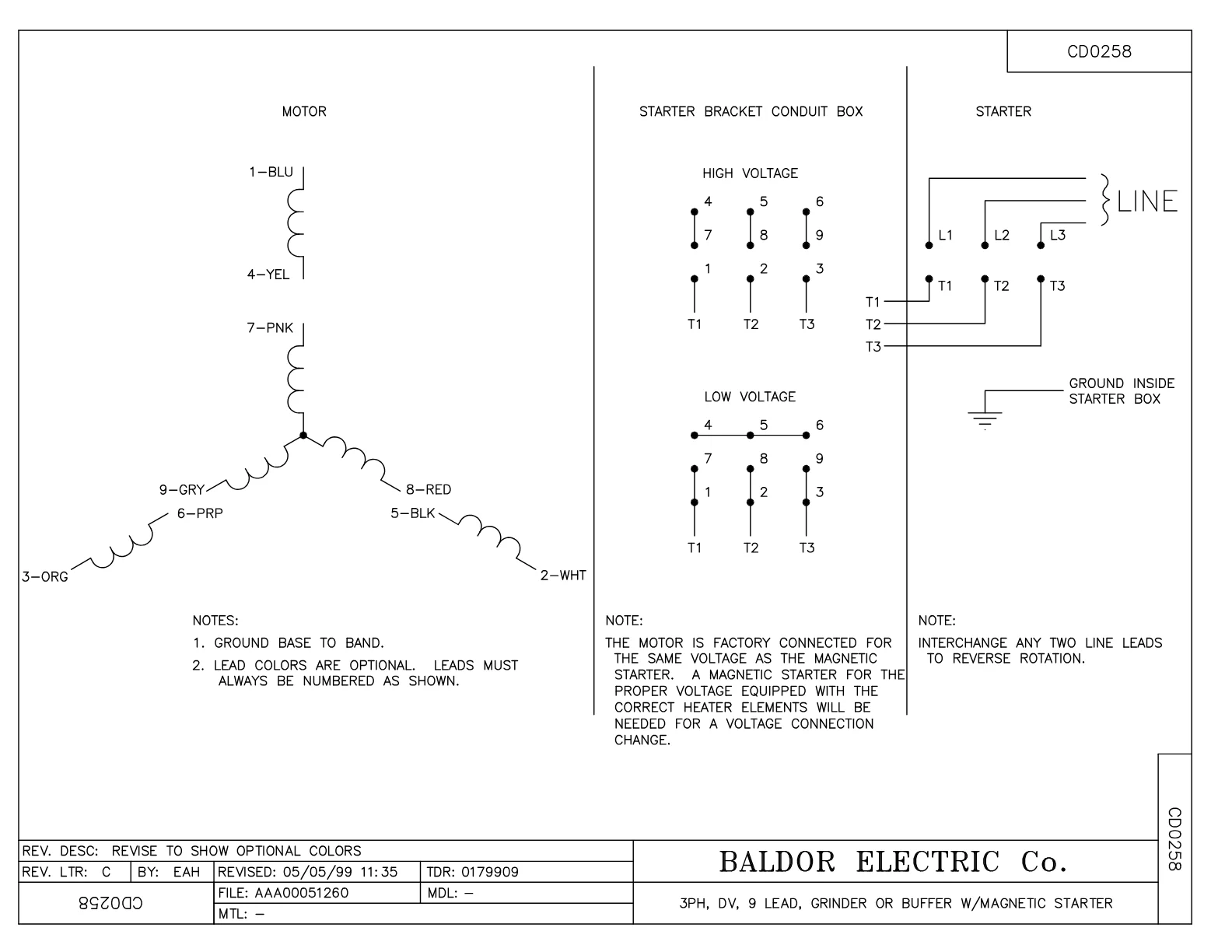

Wiring DiagramWiring DiagramPDF·48 KB·English

DatasheetDatasheetPDF·481 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor 1453 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
XZ2007A62SP	1 1/4-7 NUT LH HEX (NC)	1 pcs	18 motors
XZ2007A12SP	1 1/4-7 NUT RH HX(NC)(F/S	1 pcs	18 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor 1453 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
