Baldor 1410W

Baldor 1410W is a 35M 4-pole grinder motor rated 5 HP, 1500/1800 rpm, 3 phase 208/230/460 V 50/60 Hz, with TENV enclosure.

BaldorMFR # 1410WSKU # YLSODIMZ36DYUBK

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output5

Number of poles4

Have questions?Chat on WhatsApp

About This Product

Baldor 1410W is a 35M 4-pole grinder motor rated 5 HP, 1500/1800 rpm, 3 phase 208/230/460 V 50/60 Hz, with TENV enclosure.

Baldor 1410W

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output5

Number of poles4

Output at frequency5.000 HP @ 60 HZ · 5.000 HP @ 50 HZ

Phase3

Product styleGRINDER

Shaft diameter1.250 IN

Speed (rpm)1500 rpm · 1800 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)208 V · 230 V · 460 V

Voltage at frequency460.0 V @ 50 HZ · 230.0 V @ 60 HZ · 230.0 V @ 50 HZ · 208.0 V @ 60 HZ · 208.0 V @ 50 HZ · 460.0 V @ 60 HZ

Wheel bore size1.2500 IN

Wheel diameter14.0000 IN

Wheel face3.0000 IN

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Base indicatorRigid

Current at voltage12.700 A @ 208.0 V · 6.350 A @ 230.0 V

Design codeB

Duty ratingCONT

Insulation classB

KVA codeH

Motor lead quantity/wire size9 @ 14 AWG

Motor type3736M

Mounting arrangementF1

Product familyGrinder

Service factor1.00

Shaft extension locationDouble Shaft

Shaft rotationPhase Seq-Opp Std Rot (CWODE)

Speed codeSingle Speed

Starting methodDirect on line

Winding thermal 1None

Winding thermal 2None

UPC781568127261

Nameplate

Catalog number1410W

Horsepower (HP)5

Voltage (V)460

Phase3

Current (A)6.35

Frequency (Hz)50//60

Speed (rpm)1500//1800

Specification numberG14-116F-0119G1

Nameplate numberNP3361L

Performance

General characteristics· 460 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)2.06 Ω

Start configurationDOL

Breakdown torque53.78 lb-ft

Pull-up torque22.93 lb-ft

Locked-rotor torque31.17 lb-ft

Starting current (A)41.65 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	6	41	63	75	82	85	87
Efficiency %	0	82.7	88.7	89.9	90.1	90	89.4
Speed rpm	1799	1791	1784	1776	1768	1759	1749
Line amps A	3.16	3.49	4.18	5.18	6.35	7.63	9.02
Power W	153	1134	2100	3105	4144	5192	6272
Torque lb-ft	0	3.69	7.35	11.07	14.88	18.71	22.58

Documents & CAD

For this product 5

Dimension DrawingDimension SheetPDF·133 KB·English

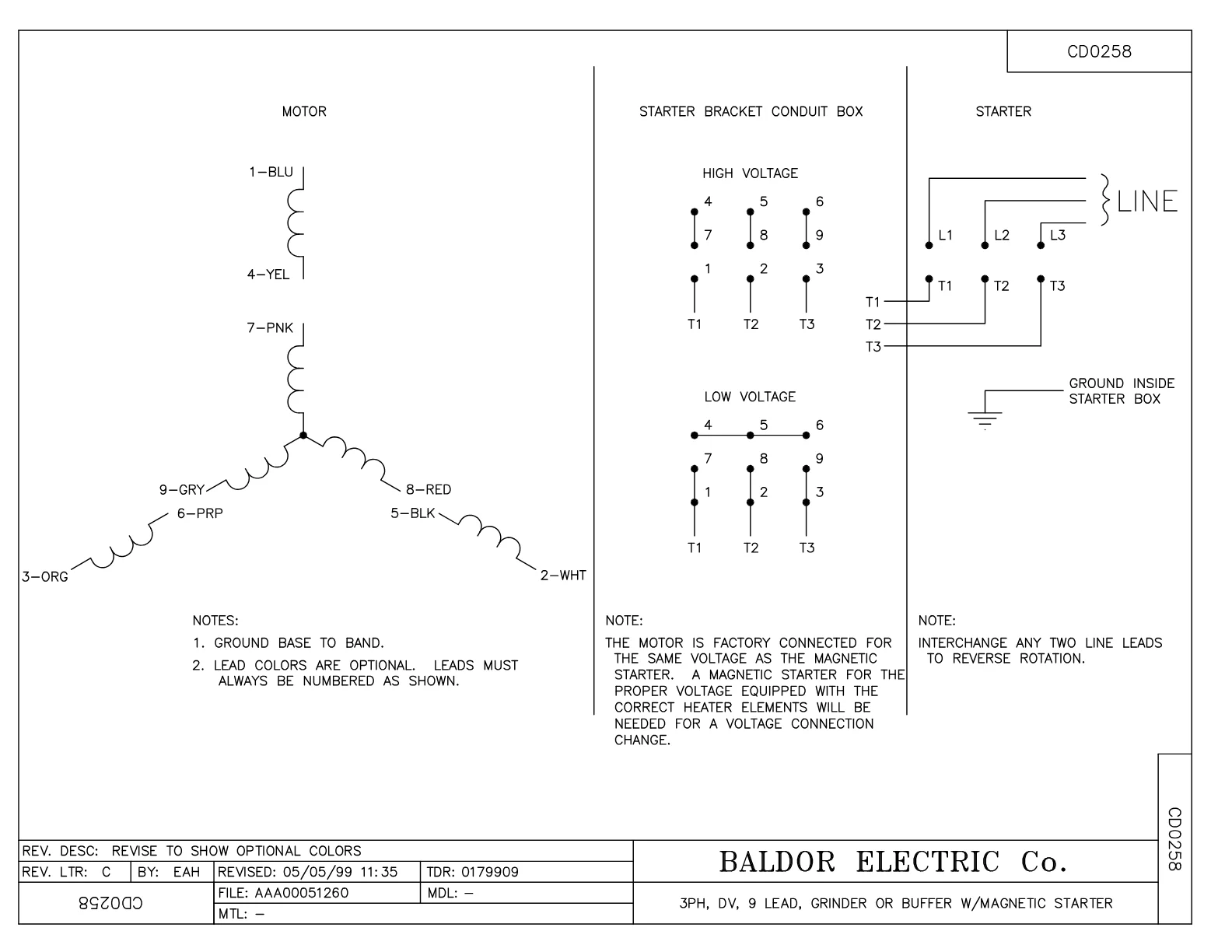

Wiring DiagramWiring DiagramPDF·48 KB·English

Wiring DiagramWiring DiagramPDF·21 KB·English

DatasheetDatasheetPDF·656 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 7

3D Model

Spare Parts 10

The genuine spare parts used for servicing and repairing the Baldor 1410W motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
G2AP1002A01SP	TOOL REST, MACH (G) MACHINED 6 ON	2 pcs	10 motors
HA6049A01SP	SUPPORT, TOOL REST, MACH	2 pcs	10 motors
XZ2007A62SP	1 1/4-7 NUT LH HEX (NC)	1 pcs	18 motors
XZ2007A12SP	1 1/4-7 NUT RH HX(NC)(F/S	1 pcs	18 motors
GA9	EYESHIELD ASSY	1 pcs	39 motors
MN909	EYESHIELD MTG INSTR. FOR GA9, GA10 & GA1	1 pcs	17 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN903	INSTR MANUAL FOR GRINDERS 9/03	1 pcs	37 motors

Accessories 8

Genuine accessories that can be used with the Baldor 1410W motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA9	PAIR LIGHTED EYESHIELDS	39 motors
GA9-1	SINGLE LIGHTED EYESHIELD	39 motors
GA9S	PAIR EYESHIELDS W/ ON-OFF SWITCH	39 motors
GA11	PAIR EYESHIELDS	39 motors
B147	14" 30 GRIT GRINDING WHEEL	6 motors
B148	14" 46 GRIT GRINDING WHEEL	6 motors
DC14-3	DUST CONTROL FOR 14 IN GRINDER	6 motors
