Baldor 1217W

Baldor 1217W is a 2 HP, 1800 rpm, single-phase 115/230 V 60 Hz, 3634L, TENV enclosed grinder motor.

BaldorMFR # 1217WSKU # YLSJR8QKL68OJZP

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output2

Number of poles4

Have questions?Chat on WhatsApp

About This Product

Baldor 1217W is a 2 HP, 1800 rpm, single-phase 115/230 V 60 Hz, 3634L, TENV enclosed grinder motor.

Baldor 1217W

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Nameplate output2

Number of poles4

Output at frequency2.000 HP @ 60 HZ

Phase1

Shaft diameter1.250 IN

Speed (rpm)1800 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)115 V · 230 V

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Agency approvalsUR

Ambient temperature (°C)40 °C

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage10.000 A @ 230.0 V · 20.000 A @ 115.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

Insulation classB

Motor lead quantity/wire size4 @ 16 AWG

Motor type3634L

Mounting arrangementF1

Overall length30.70 IN

Product familyGrinder

Service factor1.00

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127230

Nameplate

Catalog number1217W

Horsepower (HP)2

Voltage (V)115/230

Phase1

Current (A)20/10

Frequency (Hz)60

Speed (rpm)1800

Specification numberG12-119B-0002

Nameplate numberNP3361L

Performance

General characteristics· 230 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)0.997 Ω / 0.665 Ohms B Ph

Start configurationDOL

Breakdown torque14 lb-ft

Pull-up torque11.8 lb-ft

Locked-rotor torque14.2 lb-ft

Starting current (A)58.6 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	25	49	64	73	79	82	86
Efficiency %	0	50.6	64.5	68.3	68.7	66.4	64.6
Speed rpm	1793	1782	1770	1756	1739	1720	1696
Line amps A	6.04	6.7	7.99	9.76	11.9	14.6	17
Power W	350	750	1170	1643	2157	2760	3360
Torque lb-ft	0	1.5	3	4.5	6	7.5	9

Documents & CAD

For this product 6

Dimension DrawingDimension SheetPDF·120 KB·English

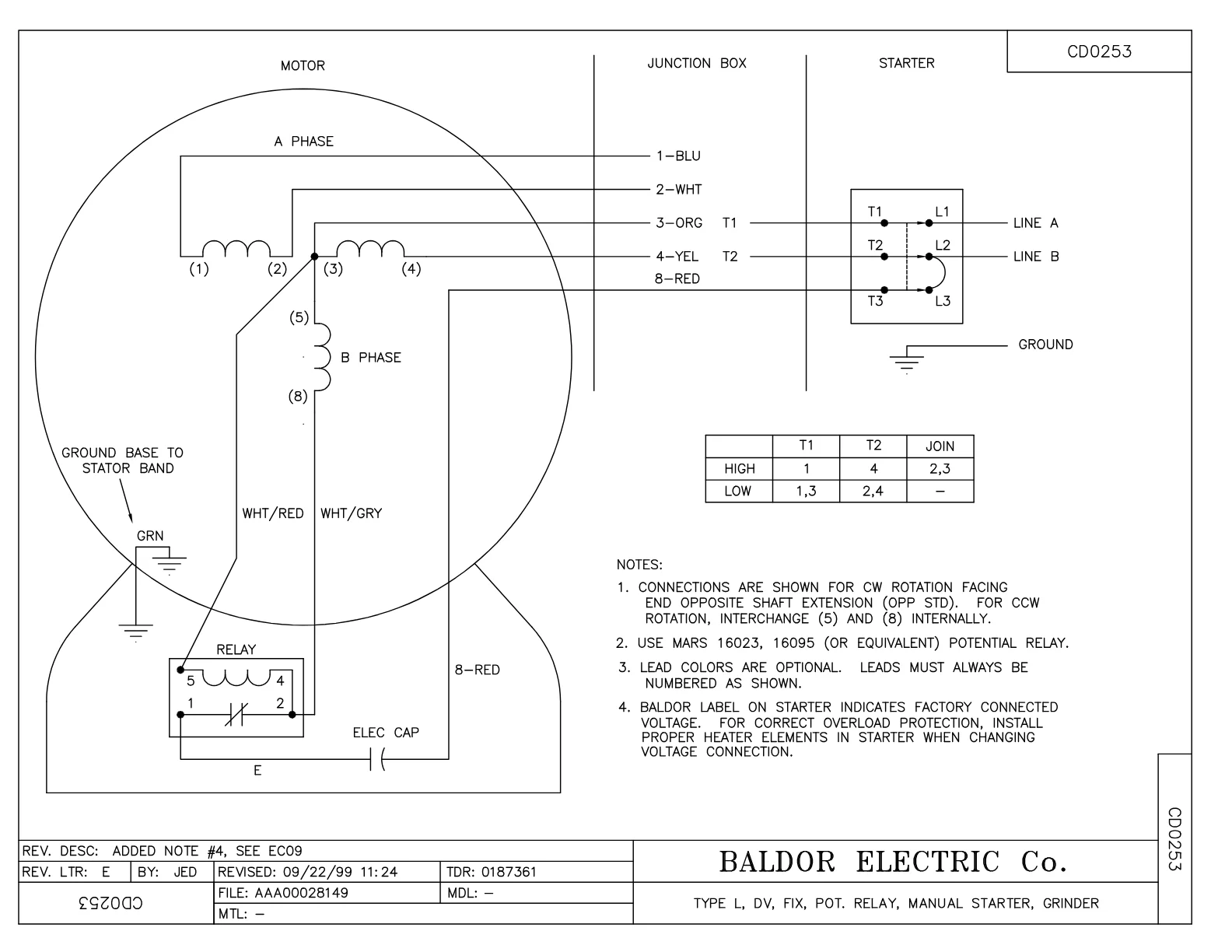

Wiring DiagramWiring DiagramPDF·52 KB·English

Wiring DiagramWiring DiagramPDF·21 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·298 KB

DatasheetDatasheetPDF·646 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 2

2D Drawing

Spare Parts 11

The genuine spare parts used for servicing and repairing the Baldor 1217W motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
G2AP1002A01SP	TOOL REST, MACH (G) MACHINED 6 ON	2 pcs	10 motors
HA6049A01SP	SUPPORT, TOOL REST, MACH	2 pcs	10 motors
XZ2007A62SP	1 1/4-7 NUT LH HEX (NC)	1 pcs	18 motors
XZ2007A12SP	1 1/4-7 NUT RH HX(NC)(F/S	1 pcs	18 motors
GA9	EYESHIELD ASSY	1 pcs	39 motors
MN909	EYESHIELD MTG INSTR. FOR GA9, GA10 & GA1	1 pcs	17 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN903	INSTR MANUAL FOR GRINDERS 9/03	1 pcs	37 motors

Accessories 12

Genuine accessories that can be used with the Baldor 1217W motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA9	PAIR LIGHTED EYESHIELDS	39 motors
GA9-1	SINGLE LIGHTED EYESHIELD	39 motors
GA9S	PAIR EYESHIELDS W/ ON-OFF SWITCH	39 motors
GA11	PAIR EYESHIELDS	39 motors
B125	12" 30 GRIT GRINDING WHEEL	4 motors
B126	12' 46 GRIT GRINDING WHEEL	4 motors
BQ1-015-CC	1PH Brake, NEMA 1,110-125 VAC, 50/60Hz	33 motors
BQ1-015-CP	1PH Brake, Panel 110-125 VAC, 50/60 Hz	34 motors
BQ2-015-CC	1PH Brake,NEMA 1 208-230 VAC,50/60Hz	13 motors
BQ2-015-CP	1PH Brake, Panel 208-230 VAC, 50/60 Hz	13 motors
DC12	DUST CONTROL UNIT	4 motors
