Baldor 1216W

Baldor 1216W is a 3 HP, 1500/1800 rpm, three-phase 208-230/460 V 50/60 Hz, 3628M, TENV enclosed grinder motor.

BaldorMFR # 1216WSKU # YLSYYCMAVSB7GCK

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output3

Number of poles4

Have questions?Chat on WhatsApp

About This Product

Baldor 1216W is a 3 HP, 1500/1800 rpm, three-phase 208-230/460 V 50/60 Hz, 3628M, TENV enclosed grinder motor.

Baldor 1216W

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame materialSteel

Frequency (Hz)60.00 Hz · 50.00 Hz

Motor letter typeThree Phase

Nameplate output3

Number of poles4

Output at frequency3.000 HP @ 50 HZ · 3.000 HP @ 60 HZ

Phase3

Shaft diameter1.250 IN

Speed (rpm)1500 rpm · 1800 rpm

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage (V)208 V · 230 V · 460 V

Voltage at frequency230.0 V @ 50 HZ · 208.0 V @ 50 HZ · 208.0 V @ 60 HZ · 460.0 V @ 60 HZ · 460.0 V @ 50 HZ · 230.0 V @ 60 HZ

Wheel bore size1.2500 IN

Wheel diameter12.0000 IN

Wheel face2.0000 IN

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Base indicatorRigid

Current at voltage3.700 A @ 460.0 V · 7.400 A @ 230.0 V · 8.000 A @ 208.0 V

Duty ratingCONT

Insulation classB

KVA codeG

Motor lead quantity/wire size9 @ 16 AWG

Motor type3628M

Mounting arrangementF1

Product familyGrinder

Service factor1.00

Shaft rotationPhase Seq-Opp Std Rot (CWODE)

Speed codeSingle Speed

Starting methodDirect on line

Thermal device - windingNone

Winding thermal 1None

Winding thermal 2None

UPC781568127223

Nameplate

Catalog number1216W

Horsepower (HP)3

Voltage (V)208-230/460

Phase3

Current (A)8-7.4/3.7

Frequency (Hz)50//60

Speed (rpm)1500//1800

Specification numberG12-118C-0004

Nameplate numberNP3412L

Documents & CAD

For this product 3

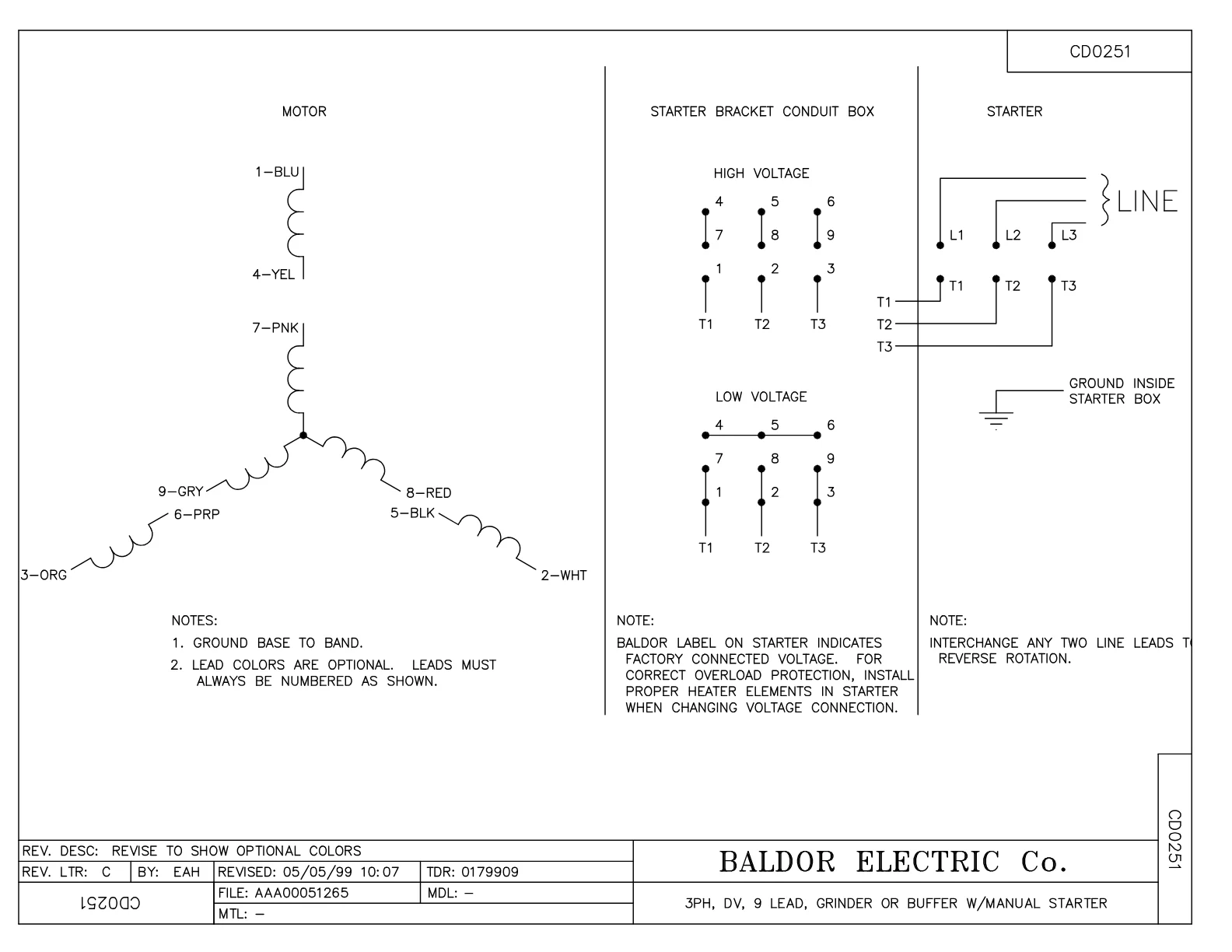

Wiring DiagramWiring DiagramPDF·46 KB·English

Wiring DiagramWiring DiagramPDF·21 KB·English

DatasheetDatasheetPDF·557 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·119 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·298 KB

CAD Files 2

2D Drawing

Spare Parts 11

The genuine spare parts used for servicing and repairing the Baldor 1216W motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
G2AP1002A01SP	TOOL REST, MACH (G) MACHINED 6 ON	2 pcs	10 motors
HA6049A01SP	SUPPORT, TOOL REST, MACH	2 pcs	10 motors
XZ2007A62SP	1 1/4-7 NUT LH HEX (NC)	1 pcs	18 motors
XZ2007A12SP	1 1/4-7 NUT RH HX(NC)(F/S	1 pcs	18 motors
GA9	EYESHIELD ASSY	1 pcs	39 motors
HA6094A01SP	CLAMP FOR SUPPORT ARM X PLATED	2 pcs	13 motors
MN909	EYESHIELD MTG INSTR. FOR GA9, GA10 & GA1	1 pcs	17 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN903	INSTR MANUAL FOR GRINDERS 9/03	1 pcs	37 motors

Accessories 9

Genuine accessories that can be used with the Baldor 1216W motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GA20	PEDESTAL INDUSTRIAL, CAST IRON 8"-14"	53 motors
GA9	PAIR LIGHTED EYESHIELDS	39 motors
GA9-1	SINGLE LIGHTED EYESHIELD	39 motors
GA9S	PAIR EYESHIELDS W/ ON-OFF SWITCH	39 motors
GA11	PAIR EYESHIELDS	39 motors
B125	12" 30 GRIT GRINDING WHEEL	4 motors
B126	12' 46 GRIT GRINDING WHEEL	4 motors
DC12	DUST CONTROL UNIT	4 motors
DC12-3	DUST CONTROL UNIT	3 motors
