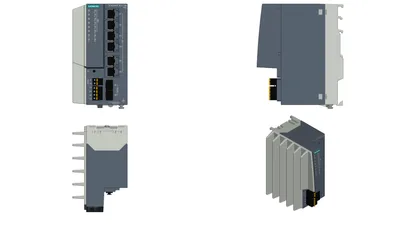

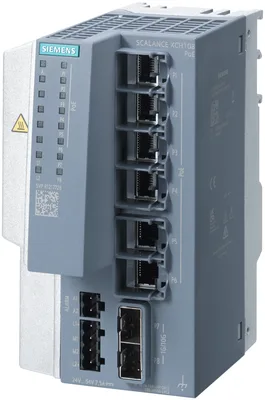

Siemens 6GK5108-2RS00-2FC2
SCALANCE XCH108PoE (6x100/1000 Mbps RJ45, PoE, 2x 1000/10000 Mbps SFP) unmanaged IE switch up to 120 W PoE power on 6 ports, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply, with painted printed circuit boards, manual available as a download .
product brand nameSCALANCE
product type designationXCH108PoE (G, 2x SFP)
transfer rate10, 100, 1000 Mbit/s
with securing collar / with PoE6
for SFP2
for signaling contact1
Ürün Hakkında
SCALANCE XCH108PoE (6x100/1000 Mbps RJ45, PoE, 2x 1000/10000 Mbps SFP) unmanaged IE switch up to 120 W PoE power on 6 ports, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply, with painted printed circuit boards, manual available as a download .
Siemens 6GK5108-2RS00-2FC2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXCH108PoE (G, 2x SFP)
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment6; RJ45
with securing collarPoE ports according to IEEE802.3at (30 W)
with securing collar / with PoE6
for SFP2
interfaces / for communication / plug-in
for SFP+2; SFPs possible with 1000 Mbps veya 10,000 Mbps;
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value12 W
supply voltage / 1 / voltage range19,2... 55
consumed current / 1 / maximum7,5 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage2,5 A / 125 V
type of voltage / 2 / of the supply voltageDC
supply voltage / 2 / rated value54 V
power loss [W] / 2 / rated value10 W
supply voltage / 2 / voltage range19,2... 55
consumed current / 2 / maximum2,5 A
ambient conditions
during operation-40... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

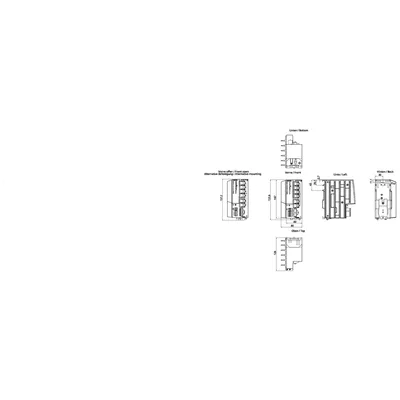

design, dimensions and weights
designcompact
width80 mm
height147 mm
depth125 mm
net weight0,87 kg
material / of the enclosurePolycarbonate (PC-GF10)
35 mm DIN-rail mountingVar
wall mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
product features, product functions, product components / general
number of automatically learnable MAC addresses2048
product functions / management, configuration, engineering
multiport mirroringYok
CoSVar
switch-managedYok
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
standards, specifications, approvals
CE markingVar
UKCA markingVar
Regulatory Compliance Mark (RCM)Var
standards, specifications, approvals / hazardous environments
CCC / for hazardous zone according to GB standardVar
standards, specifications, approvals / other
railway application in accordance with EN 50121-4Var
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Var
Chinese Classification Society (CCS)Var
Det Norske Veritas (DNV)Var
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
Polski Rejestr Statkow (PRS)Var
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total351,9 kg
during manufacturing23,6 kg
during operation328 kg
after end of life0,3 kg
product functions / general
laser protection classLED Class 1
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing23,6 kg
global warming potential [CO2 eq] / during operation328 kg
global warming potential [CO2 eq] / after end of life0,3 kg
global warming potential [CO2 eq] / total351,9 kg
Aksesuarlar 120
Siemens 6GK5108-2RS00-2FC2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5980-0BB10-0AA5 | Aksesuar | |
| 6GK5980-1DB10-0AA5 | Aksesuar | |
| 6GK5980-4AA00-0AA5 | Aksesuar | |
| 6GK5991-1AD00-8AA0 | Aksesuar | |
| 6GK5991-1AD00-8AC0 | Aksesuar | |
| 6GK5991-1AE00-8AA0 | Aksesuar | |
| 6GK5991-1AE30-8AA0 | Aksesuar | |
| 6GK5991-1AF00-8AA0 | Aksesuar | |
| 6GK5991-1AF00-8AC0 | Aksesuar | |
| 6GK5991-1AD00-8FA0 | Aksesuar | |
| 6GK5991-1AF00-8FA0 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK5992-1AG00-8AA0 | Aksesuar | |
| 6GK5992-1AL00-8AA0 | Aksesuar | |
| 6GK5992-1AL00-8FA0 | Aksesuar | |
| 6GK5992-1AL00-8RA0 | Aksesuar | |
| 6GK5992-1AL00-8TA0 | Aksesuar | |
| 6GK5992-1AM00-8AA0 | Aksesuar | |
| 6GK5992-1AM00-8AC0 | Aksesuar | |
| 6GK5992-1AM00-8FA0 | Aksesuar | |
| 6GK5992-1AM00-8RA0 | Aksesuar | |
| 6GK5992-1AM00-8TA0 | Aksesuar | |
| 6GK5992-1AM30-8AA0 | Aksesuar | |
| 6GK5992-1AN00-8AA0 | Aksesuar | |
| 6GK5992-1AP00-8AA0 | Aksesuar | |
| 6GK5992-1AQ00-8AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UN30 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6GK1901-1BB12-2AB0 | Aksesuar | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-2A | Aksesuar · Cables · network cable electrical | |
| 6XV1878-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1843-5EH10-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0CA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH20-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH30-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH30-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AH10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AH20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AH30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AH50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN15 | Aksesuar · Cables · network cable optical |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
İlgili Aramalar
Siemens 6GK5108-2RS00-2FC2 fiyatSiemens 6GK5108-2RS00-2FC2 teklif alSiemens 6GK5108-2RS00-2FC2 satın al6GK5108-2RS00-2FC2 fiyat6GK5108-2RS00-2FC2 stok durumuSiemens yedek parçaSiemens 6GK5108-2RS00-2FC2 muadilSiemens 6GK5108-2RS00-2FC2 teknik özellikler
