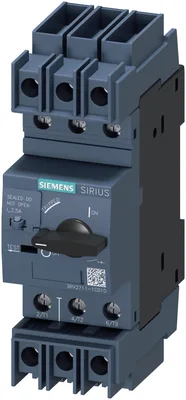

Siemens 3RV2711-1CD10
circuit breaker frame size S00 for system protection with approval circuit breaker UL 489, CSA C22.2 no. 5-02 thermal overload release 2.5 A short-circuit release 33 A screw terminal standard switching capacity
product brand nameSIRIUS
product designationCircuit breaker
product type designation3RV2
size of the circuit-breakerS00
product extension auxiliary switchVar
at AC in hot operating state7,25 W
Ürün Hakkında
circuit breaker frame size S00 for system protection with approval circuit breaker UL 489, CSA C22.2 no. 5-02 thermal overload release 2.5 A short-circuit release 33 A screw terminal standard switching capacity
Siemens 3RV2711-1CD10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor system protection according to UL 489/CSA C22.2 Yok. 5
product type designation3RV2
General technical data
Product equipment of circuit breaker for motor protection complete unit with protection deviceVar
size of the circuit-breakerS00
product function disconnector functionalityVar
product extension auxiliary switchVar
at AC in hot operating state7,25 W
at AC in hot operating state per pole2,4 W
type of calculation of power loss current-dependentquadratic
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
in networks with ungrounded star point between main and auxiliary circuit400 V
in networks with grounded star point between main and auxiliary circuit400 V
on the front according to IEC 60529IP20
on the frontIP20
of the terminalIP00
shock resistance according to IEC 60068-2-2725 g / 11 ms (rectangular impulse ve sine pulse)
of the main contacts typical100.000
of auxiliary contacts typical100.000
electrical endurance (operating cycles) typical100.000
reference code according to IEC 81346-2Q
continuous current rated value2,5 A
Substance Prohibitance (day/month/year)10/01/2009
Net Weight463,08 g
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-20... +60 °C
during storage-50... +80 °C
during transport-50... +80 °C
temperature compensation-20... +60 °C
relative humidity during operation10... 95 %
Main circuit
number of poles for main current circuit3
type of voltage for main current circuitAC
rated value690 V
rated value20... 690 V
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
operating frequency rated value50... 60 Hz
operational current rated value2,5 A
at AC-3 at 400 V rated value2,5 A
at AC-3e at 400 V rated value2,5 A
— at 230 V rated value0,4 kW
— at 400 V rated value0,8 kW
— at 500 V rated value1,1 kW
— at 690 V rated value1,5 kW
— at 230 V rated value0,4 kW
— at 400 V rated value0,8 kW
— at 500 V rated value1,1 kW
— at 690 V rated value1,5 kW
at AC-3 maximum15 1/h
at AC-3e maximum15 1/h
Auxiliary circuit
type of voltage for auxiliary and control circuitAC/DC
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
Protective and monitoring functions
ground fault detectionYok
phase failure detectionYok
design of the overload releasethermal
protection function thermal overload protection (ANSI 49)Var
at AC at 240 V rated value100 kA
at AC at 400 V rated value100 kA
at AC at 500 V rated value100 kA
at AC at 690 V rated value10 kA
at 480 AC Y/277 V according to UL 489 rated value65 kA
at 240 V rated value100 kA
at 400 V rated value100 kA
at 500 V rated value100 kA
at 690 V rated value10 kA
response value current of instantaneous short-circuit trip unit33 A
Short-circuit protection
product function short circuit protectionVar
design of the short-circuit tripmagnetic
at 400 VgG 25 A
at 500 VgG 25 A
at 690 VgG 20 A
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingVar
height144 mm
width45 mm
depth97 mm
— downwards30 mm
— upwards30 mm
— at the side30 mm
— downwards30 mm
— upwards30 mm
— at the side30 mm
— downwards30 mm
— upwards30 mm
— at the side30 mm
— downwards30 mm
— upwards30 mm
— at the side30 mm
— downwards70 mm
— upwards70 mm
— backwards0 mm
— at the side30 mm
— forwards0 mm
— downwards70 mm
— upwards70 mm
— backwards0 mm
— at the side30 mm
— forwards0 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
for main current circuitscrew-type terminals
arrangement of electrical connectors for main current circuitTop ve bottom
— solid or stranded1... 10 mm², maks. 2x 10 mm²
— finely stranded with core end processing1... 16 mm², maks. 6 + 16 mm²
for AWG cables for main contacts2x (14... 10)
solid or stranded1... 10 mm²
finely stranded with core end processing1... 16 mm²
AWG number as coded connectable conductor cross section for main contacts14... 10
for main contacts with screw-type terminals2,5... 3 N·m
design of screwdriver shaftDiameter 5 to 6 mm
size of the screwdriver tipPozidriv size 2
for main contactsM4
Safety related data
product function suitable for safety functionVar
safety-related switching onYok
safety-related switching OFFVar
service life maximum10 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 319205.000
failure rate [FIT] with low demand rate according to SN 3192050 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
for proof test interval or service life according to IEC 6150810 a
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Display
display version for switching statusHandle
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing1,98 kg
global warming potential [CO2 eq] / during sales0,134 kg
global warming potential [CO2 eq] / during operation72,7 kg
global warming potential [CO2 eq] / after end of life-0.116 kg
global warming potential [CO2 eq] / total74,698 kg
Aksesuarlar 78
Siemens 3RV2711-1CD10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RV2901-1E | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1D | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1F | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1G | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-0H | Aksesuar · Auxiliary switch · cover caps | |
| 3RV2901-1A | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1B | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1C | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1J | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2922-1CB0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AM1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AF0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AB4 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AB0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AS0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1DV0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DP0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DS0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DB0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DF0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV1915-1AB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-1BB | Aksesuar · Infeed systems · busbars | |
| 3RV2925-5AB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2915-5B | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2925-5EB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2926-3B | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-3C | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1L | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1C | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1B | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1K | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 8US1251-5DS10 | Aksesuar | |
| 8US1251-5DT11 | Aksesuar | |
| 8US1251-5DS11 | Aksesuar | |
| 3RV2928-0B | Aksesuar · Push-in lugs · push-in lugs | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB60 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RV1915-3CB | Aksesuar · Infeed systems · busbars | |
| 3RV1935-3B | Aksesuar · Infeed systems · busbars | |
| 3RV1935-3A | Aksesuar · Infeed systems · busbars | |
| 3RV1935-1C | Aksesuar · Infeed systems · busbars | |
| 3RV1922-1CV0 | Aksesuar | |
| 3RV1935-1A | Aksesuar · Infeed systems · busbars | |
| 3RV1922-1CV1 | Aksesuar | |
| 3RV1935-3C | Aksesuar · Infeed systems · busbars | |
| 3RV1922-1CP0 | Aksesuar | |
| 3RV1935-1B | Aksesuar · Infeed systems · busbars | |
| 3RV1915-3AB | Aksesuar · Infeed systems · busbars | |
| 3RV1902-1AF0 | Aksesuar | |
| 3RV1915-2CB | Aksesuar · Infeed systems · busbars | |
| 3RV1902-1AB0 | Aksesuar | |
| 3RV1902-1AB4 | Aksesuar | |
| 3RV1902-1AM1 | Aksesuar | |
| 3RV1902-1AN0 | Aksesuar | |
| 3RV1902-1AP0 | Aksesuar | |
| 3RV1902-1AQ0 | Aksesuar | |
| 3RV1902-1AS0 | Aksesuar | |
| 3RV1902-1AV0 | Aksesuar | |
| 3RV1902-1AV1 | Aksesuar | |
| 3RV1915-2DB | Aksesuar · Infeed systems · busbars | |
| 3RV1902-1DB0 | Aksesuar | |
| 3RV1902-1DP0 | Aksesuar | |
| 3RV1902-1DS0 | Aksesuar | |
| 3RV1902-1DV0 | Aksesuar | |
| 3RV1912-1CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1912-1CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1912-1CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1915-1CB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-1DB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-2AB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-2BB | Aksesuar · Infeed systems · busbars | |
| 3RV1902-1DF0 | Aksesuar |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
İlgili Aramalar
Siemens 3RV2711-1CD10 fiyatSiemens 3RV2711-1CD10 teklif alSiemens 3RV2711-1CD10 satın al3RV2711-1CD10 fiyat3RV2711-1CD10 stok durumuSiemens yedek parçaSiemens 3RV2711-1CD10 muadilSiemens 3RV2711-1CD10 teknik özellikler
