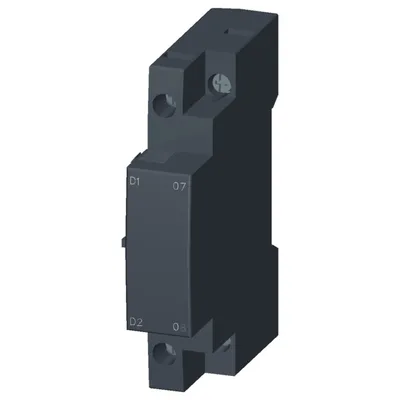

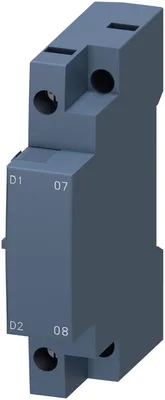

Siemens 3RV2922-1CV0
undervoltage release 400 V AC/50 Hz with leading auxiliary contact 2 NO with screw terminal for 3RV2 motor starter protector/circuit breaker
product brand nameSIRIUS
product categoryAuxiliary release
product designationundervoltage release
design of the productwith 2 auxiliary contacts
product type designation3RV29
suitability for usemotor circuit breaker
Ürün Hakkında
undervoltage release 400 V AC/50 Hz with leading auxiliary contact 2 NO with screw terminal for 3RV2 motor starter protector/circuit breaker
Siemens 3RV2922-1CV0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryAuxiliary release
product designationundervoltage release
design of the productwith 2 auxiliary contacts
product type designation3RV29
suitability for usemotor circuit breaker
General technical data
certificate of suitabilityCE / UL / CSA
size of the circuit-breakerS00, S0, S2, S3
closing active power at AC maximum13 W
active power at AC in operation maximum2,4 W
apparent power at AC in operation maximum7,2 V·A
rated value690 V
with degree of pollution 3 at AC rated value690 V
degree of pollution3
protection class IP on the front according to IEC 60529IP20
break time maximum20 ms
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750F
reference code according to EN 61346-2F
Substance Prohibitance (day/month/year)05/01/2012
Net Weight142,8 g
type of voltage of the control supply voltageAC
at 50 Hz rated value400 V
control supply voltage frequency 150... 60 Hz
number of NC contacts for auxiliary contacts instantaneous contact0
instantaneous contact0
leading contact2
number of CO contacts of auxiliary contacts instantaneous contact0
Ambient conditions
during operation-20... +60 °C
during storage-50... +80 °C
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Short-circuit protection
design of short-circuit protectionfuse

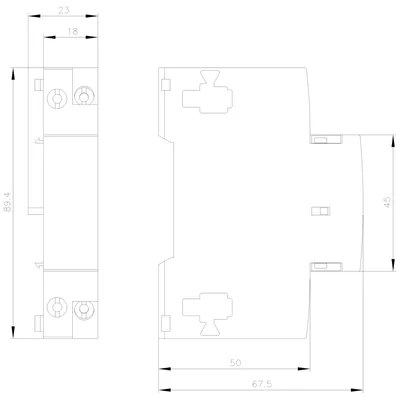

Installation/ mounting/ dimensions
fastening methodsnap-on mounting
height90 mm
width19 mm
depth68 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
