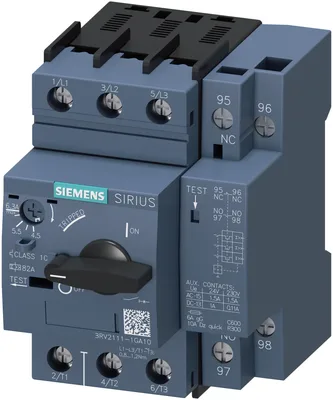

Siemens 3RV2111-1GA10
circuit breaker frame size S00 for motor protection, Class 10 with overload relay function thermal release 4.5...6.3 A short-circuit release 82 A screw terminal standard switching capacity
product brand nameSIRIUS
product designationCircuit breaker
product type designation3RV2
size of the circuit-breakerS00
product extension auxiliary switchVar
at AC in hot operating state7,25 W
Ürün Hakkında
circuit breaker frame size S00 for motor protection, Class 10 with overload relay function thermal release 4.5...6.3 A short-circuit release 82 A screw terminal standard switching capacity
Siemens 3RV2111-1GA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection with overload relay function
product type designation3RV2
General technical data
Product equipment of circuit breaker for motor protection complete unit with protection deviceVar
size of the circuit-breakerS00
size of contactor can be combined company-specificS00, S0
product function disconnector functionalityVar
product extension auxiliary switchVar
at AC in hot operating state7,25 W
at AC in hot operating state per pole2,4 W
type of calculation of power loss current-dependentquadratic
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
in networks with ungrounded star point between main and auxiliary circuit400 V
in networks with grounded star point between main and auxiliary circuit400 V
on the front according to IEC 60529IP20
on the frontIP20
of the terminalIP20
shock resistance according to IEC 60068-2-2725g / 11 ms
of the main contacts typical100.000
of auxiliary contacts typical100.000
electrical endurance (operating cycles) typical100.000
reference code according to IEC 81346-2Q
continuous current rated value6,3 A
Substance Prohibitance (day/month/year)10/01/2009
Net Weight390,58 g
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-20... +60 °C
during storage-50... +80 °C
during transport-50... +80 °C
temperature compensation-20... +60 °C
relative humidity during operation10... 95 %
Main circuit
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release4,5... 6,3 A
type of voltage for main current circuitAC
rated value690 V
rated value20... 690 V
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
operating frequency rated value50... 60 Hz
operational current rated value6,3 A
at AC-3 at 400 V rated value6,3 A
at AC-3e at 400 V rated value6,3 A
— at 230 V rated value1,5 kW
— at 400 V rated value2,2 kW
— at 500 V rated value3 kW
— at 690 V rated value4 kW
— at 230 V rated value1,5 kW
— at 400 V rated value2,2 kW
— at 500 V rated value3 kW
— at 690 V rated value4 kW
at AC-3 maximum15 1/h
at AC-3e maximum15 1/h
Auxiliary circuit
design of the auxiliary switchlaterally
type of voltage for auxiliary and control circuitAC/DC
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
at 24 V1,5 A
at 230 V1,5 A
at 24 V1 A
Protective and monitoring functions
ground fault detectionYok
phase failure detectionVar
trip classCLASS 10
design of the overload releasethermal
protection function thermal overload protection (ANSI 49)Var
at AC at 240 V rated value100 kA
at AC at 400 V rated value100 kA
at AC at 500 V rated value100 kA
at AC at 690 V rated value6 kA
at 240 V rated value100 kA
at 400 V rated value100 kA
at 500 V rated value100 kA
at 690 V rated value4 kA
response value current of instantaneous short-circuit trip unit82 A
UL/CSA ratings
at 480 V rated value6,3 A
at 600 V rated value6,3 A
— at 110/120 V rated value0,25 hp
— at 230 V rated value0,5 hp
— at 200/208 V rated value1 hp
— at 220/230 V rated value1,5 hp
— at 460/480 V rated value3 hp
— at 575/600 V rated value5 hp
contact rating of auxiliary contacts according to ULC600 / R300
UL File Number (CCN)E47705 (NLRV, NLRV7)
Short-circuit protection
product function short circuit protectionVar
design of the short-circuit tripmagnetic
for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 6 A, quick: 10 A
at 400 VgL/gG 50 A
at 500 VgL/gG 40 A
at 690 VgL/gG 35 A
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingVar
height97 mm
width65 mm
depth97 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— downwards50 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— at the side30 mm
— downwards50 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— downwards50 mm
— at the side30 mm
— downwards30 mm
— upwards30 mm
— at the side9 mm
— downwards30 mm
— upwards30 mm
— at the side9 mm
— downwards30 mm
— upwards30 mm
— at the side9 mm
— downwards30 mm
— upwards30 mm
— at the side9 mm
— downwards50 mm
— upwards50 mm
— backwards0 mm
— at the side30 mm
— forwards0 mm
— downwards50 mm
— upwards50 mm
— backwards0 mm
— at the side30 mm
— forwards0 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
arrangement of electrical connectors for main current circuitTop ve bottom
— solid or stranded2x (0,75... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for main contacts2x (18... 14), 2x 12
solid or stranded0,75... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14)
AWG number as coded connectable conductor cross section for main contacts18... 12
AWG number as coded connectable conductor cross section for auxiliary contacts20... 14
for main contacts with screw-type terminals0,8... 1,2 N·m
for auxiliary contacts with screw-type terminals0,8... 1,2 N·m
design of screwdriver shaftDiameter 5 to 6 mm
size of the screwdriver tipPozidriv size 2
for main contactsM3
of the auxiliary and control contactsM3
Safety related data
product function suitable for safety functionVar
safety-related switching onYok
safety-related switching OFFVar
service life maximum10 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 319205.000
failure rate [FIT] with low demand rate according to SN 3192050 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
for proof test interval or service life according to IEC 6150810 a
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Display
display version for switching statusHandle
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing1,98 kg
global warming potential [CO2 eq] / during sales0,134 kg
global warming potential [CO2 eq] / during operation72,7 kg
global warming potential [CO2 eq] / after end of life-0.116 kg
global warming potential [CO2 eq] / total74,698 kg
Aksesuarlar 79
Siemens 3RV2111-1GA10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RV2901-1E | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1D | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1F | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1G | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-0H | Aksesuar · Auxiliary switch · cover caps | |
| 3RV2901-1A | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1B | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1C | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1J | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2922-1CB0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AF0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AM1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AB4 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AB0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AS0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1DV0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DS0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DP0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DF0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DB0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2925-5AB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2915-5B | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2925-5EB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2926-1B | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1C | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1K | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1L | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-3B | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-3C | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 8US1251-5DT10 | Aksesuar | |
| 8US1251-5DS11 | Aksesuar | |
| 8US1251-5DS10 | Aksesuar | |
| 8US1251-5DT11 | Aksesuar | |
| 3RV1923-2DA00 | Aksesuar · Enclosure · molded-plastic enclosures for flush mounting | |
| 3RV1933-1DA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1923-1CA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1923-1FA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1923-1DA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1923-1GA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV2928-0B | Aksesuar · Push-in lugs · push-in lugs | |
| 3RT2900-1SB60 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RV1902-1AB0 | Aksesuar | |
| 3RV1922-1CV1 | Aksesuar | |
| 3RV1923-1DA01 | Aksesuar · Enclosure · aluminum enclosures for surface mounting | |
| 3RV1923-1GA01 | Aksesuar · Enclosure · aluminum enclosures for surface mounting | |
| 3RV1923-2GA00 | Aksesuar · Enclosure · molded-plastic enclosures for flush mounting | |
| 3RV2928-1A | Aksesuar · Isolator modules · isolator modules | |
| 3RV1933-1GA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1922-1CV0 | Aksesuar | |
| 3RV1922-1CP0 | Aksesuar | |
| 3RV1913-2DA00 | Aksesuar · Enclosure · molded-plastic enclosures for flush mounting | |
| 3RV1902-1AB4 | Aksesuar | |
| 3RV1902-1AF0 | Aksesuar | |
| 3RV1902-1AM1 | Aksesuar | |
| 3RV1902-1AN0 | Aksesuar | |
| 3RV1902-1AP0 | Aksesuar | |
| 3RV1902-1AQ0 | Aksesuar | |
| 3RV1902-1AS0 | Aksesuar | |
| 3RV1902-1AV0 | Aksesuar | |
| 3RV1902-1AV1 | Aksesuar | |
| 3RV1902-1DB0 | Aksesuar | |
| 3RV1902-1DF0 | Aksesuar | |
| 3RV1902-1DP0 | Aksesuar | |
| 3RV1902-1DS0 | Aksesuar | |
| 3RV1902-1DV0 | Aksesuar | |
| 3RV1912-1CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1912-1CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1912-1CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1913-1CA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1913-1DA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV2921-1M | Aksesuar · Auxiliary switch · signaling switches | |
| 3RV2921-5M | Aksesuar · Auxiliary switch · wireless auxiliary and signaling switches |
İlgili Ürünler
Detayları Gör
Siemens
1FG1207-..E04-2...
MFR #1FG1207-..E04-2...
SKU #YLSMBZKG6X3T6HI
Detayları Gör
Siemens
1FG1207-..E13-4...
MFR #1FG1207-..E13-4...
SKU #YLSNZ1Q63AHMBXI
Detayları Gör
Siemens
1FG1207-..E14-4...
MFR #1FG1207-..E14-4...
SKU #YLSZETMBFTRWHU7
Detayları Gör
Siemens
1FG1207-..E22-2...
MFR #1FG1207-..E22-2...
SKU #YLS6LBIBJ3ATBSO
Detayları Gör
Siemens
1FG1207-..E23-2...
MFR #1FG1207-..E23-2...
SKU #YLSPV6MGUQ2BER5
Detayları Gör
Siemens
1FG1207-..E24-2...
MFR #1FG1207-..E24-2...
SKU #YLSRVOZIKID04QB
Detayları Gör
Siemens
1FG1207-..E32-2...
MFR #1FG1207-..E32-2...
SKU #YLSFHMCXUH8I2N
Detayları Gör
Siemens
1FG1207-..E33-2...
MFR #1FG1207-..E33-2...
SKU #YLSCD0YXJCLOGE4
Detayları Gör
Siemens
1FG1207-..E34-2...
MFR #1FG1207-..E34-2...
SKU #YLSWDESDVUWKUEF
Öne Çıkan Ürünler
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
İlgili Aramalar
Siemens 3RV2111-1GA10 fiyatSiemens 3RV2111-1GA10 teklif alSiemens 3RV2111-1GA10 satın al3RV2111-1GA10 fiyat3RV2111-1GA10 stok durumuSiemens yedek parçaSiemens 3RV2111-1GA10 muadilSiemens 3RV2111-1GA10 teknik özellikler
