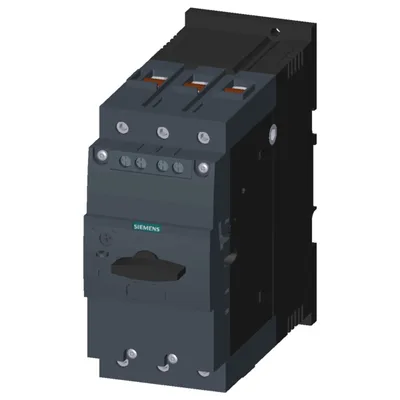

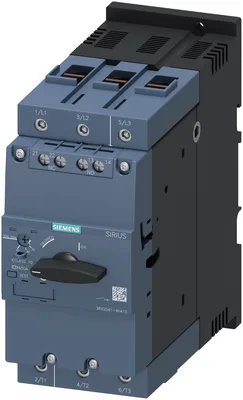

Siemens 3RV2041-4HA15
devre kesici boyut S3 için motor koruması, sınıf 10 thermal açtırma 36...50 A short-circuit açtırma 650 A vidalı klemens standart anahtarlama kapasite ile transverse yardımcı anahtar 1 NO+1 NC
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection
product type designation3RV2
size of the circuit-breakerS3
product extension auxiliary switchVar
Ürün Hakkında
devre kesici boyut S3 için motor koruması, sınıf 10 thermal açtırma 36...50 A short-circuit açtırma 650 A vidalı klemens standart anahtarlama kapasite ile transverse yardımcı anahtar 1 NO+1 NC
Siemens 3RV2041-4HA15
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection
product type designation3RV2
General technical data
Product equipment of circuit breaker for motor protection complete unit with protection deviceVar
size of the circuit-breakerS3
size of contactor can be combined company-specificS3
product function disconnector functionalityVar
product extension auxiliary switchVar
at AC in hot operating state27 W
at AC in hot operating state per pole9 W
type of calculation of power loss current-dependentquadratic
insulation voltage with degree of pollution 3 at AC rated value1.000 V
surge voltage resistance rated value8 kV
in networks with ungrounded star point between main and auxiliary circuit400 V
in networks with grounded star point between main and auxiliary circuit400 V
on the front according to IEC 60529IP20
on the frontIP20
of the terminalIP00
shock resistance according to IEC 60068-2-2725 g / 11 ms Sinus
of the main contacts typical25.000
of auxiliary contacts typical25.000
electrical endurance (operating cycles) typical25.000
reference code according to IEC 81346-2Q
continuous current rated value50 A
Substance Prohibitance (day/month/year)03/01/2017
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight2,16 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-20... +60 °C
during storage-50... +80 °C
during transport-50... +80 °C
temperature compensation-20... +60 °C
relative humidity during operation10... 95 %
Main circuit
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release36... 50 A
type of voltage for main current circuitAC
rated value690 V
rated value20... 690 V
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
operating frequency rated value50... 60 Hz
operational current rated value50 A
at AC-3 at 400 V rated value50 A
at AC-3e at 400 V rated value50 A
— at 230 V rated value11 kW
— at 400 V rated value22 kW
— at 500 V rated value30 kW
— at 690 V rated value45 kW
— at 230 V rated value11 kW
— at 400 V rated value22 kW
— at 500 V rated value30 kW
— at 690 V rated value45 kW
at AC-3 maximum15 1/h
at AC-3e maximum15 1/h
Auxiliary circuit
design of the auxiliary switchtransverse
type of voltage for auxiliary and control circuitAC/DC
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts0
at 24 V2 A
at 230 V0,5 A
at 24 V1 A
at 60 V0,15 A
Protective and monitoring functions
ground fault detectionYok
phase failure detectionVar
trip classCLASS 10
design of the overload releasethermal
protection function thermal overload protection (ANSI 49)Var
at AC at 240 V rated value100 kA
at AC at 400 V rated value65 kA
at AC at 500 V rated value12 kA
at AC at 690 V rated value6 kA
at 240 V rated value100 kA
at 400 V rated value30 kA
at 500 V rated value6 kA
at 690 V rated value3 kA
response value current of instantaneous short-circuit trip unit650 A
UL/CSA ratings
at 480 V rated value50 A
at 600 V rated value50 A
— at 110/120 V rated value5 hp
— at 230 V rated value10 hp
— at 200/208 V rated value15 hp
— at 220/230 V rated value20 hp
— at 460/480 V rated value40 hp
— at 575/600 V rated value50 hp
contact rating of auxiliary contacts according to ULC300 / R300
Short-circuit protection
product function short circuit protectionVar
design of the short-circuit tripmagnetic
certificate of suitability according to ATEX directive 2014/34/EUDMT 02 ATEX F 001
type of protection according to ATEX directive 2014/34/EUEx II (2) GD

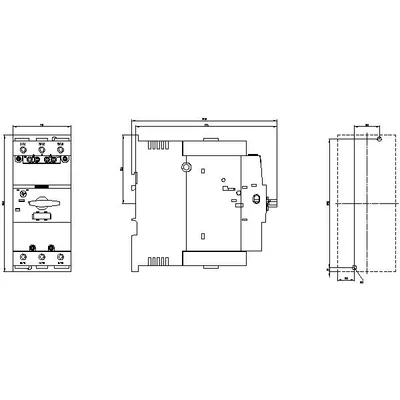

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingVar
height165 mm
width70 mm
depth176 mm
— forwards0 mm
— backwards0 mm
— upwards150 mm
— downwards150 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards150 mm
— at the side30 mm
— downwards150 mm
— forwards0 mm
— backwards0 mm
— upwards150 mm
— downwards150 mm
— at the side30 mm
— downwards70 mm
— upwards70 mm
— at the side10 mm
— downwards70 mm
— upwards70 mm
— at the side10 mm
— downwards110 mm
— upwards110 mm
— at the side10 mm
— downwards110 mm
— upwards110 mm
— at the side10 mm
— downwards150 mm
— upwards150 mm
— at the side30 mm
— downwards150 mm
— upwards150 mm
— at the side30 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
arrangement of electrical connectors for main current circuitTop ve bottom
— solid2x (2,5... 16 mm²)
— solid or stranded2x (2,5... 50 mm²), 1x (10... 70 mm²)
— finely stranded with core end processing2x (2,5... 35 mm²), 1x (2,5... 50 mm²)
— finely stranded without core end processing2x (10... 35 mm²), 1x (10... 50 mm²)
finely stranded with core end processing2,5... 50 mm²
finely stranded without core end processing10... 50 mm²
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14)
AWG number as coded connectable conductor cross section for main contacts10... 2
AWG number as coded connectable conductor cross section for auxiliary contacts20... 14
for main contacts for ring cable lug4,5... 6 N·m
outer diameter of the usable ring cable lug maximum19 mm
for main contacts with screw-type terminals4,5... 6 N·m
for auxiliary contacts with screw-type terminals0,8... 1,2 N·m
of the auxiliary and control contactsM3
Safety related data
product function suitable for safety functionVar
safety-related switching onYok
safety-related switching OFFVar
service life maximum10 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 319205.000
failure rate [FIT] with low demand rate according to SN 3192050 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
for proof test interval or service life according to IEC 6150810 a
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Display
display version for switching statusHandle
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing18,5 kg
global warming potential [CO2 eq] / during sales1,24 kg
global warming potential [CO2 eq] / during operation265 kg
global warming potential [CO2 eq] / after end of life-1.5 kg
global warming potential [CO2 eq] / total283,24 kg
Aksesuarlar 98
Siemens 3RV2041-4HA15 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RA1941-1AA00 | Aksesuar · Wiring modules, connectors and kits · link modules | |
| 3RV2901-1A | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1B | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1C | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1J | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-2A | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-2B | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-2C | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2902-2AV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-4AV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CB0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-4CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-2CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-2CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-2AP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-2CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-4AP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AS0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AM1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AF0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AB4 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AB0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-4DP0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-4DF0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-2DP0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-2DF0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-2DB0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DP0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DS0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DF0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DB0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DV0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2925-5AB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2915-5B | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2925-5EB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2946-3B | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2946-3C | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1L | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1C | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1B | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1K | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RT1946-4EA1 | Aksesuar · Terminal covers · terminal covers | |
| 3RT2946-4F | Aksesuar · Terminal covers · auxiliary conductor terminals | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB60 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RV2908-0P | Aksesuar · Sealing covers · sealing covers | |
| 3RV2948-1K | Aksesuar · Plugs, adapters and terminals · terminal blocks | |
| 3RV1952-1AA0 | Aksesuar | |
| 3RV2921-2M | Aksesuar · Auxiliary switch · signaling switches | |
| 3RV1982-1EF0 | Aksesuar | |
| 3RV1982-1ED0 | Aksesuar | |
| 3RV1982-1EA0 | Aksesuar | |
| 3RV1982-1AF0 | Aksesuar | |
| 3RV1952-1ED0 | Aksesuar | |
| 3RV1982-1AA0 | Aksesuar | |
| 3RV1952-1EF0 | Aksesuar | |
| 3RV1952-1EA0 | Aksesuar | |
| 3RV1952-1AE0 | Aksesuar | |
| 3RV1952-1AD0 | Aksesuar | |
| 3RV1982-1AD0 | Aksesuar | |
| 3RV2921-5M | Aksesuar · Auxiliary switch · wireless auxiliary and signaling switches | |
| 3RV1922-1CV1 | Aksesuar | |
| 3RV1902-1AN0 | Aksesuar | |
| 3RT2946-4EA2 | Aksesuar · Terminal covers · terminal covers | |
| 3RT2946-4GA07 | Aksesuar · Plugs, adapters and terminals · terminal blocks | |
| 3RV1902-1AB0 | Aksesuar | |
| 3RV1902-1AB4 | Aksesuar | |
| 3RV1902-1AF0 | Aksesuar | |
| 3RV1902-1AG6 | Aksesuar | |
| 3RV1902-1AM1 | Aksesuar | |
| 3RV1902-1AN6 | Aksesuar | |
| 3RV1902-1AP0 | Aksesuar | |
| 3RV1902-1AQ0 | Aksesuar | |
| 3RV1902-1AS0 | Aksesuar | |
| 3RV1902-1AV0 | Aksesuar | |
| 3RV1902-1AV1 | Aksesuar | |
| 3RV1902-1DB0 | Aksesuar | |
| 3RV1902-1DF0 | Aksesuar | |
| 3RV1902-1DP0 | Aksesuar | |
| 3RV1922-1CP0 | Aksesuar | |
| 3RV1922-1CN6 | Aksesuar | |
| 3RV1922-1CG6 | Aksesuar | |
| 3RV1922-1CV0 | Aksesuar | |
| 3RV2921-1M | Aksesuar · Auxiliary switch · signaling switches | |
| 3RV1912-1CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1912-1CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1912-1CN6 | Aksesuar | |
| 3RV1912-1CG6 | Aksesuar | |
| 3RV1902-1DV0 | Aksesuar | |
| 3RV1902-1DS0 | Aksesuar | |
| 3RV1912-1CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2901-1E | Bileşen · Auxiliary switch · auxiliary switches |
İlgili Ürünler
Detayları Gör
Siemens
3MV8100-0MC00
MFR #3MV8100-0MC00
SKU #YLSNDRLO7GD0JC3
Detayları Gör
Siemens
3MV8100-0MD00
MFR #3MV8100-0MD00
SKU #YLSLDR7SAMNEI7
Detayları Gör
Siemens
3MV8100-0ME00
MFR #3MV8100-0ME00
SKU #YLSQYIXF5Z6DOGW
Detayları Gör
Siemens
3MV8100-0MF00
MFR #3MV8100-0MF00
SKU #YLSE4VVERJVVVFH
Detayları Gör
Siemens
3MV8100-0MG00
MFR #3MV8100-0MG00
SKU #YLSI4OKULAP3QK
Detayları Gör
Siemens
3MV8100-0MH00
MFR #3MV8100-0MH00
SKU #YLSCUEFEDHRZRUJ
Detayları Gör
Siemens
3MV8100-0MJ00
MFR #3MV8100-0MJ00
SKU #YLSMBKZVBRAS5T
Detayları Gör
Siemens
3MV8100-0MK00
MFR #3MV8100-0MK00
SKU #YLS3JCVHPICJ2VL
Detayları Gör
Siemens
3MV8100-0ML00
MFR #3MV8100-0ML00
SKU #YLSMFZC3SXLCXHP
Öne Çıkan Ürünler
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
İlgili Aramalar
Siemens 3RV2041-4HA15 fiyatSiemens 3RV2041-4HA15 teklif alSiemens 3RV2041-4HA15 satın al3RV2041-4HA15 fiyat3RV2041-4HA15 stok durumuSiemens yedek parçaSiemens 3RV2041-4HA15 muadilSiemens 3RV2041-4HA15 teknik özellikler
