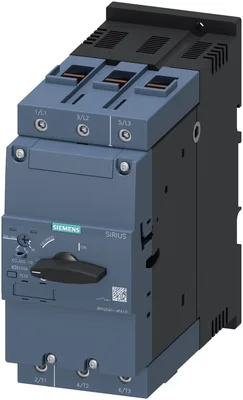

Siemens 3RV2041-4FA10

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3RV2041-4FA10

Circuit breaker size S3 for motor protection, CLASS 10 A-release 28...40 A N-release 520 A screw terminal Standard switching capacity

SiemensMFR # 3RV2041-4FA10SKU # YLSHMJDGUDRXITB
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection
product type designation3RV2
size of the circuit-breakerS3
product extension auxiliary switchVar
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Circuit breaker size S3 for motor protection, CLASS 10 A-release 28...40 A N-release 520 A screw terminal Standard switching capacity

Siemens 3RV2041-4FA10

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection
product type designation3RV2
General technical data
Product equipment of circuit breaker for motor protection complete unit with protection deviceVar
size of the circuit-breakerS3
size of contactor can be combined company-specificS3
product function disconnector functionalityVar
product extension auxiliary switchVar
at AC in hot operating state23 W
at AC in hot operating state per pole7,7 W
type of calculation of power loss current-dependentquadratic
insulation voltage with degree of pollution 3 at AC rated value1.000 V
surge voltage resistance rated value8 kV
in networks with ungrounded star point between main and auxiliary circuit400 V
in networks with grounded star point between main and auxiliary circuit400 V
on the front according to IEC 60529IP20
on the frontIP20
of the terminalIP00
shock resistance according to IEC 60068-2-2725 g / 11 ms Sinus
of the main contacts typical25.000
of auxiliary contacts typical25.000
electrical endurance (operating cycles) typical25.000
reference code according to IEC 81346-2Q
continuous current rated value40 A
Substance Prohibitance (day/month/year)03/01/2017
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight2,125 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-20... +60 °C
during storage-50... +80 °C
during transport-50... +80 °C
temperature compensation-20... +60 °C
relative humidity during operation10... 95 %
Main circuit
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release28... 40 A
type of voltage for main current circuitAC
rated value690 V
rated value20... 690 V
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
operating frequency rated value50... 60 Hz
operational current rated value40 A
at AC-3 at 400 V rated value40 A
at AC-3e at 400 V rated value40 A
— at 230 V rated value11 kW
— at 400 V rated value18,5 kW
— at 500 V rated value22 kW
— at 690 V rated value37 kW
— at 230 V rated value11 kW
— at 400 V rated value18,5 kW
— at 500 V rated value22 kW
— at 690 V rated value37 kW
at AC-3 maximum15 1/h
at AC-3e maximum15 1/h
Auxiliary circuit
type of voltage for auxiliary and control circuitAC/DC
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
Protective and monitoring functions
ground fault detectionYok
phase failure detectionVar
trip classCLASS 10
design of the overload releasethermal
protection function thermal overload protection (ANSI 49)Var
at AC at 240 V rated value100 kA
at AC at 400 V rated value65 kA
at AC at 500 V rated value12 kA
at AC at 690 V rated value6 kA
at 240 V rated value100.000 kA
at 400 V rated value30 kA
at 500 V rated value6.000 kA
response value current of instantaneous short-circuit trip unit520 A
UL/CSA ratings
at 480 V rated value40 A
at 600 V rated value40 A
— at 110/120 V rated value3 hp
— at 230 V rated value7,5 hp
— at 200/208 V rated value15 hp
— at 220/230 V rated value15 hp
— at 460/480 V rated value30 hp
— at 575/600 V rated value40 hp
Short-circuit protection
product function short circuit protectionVar
design of the short-circuit tripmagnetic
certificate of suitability according to ATEX directive 2014/34/EUDMT 02 ATEX F 001
type of protection according to ATEX directive 2014/34/EUEx II (2) GD
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingVar
height165 mm
width70 mm
depth176 mm
— forwards0 mm
— backwards0 mm
— upwards150 mm
— downwards150 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards150 mm
— at the side30 mm
— downwards150 mm
— forwards0 mm
— backwards0 mm
— upwards150 mm
— downwards150 mm
— at the side30 mm
— downwards70 mm
— upwards70 mm
— at the side10 mm
— downwards70 mm
— upwards70 mm
— at the side10 mm
— downwards110 mm
— upwards110 mm
— at the side10 mm
— downwards110 mm
— upwards110 mm
— at the side10 mm
— downwards150 mm
— upwards150 mm
— at the side30 mm
— downwards150 mm
— upwards150 mm
— at the side30 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
for main current circuitscrew-type terminals
arrangement of electrical connectors for main current circuitTop ve bottom
— solid2x (2,5... 16 mm²)
— solid or stranded2x (2,5... 50 mm²), 1x (10... 70 mm²)
— finely stranded with core end processing2x (2,5... 35 mm²), 1x (2,5... 50 mm²)
— finely stranded without core end processing2x (10... 35 mm²), 1x (10... 50 mm²)
finely stranded with core end processing2,5... 50 mm²
finely stranded without core end processing10... 50 mm²
AWG number as coded connectable conductor cross section for main contacts10... 2
for main contacts for ring cable lug4,5... 6 N·m
outer diameter of the usable ring cable lug maximum19 mm
for main contacts with screw-type terminals4,5... 6 N·m
Safety related data
product function suitable for safety functionVar
safety-related switching onYok
safety-related switching OFFVar
service life maximum10 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 319205.000
failure rate [FIT] with low demand rate according to SN 3192050 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
for proof test interval or service life according to IEC 6150810 a
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Display
display version for switching statusHandle
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing18,5 kg
global warming potential [CO2 eq] / during sales1,24 kg
global warming potential [CO2 eq] / during operation265 kg
global warming potential [CO2 eq] / after end of life-1.5 kg
global warming potential [CO2 eq] / total283,24 kg

Aksesuarlar 98

Siemens 3RV2041-4FA10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
3RA1941-1AA00Aksesuar · Wiring modules, connectors and kits · link modules
3RV2901-1EAksesuar · Auxiliary switch · auxiliary switches
3RV2901-1DAksesuar · Auxiliary switch · auxiliary switches
3RV2901-1FAksesuar · Auxiliary switch · auxiliary switches
3RV2901-1GAksesuar · Auxiliary switch · auxiliary switches
3RV2901-2EAksesuar · Auxiliary switch · auxiliary switches
3RV2901-2FAksesuar · Auxiliary switch · auxiliary switches
3RV2901-2CAksesuar · Auxiliary switch · auxiliary switches
3RV2901-2BAksesuar · Auxiliary switch · auxiliary switches
3RV2901-1JAksesuar · Auxiliary switch · auxiliary switches
3RV2901-2AAksesuar · Auxiliary switch · auxiliary switches
3RV2901-1BAksesuar · Auxiliary switch · auxiliary switches
3RV2901-1AAksesuar · Auxiliary switch · auxiliary switches
3RV2901-1CAksesuar · Auxiliary switch · auxiliary switches
3RV2902-2AP0Aksesuar · Auxiliary release · undervoltage releases
3RV2922-4CV1 Aksesuar · Auxiliary release · undervoltage releases
3RV2922-2CV1Aksesuar · Auxiliary release · undervoltage releases
3RV2922-2CV0Aksesuar · Auxiliary release · undervoltage releases
3RV2922-2CP0Aksesuar · Auxiliary release · undervoltage releases
3RV2922-1CB0Aksesuar · Auxiliary release · undervoltage releases
3RV2902-4AV0 Aksesuar · Auxiliary release · undervoltage releases
3RV2902-4AP0 Aksesuar · Auxiliary release · undervoltage releases
3RV2902-2AV0Aksesuar · Auxiliary release · undervoltage releases
3RV2922-1CV1Aksesuar · Auxiliary release · undervoltage releases
3RV2922-1CP0Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AV1Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AV0Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AS0Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AP0Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AM1Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AF0Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AB4Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AB0Aksesuar · Auxiliary release · undervoltage releases
3RV2922-1CV0Aksesuar · Auxiliary release · undervoltage releases
3RV2902-4DP0 Aksesuar · Auxiliary release · shunt releases
3RV2902-4DF0 Aksesuar · Auxiliary release · shunt releases
3RV2902-2DP0Aksesuar · Auxiliary release · shunt releases
3RV2902-2DF0Aksesuar · Auxiliary release · shunt releases
3RV2902-2DB0Aksesuar · Auxiliary release · shunt releases
3RV2902-1DB0Aksesuar · Auxiliary release · shunt releases
3RV2902-1DS0Aksesuar · Auxiliary release · shunt releases
3RV2902-1DP0Aksesuar · Auxiliary release · shunt releases
3RV2902-1DF0Aksesuar · Auxiliary release · shunt releases
3RV2902-1DV0Aksesuar · Auxiliary release · shunt releases
3RV2925-5EBAksesuar · Plugs, adapters and terminals · infeed terminals
3RV2915-5BAksesuar · Plugs, adapters and terminals · infeed terminals
3RV2925-5ABAksesuar · Plugs, adapters and terminals · infeed terminals
3RV2926-1BAksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2926-1CAksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2926-1KAksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2926-1LAksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2946-3BAksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2946-3CAksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RT1946-4EA1Aksesuar · Terminal covers · terminal covers
3RT2946-4FAksesuar · Terminal covers · auxiliary conductor terminals
3RT2900-1SB60Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB20Aksesuar · Miscellaneous accessories · labeling plates
3RV2908-0PAksesuar · Sealing covers · sealing covers
3RV2948-1KAksesuar · Plugs, adapters and terminals · terminal blocks
3RV2921-2MAksesuar · Auxiliary switch · signaling switches
3RV1982-1EF0 Aksesuar
3RV1982-1ED0 Aksesuar
3RV1982-1EA0 Aksesuar
3RV1982-1AF0 Aksesuar
3RV1952-1AD0 Aksesuar
3RV1982-1AA0 Aksesuar
3RV1952-1EF0 Aksesuar
3RV1952-1ED0 Aksesuar
3RV1952-1EA0 Aksesuar
3RV1952-1AE0 Aksesuar
3RV1982-1AD0 Aksesuar
3RV1952-1AA0 Aksesuar
3RV2921-5MAksesuar · Auxiliary switch · wireless auxiliary and signaling switches
3RV1922-1CV1 Aksesuar
3RV1902-1AB4 Aksesuar
3RT2946-4EA2Aksesuar · Terminal covers · terminal covers
3RV1902-1AB0 Aksesuar
3RV1902-1AF0 Aksesuar
3RV1902-1AG6 Aksesuar
3RV1902-1AM1 Aksesuar
3RT2946-4GA07Aksesuar · Plugs, adapters and terminals · terminal blocks
3RV1902-1AN0 Aksesuar
3RV1902-1AN6 Aksesuar
3RV1902-1AP0 Aksesuar
3RV1902-1AQ0 Aksesuar
3RV1902-1AS0 Aksesuar
3RV1902-1AV0 Aksesuar
3RV1902-1AV1 Aksesuar
3RV1902-1DB0 Aksesuar
3RV1902-1DF0 Aksesuar
3RV1902-1DP0 Aksesuar
3RV1922-1CP0 Aksesuar
3RV1922-1CN6 Aksesuar
3RV1922-1CG6 Aksesuar
3RV1922-1CV0 Aksesuar
3RV2921-1MAksesuar · Auxiliary switch · signaling switches
3RV1912-1CV0Aksesuar · Auxiliary release · undervoltage releases
3RV1912-1CP0Aksesuar · Auxiliary release · undervoltage releases

İlgili Ürünler

1FE1092-6.N.0-7.W.
Siemens 1FE1092-6.N.0-7.W.
Detayları Gör

Siemens

1FE1092-6.N.0-7.W.

MFR #1FE1092-6.N.0-7.W.

SKU #YLS5MXS6IW7BDXL

1FE1092-6.R.1-3W..
Siemens 1FE1092-6.R.1-3W..
Detayları Gör

Siemens

1FE1092-6.R.1-3W..

MFR #1FE1092-6.R.1-3W..

SKU #YLSH9UNYON2KKZ4

1FE1092-6.R.1-6...
Siemens 1FE1092-6.R.1-6...
Detayları Gör

Siemens

1FE1092-6.R.1-6...

MFR #1FE1092-6.R.1-6...

SKU #YLS5IP8QE5WGGCC

1FE1092-6.R.1-7.W.
Siemens 1FE1092-6.R.1-7.W.
Detayları Gör

Siemens

1FE1092-6.R.1-7.W.

MFR #1FE1092-6.R.1-7.W.

SKU #YLSJASPZZW2AWRK

1FE1092-6WN30-8BW2
Siemens 1FE1092-6WN30-8BW2
Detayları Gör

Siemens

1FE1092-6WN30-8BW2

MFR #1FE1092-6WN30-8BW2

SKU #YLSL9EEKGTQIVZK

1FE1092-6WR11-5WA2
Siemens 1FE1092-6WR11-5WA2
Detayları Gör

Siemens

1FE1092-6WR11-5WA2

MFR #1FE1092-6WR11-5WA2

SKU #YLSHWGDPJF5I4VS

1FE1092-6WR11-5WB2
Siemens 1FE1092-6WR11-5WB2
Detayları Gör

Siemens

1FE1092-6WR11-5WB2

MFR #1FE1092-6WR11-5WB2

SKU #YLSGCF8DKFJSZTC

1FE1093-4.H.1-3W..
Siemens 1FE1093-4.H.1-3W..
Detayları Gör

Siemens

1FE1093-4.H.1-3W..

MFR #1FE1093-4.H.1-3W..

SKU #YLSH1IL5E3CLTO

1FE1093-4.H.1-6...
Siemens 1FE1093-4.H.1-6...
Detayları Gör

Siemens

1FE1093-4.H.1-6...

MFR #1FE1093-4.H.1-6...

SKU #YLSFS6YHHENQ4JU

1FE1093-4.H.1-6NN.
Siemens 1FE1093-4.H.1-6NN.
Detayları Gör

Siemens

1FE1093-4.H.1-6NN.

MFR #1FE1093-4.H.1-6NN.

SKU #YLSCPHU2ZCFZ6KO

Öne Çıkan Ürünler

VQZ2121-5LO1-N3T
SMC VQZ2121-5LO1-N3T
Detayları Gör

SMC

VQZ2121-5LO1-N3T

MFR #VQZ2121-5LO1-N3T

SKU #YLSEL35MGGQ9FOL

MDBB63-100Z
SMC MDBB63-100Z
Detayları Gör

SMC

MDBB63-100Z

MFR #MDBB63-100Z

SKU #YLSNBPQBGLI90UX

MXQ25-40B-M9NZ
SMC MXQ25-40B-M9NZ
Detayları Gör

SMC

MXQ25-40B-M9NZ

MFR #MXQ25-40B-M9NZ

SKU #YLST5TX9LNATRNS

AW20-N02CG-6CZ-B
SMC AW20-N02CG-6CZ-B
Detayları Gör

SMC

AW20-N02CG-6CZ-B

MFR #AW20-N02CG-6CZ-B

SKU #YLSNOOF0IBCZ3J3

MXS-AS16L
SMC MXS-AS16L
Detayları Gör

SMC

MXS-AS16L

MFR #MXS-AS16L

SKU #YLSAP0XXFGFSWY6

EH22512
Danfoss Aeroquip LLC EH22512
Detayları Gör

Danfoss Aeroquip LLC

EH22512

MFR #EH22512

SKU #YLSRZ91UGVO64DG

NCDGFN25-0100
SMC NCDGFN25-0100
Detayları Gör

SMC

NCDGFN25-0100

MFR #NCDGFN25-0100

SKU #YLST0TDV975HLIN

MGPM25-100Z-XC4
SMC MGPM25-100Z-XC4
Detayları Gör

SMC

MGPM25-100Z-XC4

MFR #MGPM25-100Z-XC4

SKU #YLSH71U0VZZBO5I

AR30-N02E-1Z-B
SMC AR30-N02E-1Z-B
Detayları Gör

SMC

AR30-N02E-1Z-B

MFR #AR30-N02E-1Z-B

SKU #YLSYFNHADE6GRKV

CG5EN50SV-150
SMC CG5EN50SV-150
Detayları Gör

SMC

CG5EN50SV-150

MFR #CG5EN50SV-150

SKU #YLST11TLVYPVP7H

İlgili Aramalar

Siemens 3RV2041-4FA10 fiyatSiemens 3RV2041-4FA10 teklif alSiemens 3RV2041-4FA10 satın al3RV2041-4FA10 fiyat3RV2041-4FA10 stok durumuSiemens yedek parçaSiemens 3RV2041-4FA10 muadilSiemens 3RV2041-4FA10 teknik özellikler
