Siemens
3MV8100-0MB00
MFR #3MV8100-0MB00
SKU #YLSTQVYRHTPPWXE
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

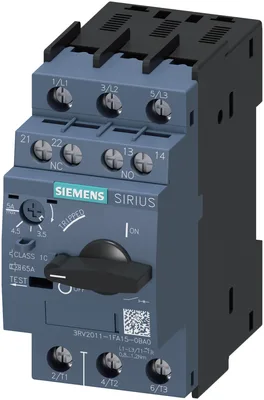

Siemens 3RV2011-1FA15-0BA0
special tip devre kesici gövde boyu S00 için motor koruması, sınıf 10 thermal açtırma 3.5...5 A short-circuit açtırma 65 A vidalı klemens standart anahtarlama kapasite ile transverse yardımcı anahtar 1 NO+1 NC ortam sıcaklık -50 °C 500 çalışma cycles
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection
product type designation3RV2
size of the circuit-breakerS00
product extension auxiliary switchVar
Ürün Hakkında
special tip devre kesici gövde boyu S00 için motor koruması, sınıf 10 thermal açtırma 3.5...5 A short-circuit açtırma 65 A vidalı klemens standart anahtarlama kapasite ile transverse yardımcı anahtar 1 NO+1 NC ortam sıcaklık -50 °C 500 çalışma cycles
Siemens 3RV2011-1FA15-0BA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCircuit breaker
design of the productFor motor protection
product type designation3RV2
General technical data
Product equipment of circuit breaker for motor protection complete unit with protection deviceVar
size of the circuit-breakerS00
size of contactor can be combined company-specificS00, S0
product function disconnector functionalityVar
product extension auxiliary switchVar
at AC in hot operating state7,25 W
at AC in hot operating state per pole2,4 W
type of calculation of power loss current-dependentquadratic
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
in networks with ungrounded star point between main and auxiliary circuit400 V
in networks with grounded star point between main and auxiliary circuit400 V
on the front according to IEC 60529IP20
on the frontIP20
of the terminalIP20
shock resistance according to IEC 60068-2-2725g / 11 ms
of the main contacts typical500
of auxiliary contacts typical500
electrical endurance (operating cycles) typical500
reference code according to IEC 81346-2Q
continuous current rated value5 A
Substance Prohibitance (day/month/year)10/01/2009
Net Weight0,345 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-50... +60 °C
during storage-50... +80 °C
during transport-50... +80 °C
temperature compensation-20... +60 °C
relative humidity during operation10... 95 %
Main circuit
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release3,5... 5 A
type of voltage for main current circuitAC
rated value690 V
rated value20... 690 V
at AC-3 rated value maximum690 V
operating frequency rated value50... 60 Hz
operational current rated value5 A
at AC-3 at 400 V rated value5 A
— at 230 V rated value1,1 kW
— at 400 V rated value1,5 kW
— at 500 V rated value2,2 kW
— at 690 V rated value4 kW
at AC-3 maximum15 1/h
Auxiliary circuit
design of the auxiliary switchtransverse
type of voltage for auxiliary and control circuitAC/DC
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts0
at 24 V2 A
at 120 V0,5 A
at 125 V0,5 A
at 230 V0,5 A
at 24 V1 A
at 60 V0,15 A
Protective and monitoring functions
ground fault detectionYok
phase failure detectionVar
trip classCLASS 10
design of the overload releasethermal
protection function thermal overload protection (ANSI 49)Var
at AC at 240 V rated value100 kA
at AC at 400 V rated value100 kA
at AC at 500 V rated value100 kA
at AC at 690 V rated value6 kA
at 240 V rated value100 kA
at 400 V rated value100 kA
at 500 V rated value100 kA
at 690 V rated value4 kA
response value current of instantaneous short-circuit trip unit65 A
Short-circuit protection
product function short circuit protectionVar
design of the short-circuit tripmagnetic
for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A, miniature circuit breaker C 6 A (short-circuit current Ik < 400 A)
at 400 VgG 32 A
at 500 VgG 32 A
at 690 VgG 25 A
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingVar
height97 mm
width45 mm
depth97 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— downwards50 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— at the side30 mm
— downwards50 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— downwards50 mm
— at the side30 mm
— downwards30 mm
— upwards30 mm
— at the side9 mm
— downwards30 mm
— upwards30 mm
— at the side9 mm
— downwards30 mm
— upwards30 mm
— at the side9 mm
— downwards30 mm
— upwards30 mm
— at the side9 mm
— downwards50 mm
— upwards50 mm
— backwards0 mm
— at the side30 mm
— forwards0 mm
— downwards50 mm
— upwards50 mm
— backwards0 mm
— at the side30 mm
— forwards0 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
arrangement of electrical connectors for main current circuitTop ve bottom
— solid or stranded2x (0,75... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
solid or stranded0,75... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for main contacts with screw-type terminals0,8... 1,2 N·m
for auxiliary contacts with screw-type terminals0,8... 1,2 N·m
design of screwdriver shaftDiameter 5 to 6 mm
size of the screwdriver tipPozidriv size 2
for main contactsM3
of the auxiliary and control contactsM3
IEC 61508
for proof test interval or service life according to IEC 6150810 a
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Display
display version for switching statusHandle
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing1,98 kg
global warming potential [CO2 eq] / during sales0,134 kg
global warming potential [CO2 eq] / during operation72,7 kg
global warming potential [CO2 eq] / after end of life-0.116 kg
global warming potential [CO2 eq] / total74,698 kg
Aksesuarlar 94
Siemens 3RV2011-1FA15-0BA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RA1921-1DA00 | Aksesuar · Wiring modules, connectors and kits · link modules | |
| 3RV2901-1A | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1B | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1C | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1J | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2922-1CB0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2922-1CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AM1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AF0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AB4 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AB0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1AS0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1DV0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DS0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DF0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DB0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV2902-1DP0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RV1915-1AB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-1BB | Aksesuar · Infeed systems · busbars | |
| 3RV2925-5AB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2915-5B | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2925-5EB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RV2926-1C | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1B | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1K | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-1L | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-3B | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 3RV2926-3C | Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms | |
| 8US1251-5DT11 | Aksesuar | |
| 8US1251-5DS11 | Aksesuar | |
| 8US1251-5DS10 | Aksesuar | |
| 8US1251-5DT10 | Aksesuar | |
| 3RV1933-1DA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1923-2DA00 | Aksesuar · Enclosure · molded-plastic enclosures for flush mounting | |
| 3RV1923-1CA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1923-1FA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1923-1DA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1923-1GA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV2928-0B | Aksesuar · Push-in lugs · push-in lugs | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB60 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RV2908-0P | Aksesuar · Sealing covers · sealing covers | |
| 3RV1922-1CV1 | Aksesuar | |
| 3RV1935-3C | Aksesuar · Infeed systems · busbars | |
| 3RV1935-3B | Aksesuar · Infeed systems · busbars | |
| 3RV1935-3A | Aksesuar · Infeed systems · busbars | |
| 3RV1935-1C | Aksesuar · Infeed systems · busbars | |
| 3RV1935-1B | Aksesuar · Infeed systems · busbars | |
| 3RV1923-2GA00 | Aksesuar · Enclosure · molded-plastic enclosures for flush mounting | |
| 3RV1933-1GA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV2928-1A | Aksesuar · Isolator modules · isolator modules | |
| 3RV1923-1GA01 | Aksesuar · Enclosure · aluminum enclosures for surface mounting | |
| 3RV1923-1DA01 | Aksesuar · Enclosure · aluminum enclosures for surface mounting | |
| 3RV1935-1A | Aksesuar · Infeed systems · busbars | |
| 3RV2921-5M | Aksesuar · Auxiliary switch · wireless auxiliary and signaling switches | |
| 3RV1922-1CV0 | Aksesuar | |
| 3RV1902-1AS0 | Aksesuar | |
| 3RV2921-1M | Aksesuar · Auxiliary switch · signaling switches | |
| 3RV1902-1AB0 | Aksesuar | |
| 3RV1902-1AB4 | Aksesuar | |
| 3RV1902-1AF0 | Aksesuar | |
| 3RV1902-1AM1 | Aksesuar | |
| 3RV1902-1AN0 | Aksesuar | |
| 3RV1902-1AP0 | Aksesuar | |
| 3RV1902-1AQ0 | Aksesuar | |
| 3RV1902-1AV0 | Aksesuar | |
| 3RV1902-1AV1 | Aksesuar | |
| 3RV1902-1DB0 | Aksesuar | |
| 3RV1902-1DF0 | Aksesuar | |
| 3RV1902-1DP0 | Aksesuar | |
| 3RV1902-1DS0 | Aksesuar | |
| 3RV1902-1DV0 | Aksesuar | |
| 3RV1912-1CP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1912-1CV0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1912-1CV1 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV1913-1CA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1913-1DA00 | Aksesuar · Enclosure · molded-plastic enclosures for surface mounting | |
| 3RV1913-2DA00 | Aksesuar · Enclosure · molded-plastic enclosures for flush mounting | |
| 3RV1915-1CB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-1DB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-2AB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-2BB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-2CB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-2DB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-3AB | Aksesuar · Infeed systems · busbars | |
| 3RV1915-3CB | Aksesuar · Infeed systems · busbars | |
| 3RV1922-1CP0 | Aksesuar | |
| 3RV2011-1FA10 | Bileşen | |
| 3RV2901-1E | Bileşen · Auxiliary switch · auxiliary switches |
İlgili Ürünler
Detayları Gör
Siemens
3MV8100-0MC00
MFR #3MV8100-0MC00
SKU #YLSNDRLO7GD0JC3
Detayları Gör
Siemens
3MV8100-0MD00
MFR #3MV8100-0MD00
SKU #YLSLDR7SAMNEI7
Detayları Gör
Siemens
3MV8100-0ME00
MFR #3MV8100-0ME00
SKU #YLSQYIXF5Z6DOGW
Detayları Gör
Siemens
3MV8100-0MF00
MFR #3MV8100-0MF00
SKU #YLSE4VVERJVVVFH
Detayları Gör
Siemens
3MV8100-0MG00
MFR #3MV8100-0MG00
SKU #YLSI4OKULAP3QK
Detayları Gör
Siemens
3MV8100-0MH00
MFR #3MV8100-0MH00
SKU #YLSCUEFEDHRZRUJ
Detayları Gör
Siemens
3MV8100-0MJ00
MFR #3MV8100-0MJ00
SKU #YLSMBKZVBRAS5T
Detayları Gör
Siemens
3MV8100-0MK00
MFR #3MV8100-0MK00
SKU #YLS3JCVHPICJ2VL
Detayları Gör
Siemens
3MV8100-0ML00
MFR #3MV8100-0ML00
SKU #YLSMFZC3SXLCXHP
Öne Çıkan Ürünler
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
İlgili Aramalar
Siemens 3RV2011-1FA15-0BA0 fiyatSiemens 3RV2011-1FA15-0BA0 teklif alSiemens 3RV2011-1FA15-0BA0 satın al3RV2011-1FA15-0BA0 fiyat3RV2011-1FA15-0BA0 stok durumuSiemens yedek parçaSiemens 3RV2011-1FA15-0BA0 muadilSiemens 3RV2011-1FA15-0BA0 teknik özellikler
