Siemens 3RT2526-2XJ40-0LA2 için nasıl fiyat teklifi alabilirim?

Siemens 3RT2526-2XJ40-0LA2 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B03935D4 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RT2526-2XJ40-0LA2 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RT2526-2XJ40-0LA2 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RT2526-2XJ40-0LA2 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3RT2526-2XJ40-0LA2

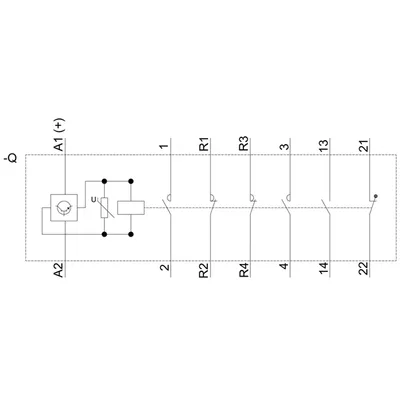

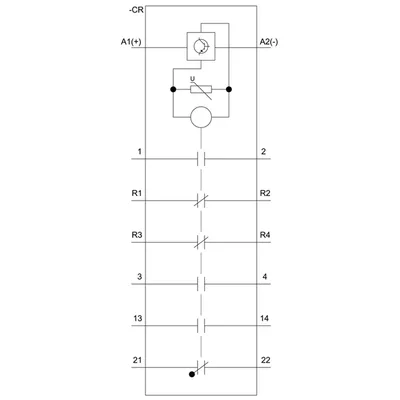

traction kontaktör, AC-3, 25 A, 11 kW / 400 V, 4-pole, 72 V DC, 0.7-1.25* Uc, solid-state çalışma mechanism, ile dahili varistor, main contacts: 2 NO + 2 NC, yardımcı contacts: 1 NO + 1 NC, yaylı klemens, gövde boyu: S0

SiemensMFR # 3RT2526-2XJ40-0LA2SKU # CEY-8EF3B03935D4

product brand nameSIRIUS

product designationNon-reversing contactor

product type designation3RT25

size of contactorS0

function module for communicationYok

auxiliary switchVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RT2526-2XJ40-0LA2

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationNon-reversing contactor

product type designation3RT25

General technical data

size of contactorS0

function module for communicationYok

auxiliary switchVar

at AC in hot operating state4,4 W

at AC in hot operating state per pole2,2 W

without load current share typical1,3 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V

at DC10g / 5 ms, 7,5g / 10 ms

at DC15 g / 5 ms, 10 g / 10 ms

of contactor typical10.000.000

of the contactor with added electronically optimized auxiliary switch block typical5.000.000

of the contactor with added auxiliary switch block typical10.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2009

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight655 g

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-40... +70 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit4

number of NO contacts for main contacts2

number of NC contacts for main contacts2

at AC-3 rated value maximum400 V

at AC-1 at 400 V at ambient temperature 40 °C rated value40 A

— up to 690 V at ambient temperature 40 °C rated value40 A

— up to 690 V at ambient temperature 60 °C rated value35 A

at AC-2 at 400 V rated value20 A

— at 400 V rated value20 A

at AC-4 at 400 V rated value15,5 A

at maximum AC-1 rated value10 mm²

at 400 V rated value9 A

at 690 V rated value9 A

— at 24 V rated value35 A

— at 110 V rated value4,5 A

— at 220 V rated value1 A

— at 440 V rated value0,4 A

— at 24 V rated value35 A

— at 110 V rated value35 A

— at 220 V rated value5 A

— at 440 V rated value1 A

— at 24 V rated value20 A

— at 110 V rated value2,5 A

— at 220 V rated value1 A

— at 440 V rated value0,09 A

— at 24 V rated value35 A

— at 110 V rated value15 A

— at 220 V rated value3 A

— at 440 V rated value0,27 A

at AC-2 at 400 V rated value7,5 kW

— at 230 V rated value5,5 kW

— at 400 V rated value7,5 kW

at 400 V rated value4,4 kW

at 690 V rated value7,7 kW

at DC1.500 1/h

at AC-1 maximum750 1/h

at AC-2 maximum750 1/h

at AC-3 maximum750 1/h

at AC-4 maximum200 1/h

Control circuit/ Control

type of voltageDC

type of voltage of the control supply voltageDC

control supply voltage at DC rated value72 V

initial value0,7

full-scale value1,25

design of the surge suppressorwith varistor

duration of pickup current180 ms

closing power of magnet coil at DC13,2 W

holding power of magnet coil at DC1,3 W

at DC50... 75 ms

at DC30... 50 ms

arcing time10 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts1

instantaneous contact1

number of NO contacts for auxiliary contacts1

instantaneous contact1

operational current at AC-12 maximum10 A

at 230 V rated value10 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0,15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0,9 A

at 220 V rated value0,3 A

at 600 V rated value0,1 A

UL/CSA ratings

— at 110/120 V rated value2 hp

— at 230 V rated value3 hp

contact rating of auxiliary contacts according to ULA600 / Q600

UL File Number (CCN)E31519 (NLDX, NLDX7)

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

— with type of coordination 1 requiredgG: 63 A (690 V, 100 kA)

— with type of coordination 2 requiredgG: 35 A (690 V, 50 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface

fastening method side-by-side mountingVar

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

height102 mm

width61 mm

depth107 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

Connections/ Terminals

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

at contactor for auxiliary contactsSpring-type terminals

of magnet coilSpring-loaded terminal

— solid2x (1... 10 mm²)

— solid or stranded2x (1... 10 mm²)

— finely stranded with core end processing2x (1... 6 mm²)

— finely stranded without core end processing2x (1... 6 mm²)

for AWG cables for main contacts2x (18... 8)

— solid2x (0,5... 2,5 mm²)

— solid or stranded2x (0,5... 2,5 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²)

— finely stranded without core end processing2x (0,5... 1,5 mm²)

for AWG cables for auxiliary contacts2x (20... 14)

AWG number as coded connectable conductor cross section for main contacts18... 8

AWG number as coded connectable conductor cross section for auxiliary contacts20... 14

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Communication/ Protocol

product function bus communicationYok
