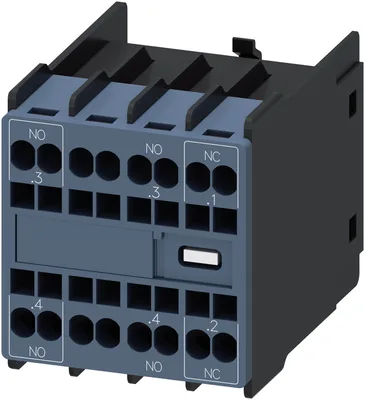

Siemens 3RH2911-2NE21

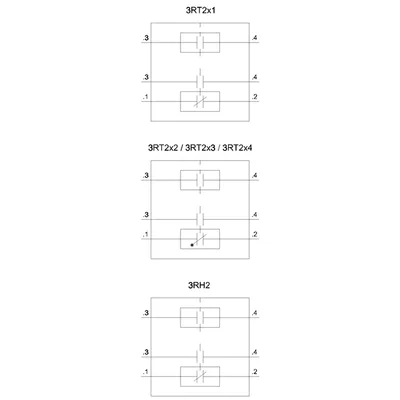

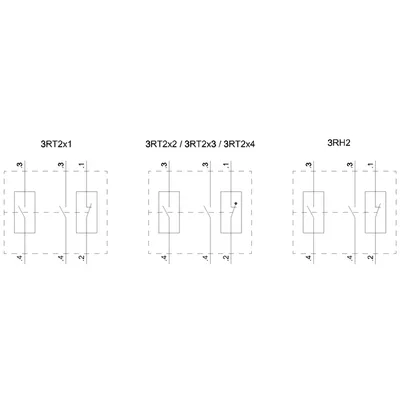

yardımcı anahtar, solid-state compatible, on the ön, 2 NO + 1 NC,.3/.4, --/--,.3/.4,.1/.2, akım path: 1 NO (solid-state compatible), --, 1 NO, 1 NC (solid-state compatible), yaylı klemens, için contactors 3RT2 ve kontaktör relays 3RH2
product brand nameSIRIUS
product categoryAuxiliary switch
product designationauxiliary switch
design of the productfor snapping onto the front
product type designation3RH29
suitability for usefor 3RT2.1, 3RT2.2, 3RT2.3, 3RT2.4, 3RH2
Ürün Hakkında
yardımcı anahtar, solid-state compatible, on the ön, 2 NO + 1 NC,.3/.4, --/--,.3/.4,.1/.2, akım path: 1 NO (solid-state compatible), --, 1 NO, 1 NC (solid-state compatible), yaylı klemens, için contactors 3RT2 ve kontaktör relays 3RH2
Siemens 3RH2911-2NE21
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryAuxiliary switch
product designationauxiliary switch
design of the productfor snapping onto the front
product type designation3RH29
suitability for usefor 3RT2.1, 3RT2.2, 3RT2.3, 3RT2.4, 3RH2
General technical data
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
protection class IP on the frontIP20
mechanical service life (operating cycles) typical5.000.000
Substance Prohibitance (day/month/year)10/01/2009
Net Weight0,056 g
instantaneous contact1
lagging switching0
instantaneous contact2
leading contact0
number of CO contacts of auxiliary contacts instantaneous contact0
at 24 V0,3 A
at 48 V0,3 A
at 60 V0,3 A
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 Vconventional: C characteristic: 10 A; 0,4 kA
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (5 V, 1 mA)
Ambient conditions
during operation-25... +60 °C
during storage-55... +80 °C
Safety related data
mirror contact according to IEC 60947-4-1Var; with 3RT2.2/3/4
positively driven operation according to IEC 60947-5-1Yok
Short-circuit protection
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 Vconventional: C characteristic: 10 A; 0,4 kA
design of the fuse link for short-circuit protection of the auxiliary switch requiredconventional: gG: 10 A (690 V, 1 kA); electronically optimized: FF microfuse 2 A (250 V, 1 kA)

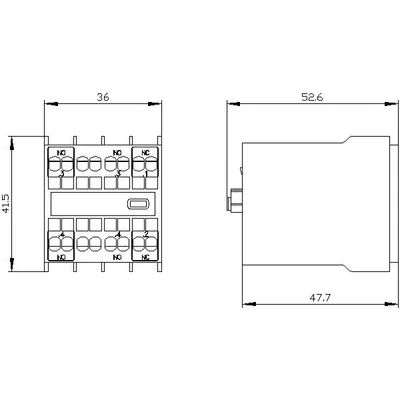

Installation/ mounting/ dimensions
fastening methodsnap-on mounting
height41,5 mm
width36 mm
depth47,7 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitspring-loaded terminals
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
finely stranded without core end processing0,5... 2,5 mm²
— solid or stranded2x (0,5... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²)
— finely stranded without core end processing2x (0,5... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 14)
AWG number as coded connectable conductor cross section for auxiliary contacts20... 14
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,375 kg
global warming potential [CO2 eq] / during operation0,0014 kg
global warming potential [CO2 eq] / after end of life0,0202 kg
global warming potential [CO2 eq] / total0,397 kg
