Siemens 3RA2813-2AW10 için nasıl fiyat teklifi alabilirim?

Siemens 3RA2813-2AW10 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B03956F2 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RA2813-2AW10 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RA2813-2AW10 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RA2813-2AW10 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

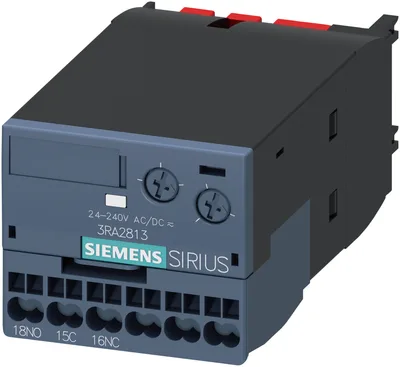

Siemens 3RA2813-2AW10

solid-state time-delayed yardımcı anahtar, ON-delay, röle: 1 CO, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor için attenuation of the kontaktör coils dahili, yaylı klemens, can be snapped onto the ön on contactors 3RT20 ve kontaktör relays 3RH2

SiemensMFR # 3RA2813-2AW10SKU # CEY-8EF3B03956F2

product brand nameSIRIUS

product designationSolid-state time-delay auxiliary switch

product type designation3RA28

product component semi-conductor outputYok

test voltage for isolation test1,5 kV

degree of pollution3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RA2813-2AW10

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationSolid-state time-delay auxiliary switch

product type designation3RA28

General technical data

size of contactor can be combined company-specificS00, S0, S2, S3

product component semi-conductor outputYok

product extension required remote controlYok

product extension optional remote controlYok

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

test voltage for isolation test1,5 kV

degree of pollution3

surge voltage resistance rated value4 kV

test voltage for surge voltage test4.800 V

protection class IP of the terminalIP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-610... 59 Hz: 0,35 mm, 60... 150 Hz: 2 g

mechanical service life (operating cycles) typical10.000.000

with contactor 3R.2 of frame size S0010.000.000

with contactor 3R.2 of frame size S010.000.000

with contactor 3R.2 of frame size S210.000.000

with contactor 3R.2 of frame size S310.000.000

electrical endurance (operating cycles) at AC-15 at 230 V typical100.000

with contactor 3R.2 of frame size S00100.000

with contactor 3R.2 of frame size S0100.000

with contactor 3R.2 of frame size S2100.000

with contactor 3R.2 of frame size S3100.000

adjustable time0,05... 100 s

relative setting accuracy relating to full-scale value15 %

recovery time150 ms

reference code according to IEC 81346-2K

active principleelectronic

relative repeat accuracy1 %

influence of the surrounding temperature±1 %

power supply influence±1 %

Substance Prohibitance (day/month/year)10/01/2009

SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight94,38 g

Product Function

product function star-delta circuitYok

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value24... 240 V

at 60 Hz rated value24... 240 V

at 50 Hz24... 240 V

at 60 Hz24... 240 V

control supply voltage frequency 150... 60 Hz

control supply voltage at DC rated value24... 240 V

control supply voltage 1 at DC24... 240 V

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

design of the surge suppressorwith varistor

Switching Function

ON-delayVar

ON-delay/instantaneous contactYok

passing make contactYok

passing make contact/instantaneous contactYok

OFF delayYok

flashing symmetrically with interval start/instantaneousYok

flashing symmetrically with interval startYok

flashing symmetrically with pulse start/instantaneousYok

flashing symmetrically with pulse startYok

flashing asymmetrically with interval startYok

flashing asymmetrically with pulse startYok

constant clock cycle with pulse startYok

constant clock cycle with interval startYok

variably clocked with pulse startYok

variably clocked with interval startYok

star-delta circuit with delay timeYok

star-delta circuitYok

additive ON-delayYok

passing break contactYok

passing break contact/instantaneousYok

OFF delayYok

OFF delay/instantaneousYok

pulse delayedYok

pulse delayed/instantaneousYok

pulse-shapingYok

pulse-shaping/instantaneousYok

additive ON-delay/instantaneousYok

ON-delay/OFF-delayYok

ON-delay/OFF-delay/instantaneousYok

passing make contactYok

passing make contact/instantaneous contactYok

retrotriggerable with deactivated control signal/instantaneous contactYok

retrotriggerable with switched-on control signalYok

retrotriggerable with switched-on control signal/instantaneous contactYok

retriggerable with deactivated control signalYok

design of the control terminal non-floatingVar

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A

Auxiliary circuit

material of switching contactsAgNi

delayed switching0

instantaneous contact0

delayed switching0

instantaneous contact0

delayed switching1

instantaneous contact0

maximum3 A

at 24 V3 A

at 250 V3 A

at 24 V3 A

at 250 V3 A

at 24 V3 A

at 250 V3 A

operational current of auxiliary contacts at DC-131... 0,1

at 24 V1 A

at 125 V0,2 A

at 250 V0,1 A

operating frequency with 3RT2 contactor maximum2.500 1/h

contact rating of auxiliary contacts according to ULB300 / R300

Main circuit

type of voltageAC/DC

Inputs/ Outputs

at the relay outputs switchover delayed/without delayYok

non-volatileYok

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0,2 A

Electromagnetic compatibility

EMC immunity according to IEC 61812-1Environment A (industrial area)

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-28 kV

Safety related data

category according to EN 954-1yok

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

type of insulationBasic insulation

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

type of electrical connectionspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

solid0,5... 4 mm², 2x (0,5... 2,5 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)

finely stranded without core end processing2x (0,5... 1,5 mm²)

for AWG cables solid2x (20... 14)

for AWG cables stranded2x (20... 14)

solid0,5... 4 mm²

finely stranded with core end processing0,5... 2,5 mm²

finely stranded without core end processing0,25... 1,5 mm²

solid20... 14

stranded20... 14

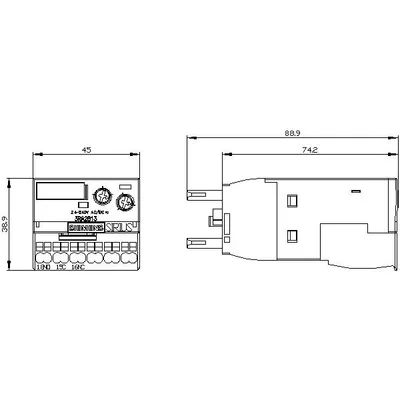

Installation/ mounting/ dimensions

mounting positionany (like contactor)

fastening methodclip-on

height38 mm

width45 mm

depth74 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +85 °C

during transport-40... +85 °C

relative humidity during operation0... 95 %

Aksesuarlar 2

Siemens 3RA2813-2AW10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA2910-0	Aksesuar
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
