Siemens 3RT2046-3AP00

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

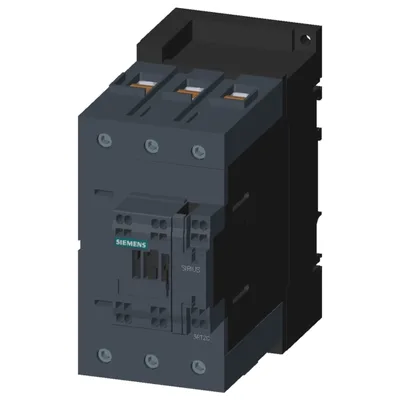

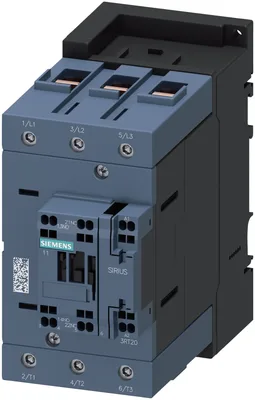

Siemens 3RT2046-3AP00

power contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 230 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal, size: S3

SiemensMFR # 3RT2046-3AP00SKU # CEY-8EF3B02C34B2
product brand nameSIRIUS
product designationPower contactor
product type designation3RT2
size of contactorS3
function module for communicationYok
auxiliary switchVar
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

power contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 230 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal, size: S3

Siemens 3RT2046-3AP00

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS
product designationPower contactor
product type designation3RT2
General technical data
size of contactorS3
function module for communicationYok
auxiliary switchVar
at AC in hot operating state19,8 W
at AC in hot operating state per pole6,6 W
without load current share typical7,3 W
type of calculation of power loss current-dependentquadratic
of main circuit with degree of pollution 3 rated value1.000 V
of auxiliary circuit with degree of pollution 3 rated value690 V
of main circuit rated value8 kV
of auxiliary circuit rated value6 kV
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V
at AC10,3 g / 5 ms, 6,7 g / 10 ms
at AC16,3 g / 5 ms, 10,5 g / 10 ms
of contactor typical10.000.000
of the contactor with added electronically optimized auxiliary switch block typical5.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)03/01/2017
Net Weight1,651 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
at AC-3 rated value maximum1.000 V
at AC-3e rated value maximum1.000 V
at AC-1 at 400 V at ambient temperature 40 °C rated value130 A
— up to 690 V at ambient temperature 40 °C rated value130 A
— up to 690 V at ambient temperature 60 °C rated value110 A
— at 400 V rated value95 A
— at 500 V rated value95 A
— at 690 V rated value78 A
— at 1000 V rated value30 A
— at 400 V rated value95 A
— at 500 V rated value95 A
— at 690 V rated value78 A
— at 1000 V rated value30 A
at AC-4 at 400 V rated value80 A
at AC-5a up to 690 V rated value114 A
at AC-5b up to 400 V rated value95 A
— up to 230 V for current peak value n=20 rated value84,4 A
— up to 400 V for current peak value n=20 rated value84,4 A
— up to 500 V for current peak value n=20 rated value84,4 A
— up to 690 V for current peak value n=20 rated value58 A
— up to 230 V for current peak value n=30 rated value56,3 A
— up to 400 V for current peak value n=30 rated value56,3 A
— up to 500 V for current peak value n=30 rated value56,3 A
— up to 690 V for current peak value n=30 rated value56,3 A
minimum cross-section in main circuit at maximum AC-1 rated value50 mm²
at 400 V rated value42 A
at 690 V rated value30 A
— at 24 V rated value100 A
— at 60 V rated value60 A
— at 110 V rated value9 A
— at 220 V rated value2 A
— at 440 V rated value0,6 A
— at 600 V rated value0,4 A
— at 24 V rated value100 A
— at 60 V rated value100 A
— at 110 V rated value100 A
— at 220 V rated value10 A
— at 440 V rated value1,8 A
— at 600 V rated value1 A
— at 24 V rated value100 A
— at 60 V rated value100 A
— at 110 V rated value100 A
— at 220 V rated value80 A
— at 440 V rated value4,5 A
— at 600 V rated value2,6 A
— at 24 V rated value40 A
— at 60 V rated value6 A
— at 110 V rated value2,5 A
— at 220 V rated value1 A
— at 440 V rated value0,15 A
— at 600 V rated value0,06 A
— at 24 V rated value100 A
— at 60 V rated value100 A
— at 110 V rated value100 A
— at 220 V rated value7 A
— at 440 V rated value0,42 A
— at 600 V rated value0,16 A
— at 24 V rated value100 A
— at 60 V rated value100 A
— at 110 V rated value100 A
— at 220 V rated value35 A
— at 440 V rated value0,8 A
— at 600 V rated value0,35 A
at AC-2 at 400 V rated value45 kW
— at 230 V rated value22 kW
— at 400 V rated value45 kW
— at 500 V rated value55 kW
— at 690 V rated value75 kW
— at 1000 V rated value37 kW
— at 230 V rated value22 kW
— at 400 V rated value45 kW
— at 500 V rated value55 kW
— at 690 V rated value75 kW
— at 1000 V rated value37 kW
at 400 V rated value22 kW
at 690 V rated value27,4 kW
up to 230 V for current peak value n=20 rated value33 kVA
up to 400 V for current peak value n=20 rated value58 kVA
up to 500 V for current peak value n=20 rated value73 kVA
up to 690 V for current peak value n=20 rated value69 kVA
up to 230 V for current peak value n=30 rated value22,4 kVA
up to 400 V for current peak value n=30 rated value39 kVA
up to 500 V for current peak value n=30 rated value48,7 kVA
up to 690 V for current peak value n=30 rated value67,3 kVA
limited to 1 s switching at zero current maximum1.725 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum1.297 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum946 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum610 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum486 A; Use minimum cross-section acc. to AC-1 rated value
at AC5.000 1/h
at AC-1 maximum900 1/h
at AC-2 maximum350 1/h
at AC-3 maximum850 1/h
— maximum850 1/h
at AC-4 maximum250 1/h
Control circuit/ Control
type of voltage of the control supply voltageAC
at 50 Hz rated value230 V
at 50 Hz0,8... 1,1
at 50 Hz296 V·A
at 50 Hz0,61
at 50 Hz19 V·A
at 50 Hz0,38
at AC13... 50 ms
at AC10... 21 ms
arcing time10... 20 ms
control version of the switch operating mechanismStandard A1 - A2
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact1
number of NO contacts for auxiliary contacts instantaneous contact1
operational current at AC-12 maximum10 A
at 230 V rated value6 A
at 400 V rated value3 A
at 500 V rated value2 A
at 690 V rated value1 A
at 24 V rated value10 A
at 48 V rated value6 A
at 60 V rated value6 A
at 110 V rated value3 A
at 125 V rated value2 A
at 220 V rated value1 A
at 600 V rated value0,15 A
at 24 V rated value10 A
at 48 V rated value2 A
at 60 V rated value2 A
at 110 V rated value1 A
at 125 V rated value0,9 A
at 220 V rated value0,3 A
at 600 V rated value0,1 A
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
UL/CSA ratings
at 480 V rated value96 A
at 600 V rated value77 A
— at 110/120 V rated value10 hp
— at 230 V rated value20 hp
— at 200/208 V rated value30 hp
— at 220/230 V rated value30 hp
— at 460/480 V rated value75 hp
— at 575/600 V rated value75 hp
contact rating of auxiliary contacts according to ULA600 / P600
Short-circuit protection
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA
— with type of coordination 1 requiredgG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA)
— with type of coordination 2 requiredgG: 160 A (690 V, 100 kA), aM: 100 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)
for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

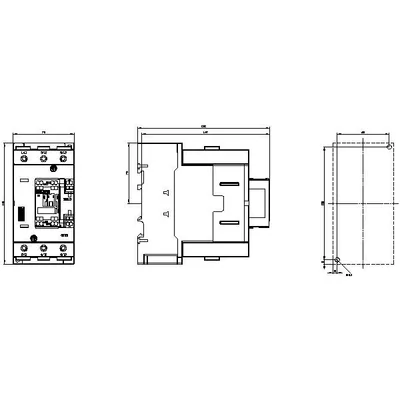

Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface
fastening method side-by-side mountingVar
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
height140 mm
width70 mm
depth152 mm
— forwards20 mm
— upwards10 mm
— downwards10 mm
— at the side0 mm
— forwards20 mm
— upwards10 mm
— at the side10 mm
— downwards10 mm
— forwards20 mm
— upwards10 mm
— downwards10 mm
— at the side10 mm
Connections/ Terminals
for main current circuitscrew-type terminals
for auxiliary and control circuitspring-loaded terminals
at contactor for auxiliary contactsSpring-type terminals
of magnet coilSpring-loaded terminal
— finely stranded with core end processing2x (2,5... 35 mm²), 1x (2,5... 50 mm²)
for AWG cables for main contacts2x (10... 1/0), 1x (10... 2/0)
solid2,5... 16 mm²
stranded6... 70 mm²
finely stranded with core end processing2,5... 50 mm²
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
finely stranded without core end processing0,5... 2,5 mm²
— solid or stranded2x (0,5... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²)
— finely stranded without core end processing2x (0,5... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16)
AWG number extended as coded connectable conductor cross section for main contacts10... 2/0
AWG number as coded connectable conductor cross section for auxiliary contacts20... 14
Safety related data
mirror contact according to IEC 60947-4-1Var
positively driven operation according to IEC 60947-5-1Yok
suitable for safety functionVar
suitability for use safety-related switching OFFVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192073 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing7,66 kg
global warming potential [CO2 eq] / during operation399 kg
global warming potential [CO2 eq] / after end of life-1.19 kg
global warming potential [CO2 eq] / total405 kg

Aksesuarlar 80

Siemens 3RT2046-3AP00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
3RH2911-2HA22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FA22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RT2946-4GAksesuar · Terminal covers · box terminal blocks
3RA2942-2FAksesuar · Base plates · base plates
3RH2911-2FA40Aksesuar · Auxiliary switch · auxiliary switches
3RT2936-1BD00Aksesuar · Surge suppressor · varistors
3RH2911-2HA11Aksesuar · Auxiliary switch · auxiliary switches
3RH2921-2DE11Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA31Aksesuar · Auxiliary switch · auxiliary switches
3RT2946-1CD00Aksesuar · Surge suppressor · RC elements
3RH2911-2HA12Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA40-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA01Aksesuar · Auxiliary switch · auxiliary switches
3RA2934-2BAksesuar · Mechanical interlocks · mechanical interlocks
3RH2911-2XA31-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RT2936-4MC00Aksesuar · Miscellaneous accessories · Control Kits
3RA2943-3LAksesuar · Plugs, adapters and terminals · infeed terminals
3RH2914-2GP11Aksesuar · Coupling links · coupling links
3RT2900-1SB10Aksesuar · Miscellaneous accessories · labeling plates
3RA2813-2FW10Aksesuar
3RT2916-4MA10Aksesuar · Sealing covers · sealing covers
3RT2900-1SB20Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60Aksesuar · Miscellaneous accessories · labeling plates
3RT1946-4BB31Aksesuar · Wiring modules, connectors and kits · coil connectors
3RA2816-0EW20Aksesuar
3RA2943-2AA1Aksesuar · Wiring modules, connectors and kits · wiring kits
3RT2926-1QT00Aksesuar · LED modules · LED display indicator modules
3RT2946-4FAksesuar · Terminal covers · auxiliary conductor terminals
3RH2911-2HA10Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA21Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA30Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NE21Aksesuar · Auxiliary switch · auxiliary switches
3RT2916-2BE01Aksesuar · OFF-delay device · OFF-delay device
3RT1946-4BA31Aksesuar · Wiring modules, connectors and kits · coil connectors
3RH2911-2FA04Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FB22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA04-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA11-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA13-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA20-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA03Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XB22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NL22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NL40Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NM31Aksesuar · Auxiliary switch · auxiliary switches
3RH2916-2XA22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2921-2DA20Aksesuar · Auxiliary switch · auxiliary switches
3RA2832-2DG10Aksesuar
3RH2921-2DA11Aksesuar · Auxiliary switch · auxiliary switches
3RA2932-2DAksesuar · Mechanical interlocks · mechanical connectors
3RA2943-2CAksesuar · Wiring modules, connectors and kits · wiring kits
3RA1943-3DAksesuar · Wiring modules, connectors and kits · link modules
3RA1943-3EAksesuar · Wiring modules, connectors and kits · link modules
3RA1953-3GAksesuar · Wiring modules, connectors and kits · link rails
3RA1954-2GAksesuar · Mechanical interlocks · mechanical connectors
3RH2911-2NF22Aksesuar · Auxiliary switch · auxiliary switches
3RH2916-2FA22Aksesuar · Auxiliary switch · auxiliary switches
3RA2813-2AW10Aksesuar
3RA2814-2AW10Aksesuar
3RA2814-2FW10Aksesuar
3RA2815-2AW10Aksesuar
3RA2815-2FW10Aksesuar
3RH2921-2DA02Aksesuar · Auxiliary switch · auxiliary switches
3RA2831-2DG10Aksesuar
3RA2832-2DH10Aksesuar
3RA2908-1AAksesuar · Miscellaneous accessories · screwdrivers
3RA2943-2BB1Aksesuar · Wiring modules, connectors and kits · wiring kits
3RH2911-2HA02Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA20Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FB11Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FB22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FC22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA13Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NF02Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NF11Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NF20Aksesuar · Auxiliary switch · auxiliary switches
3RA2831-2DH10Aksesuar
3RT2946-6AYedek parça · Contact pieces and vacuum interrupters · contacts
3RT2944-5AP01Yedek parça · Solenoid coils · solenoid coils

İlgili Ürünler

1EE1122-..A00-...4
Siemens 1EE1122-..A00-...4
Detayları Gör

Siemens

1EE1122-..A00-...4

MFR #1EE1122-..A00-...4

SKU #YLS3FGFZLYE3EV8

1EE1124-..A00-...4
Siemens 1EE1124-..A00-...4
Detayları Gör

Siemens

1EE1124-..A00-...4

MFR #1EE1124-..A00-...4

SKU #YLSKZIN1GEIPRVP

1EE1142-..A00-...4
Siemens 1EE1142-..A00-...4
Detayları Gör

Siemens

1EE1142-..A00-...4

MFR #1EE1142-..A00-...4

SKU #YLSUX3MNEZEJGPU

1EE1144-..A00-...4
Siemens 1EE1144-..A00-...4
Detayları Gör

Siemens

1EE1144-..A00-...4

MFR #1EE1144-..A00-...4

SKU #YLSD9GON9QOYBAE

1EE1322-....0-...4
Siemens 1EE1322-....0-...4
Detayları Gör

Siemens

1EE1322-....0-...4

MFR #1EE1322-....0-...4

SKU #YLSSAVZE8P7OOP6

1EE1322-...00-1..2
Siemens 1EE1322-...00-1..2
Detayları Gör

Siemens

1EE1322-...00-1..2

MFR #1EE1322-...00-1..2

SKU #YLSY69IQB2JXAXJ

1EE1322-..A00-...4
Siemens 1EE1322-..A00-...4
Detayları Gör

Siemens

1EE1322-..A00-...4

MFR #1EE1322-..A00-...4

SKU #YLSH1E6AJR6XWJF

1EE1324-....0-...4
Siemens 1EE1324-....0-...4
Detayları Gör

Siemens

1EE1324-....0-...4

MFR #1EE1324-....0-...4

SKU #YLS8GBB9BXAF83

1EE1324-...00-1..2
Siemens 1EE1324-...00-1..2
Detayları Gör

Siemens

1EE1324-...00-1..2

MFR #1EE1324-...00-1..2

SKU #YLSLOS6I1BDXR58

1EE1324-..A00-...4
Siemens 1EE1324-..A00-...4
Detayları Gör

Siemens

1EE1324-..A00-...4

MFR #1EE1324-..A00-...4

SKU #YLSE0T3LUEU0CI

Öne Çıkan Ürünler

AR30-N02E-1Z-B
SMC AR30-N02E-1Z-B
Detayları Gör

SMC

AR30-N02E-1Z-B

MFR #AR30-N02E-1Z-B

SKU #YLSYFNHADE6GRKV

MXQ25L-40B-M9NZ
SMC MXQ25L-40B-M9NZ
Detayları Gör

SMC

MXQ25L-40B-M9NZ

MFR #MXQ25L-40B-M9NZ

SKU #YLSD1VANMRI726Z

CDJ2L16-125Z-B
SMC CDJ2L16-125Z-B
Detayları Gör

SMC

CDJ2L16-125Z-B

MFR #CDJ2L16-125Z-B

SKU #YLS5V0RW2VJJR1A

VQ1200-51-Q
SMC VQ1200-51-Q
Detayları Gör

SMC

VQ1200-51-Q

MFR #VQ1200-51-Q

SKU #YLSOVA6N31QD04G

MDBB63-100Z
SMC MDBB63-100Z
Detayları Gör

SMC

MDBB63-100Z

MFR #MDBB63-100Z

SKU #YLSNBPQBGLI90UX

NCDMC150-0600-X155US
SMC NCDMC150-0600-X155US
Detayları Gör

SMC

NCDMC150-0600-X155US

MFR #NCDMC150-0600-X155US

SKU #YLS8ICKGSKYC93L

VM8001-5
Baldor VM8001-5
Detayları Gör

Baldor

VM8001-5

MFR #VM8001-5

SKU #YLS3TOWVXWW0DHP

AW20-N02CG-6CZ-B
SMC AW20-N02CG-6CZ-B
Detayları Gör

SMC

AW20-N02CG-6CZ-B

MFR #AW20-N02CG-6CZ-B

SKU #YLSNOOF0IBCZ3J3

MXQ25-40B-M9NZ
SMC MXQ25-40B-M9NZ
Detayları Gör

SMC

MXQ25-40B-M9NZ

MFR #MXQ25-40B-M9NZ

SKU #YLST5TX9LNATRNS

İlgili Aramalar

Siemens 3RT2046-3AP00 fiyatSiemens 3RT2046-3AP00 teklif alSiemens 3RT2046-3AP00 satın al3RT2046-3AP00 fiyat3RT2046-3AP00 stok durumuSiemens yedek parçaSiemens 3RT2046-3AP00 muadilSiemens 3RT2046-3AP00 teknik özellikler
