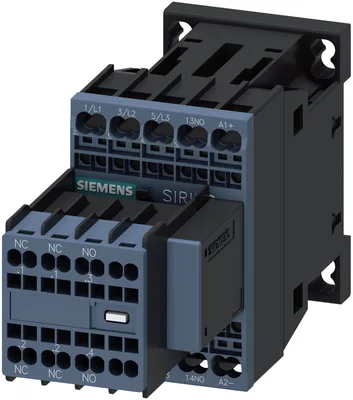

Siemens 3RT2016-2DB44

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3RT2016-2DB44

power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 24 V DC, with varistor plugged on, auxiliary contacts: 2 NO + 2 NC, spring-loaded terminal, size: S00, removable auxiliary switch

SiemensMFR # 3RT2016-2DB44SKU # CEY-8EF3B03932FB
product brand nameSIRIUS
product designationPower contactor
product type designation3RT2
size of contactorS00
function module for communicationYok
auxiliary switchYok
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 24 V DC, with varistor plugged on, auxiliary contacts: 2 NO + 2 NC, spring-loaded terminal, size: S00, removable auxiliary switch

Siemens 3RT2016-2DB44

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS
product designationPower contactor
product type designation3RT2
General technical data
size of contactorS00
function module for communicationYok
auxiliary switchYok
at AC in hot operating state0,9 W
at AC in hot operating state per pole0,3 W
without load current share typical4 W
type of calculation of power loss current-dependentquadratic
of main circuit with degree of pollution 3 rated value690 V
of auxiliary circuit with degree of pollution 3 rated value690 V
of main circuit rated value6 kV
of auxiliary circuit rated value6 kV
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V
at DC6,7 g / 5 ms, 4,2 g / 10 ms
at DC10,5 g / 5 ms, 6,6 g / 10 ms
of contactor typical10.000.000
of the contactor with added electronically optimized auxiliary switch block typical5.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)10/01/2009
Net Weight0,352 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
at AC-1 at 400 V at ambient temperature 40 °C rated value22 A
— up to 690 V at ambient temperature 40 °C rated value22 A
— up to 690 V at ambient temperature 60 °C rated value20 A
— at 400 V rated value9 A
— at 500 V rated value7,7 A
— at 690 V rated value6,7 A
— at 400 V rated value9 A
— at 500 V rated value7,7 A
— at 690 V rated value6,7 A
at AC-4 at 400 V rated value8,5 A
at AC-5a up to 690 V rated value19,4 A
at AC-5b up to 400 V rated value7,4 A
— up to 230 V for current peak value n=20 rated value5,3 A
— up to 400 V for current peak value n=20 rated value5,3 A
— up to 500 V for current peak value n=20 rated value5,3 A
— up to 690 V for current peak value n=20 rated value5 A
— up to 230 V for current peak value n=30 rated value3,5 A
— up to 400 V for current peak value n=30 rated value3,5 A
— up to 500 V for current peak value n=30 rated value3,6 A
— up to 690 V for current peak value n=30 rated value3,3 A
minimum cross-section in main circuit at maximum AC-1 rated value4 mm²
at 400 V rated value4,1 A
at 690 V rated value3,3 A
— at 24 V rated value20 A
— at 60 V rated value20 A
— at 110 V rated value2,1 A
— at 220 V rated value0,8 A
— at 440 V rated value0,6 A
— at 600 V rated value0,6 A
— at 24 V rated value20 A
— at 60 V rated value20 A
— at 110 V rated value12 A
— at 220 V rated value1,6 A
— at 440 V rated value0,8 A
— at 600 V rated value0,7 A
— at 24 V rated value20 A
— at 60 V rated value20 A
— at 110 V rated value20 A
— at 220 V rated value20 A
— at 440 V rated value1,3 A
— at 600 V rated value1 A
— at 24 V rated value20 A
— at 60 V rated value0,5 A
— at 110 V rated value0,15 A
— at 24 V rated value20 A
— at 60 V rated value5 A
— at 110 V rated value0,35 A
— at 24 V rated value20 A
— at 60 V rated value20 A
— at 110 V rated value20 A
— at 220 V rated value1,5 A
— at 440 V rated value0,2 A
— at 600 V rated value0,2 A
at AC-2 at 400 V rated value4 kW
— at 230 V rated value2,2 kW
— at 400 V rated value4 kW
— at 500 V rated value4 kW
— at 690 V rated value5,5 kW
— at 230 V rated value2,2 kW
— at 400 V rated value4 kW
— at 500 V rated value4 kW
— at 690 V rated value5,5 kW
at 400 V rated value2 kW
at 690 V rated value2,5 kW
up to 230 V for current peak value n=20 rated value2 kVA
up to 400 V for current peak value n=20 rated value3,6 kVA
up to 500 V for current peak value n=20 rated value4,6 kVA
up to 690 V for current peak value n=20 rated value5,9 kVA
up to 230 V for current peak value n=30 rated value1,3 kVA
up to 400 V for current peak value n=30 rated value2,4 kVA
up to 500 V for current peak value n=30 rated value3,1 kVA
up to 690 V for current peak value n=30 rated value4 kVA
limited to 1 s switching at zero current maximum155 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum111 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum86 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum66 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum55 A; Use minimum cross-section acc. to AC-1 rated value
at DC10.000 1/h
at AC-1 maximum1.000 1/h
at AC-2 maximum750 1/h
at AC-3 maximum750 1/h
— maximum750 1/h
at AC-4 maximum250 1/h
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value24 V
initial value0,8
full-scale value1,1
design of the surge suppressorwith varistor
closing power of magnet coil at DC4 W
holding power of magnet coil at DC4 W
at DC30... 100 ms
at DC7... 13 ms
arcing time10... 15 ms
control version of the switch operating mechanismStandard A1 - A2
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact2
number of NO contacts for auxiliary contacts instantaneous contact2
operational current at AC-12 maximum10 A
at 230 V rated value6 A
at 400 V rated value3 A
at 500 V rated value2 A
at 690 V rated value1 A
at 24 V rated value10 A
at 48 V rated value6 A
at 60 V rated value6 A
at 110 V rated value3 A
at 125 V rated value2 A
at 220 V rated value1 A
at 600 V rated value0,15 A
at 24 V rated value6 A
at 48 V rated value2 A
at 60 V rated value2 A
at 110 V rated value1 A
at 125 V rated value0,9 A
at 220 V rated value0,3 A
at 600 V rated value0,1 A
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
UL/CSA ratings
at 480 V rated value7,6 A
at 600 V rated value9 A
— at 110/120 V rated value0,33 hp
— at 230 V rated value1 hp
— at 200/208 V rated value2 hp
— at 220/230 V rated value3 hp
— at 460/480 V rated value5 hp
— at 575/600 V rated value7,5 hp
contact rating of auxiliary contacts according to ULA600 / Q600
Short-circuit protection
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA
— with type of coordination 1 requiredgG: 35 A (690 V,100 kA), aM: 20 A (690 V,100 kA), BS88: 35 A (415 V,80 kA)
— with type of coordination 2 requiredgG: 20 A (690 V, 100 kA), aM: 16 A (690 V, 100 kA), BS88: 20 A (415 V, 80 kA)
for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

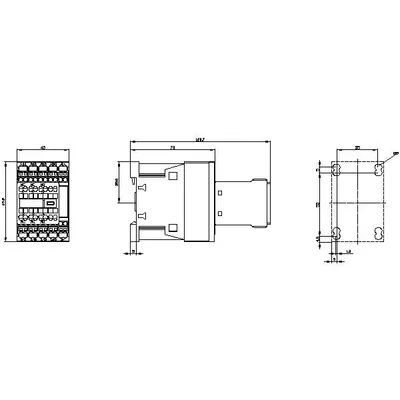

Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface
fastening method side-by-side mountingVar
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
height70 mm
width45 mm
depth121 mm
— forwards10 mm
— upwards10 mm
— downwards10 mm
— at the side0 mm
— forwards10 mm
— upwards10 mm
— at the side6 mm
— downwards10 mm
— forwards10 mm
— upwards10 mm
— downwards10 mm
— at the side6 mm

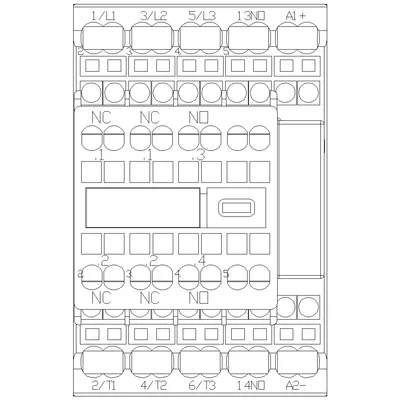

Connections/ Terminals
for main current circuitspring-loaded terminals
for auxiliary and control circuitspring-loaded terminals
at contactor for auxiliary contactsSpring-type terminals
of magnet coilSpring-loaded terminal
— solid2x (0,5... 4 mm²)
— solid or stranded2x (0,5... 4 mm²)
— finely stranded with core end processing2x (0,5... 2,5 mm²)
— finely stranded without core end processing2x (0,5... 2,5 mm²)
for AWG cables for main contacts2x (20... 12)
solid0,5... 4 mm²
stranded0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
finely stranded without core end processing0,5... 2,5 mm²
solid or stranded0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
finely stranded without core end processing0,5... 2,5 mm²
— solid or stranded2x (0,5... 4 mm²)
— finely stranded with core end processing2x (0,5... 2,5 mm²)
— finely stranded without core end processing2x (0,5... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 12)
AWG number as coded connectable conductor cross section for main contacts20... 12
AWG number as coded connectable conductor cross section for auxiliary contacts20... 12
Safety related data
mirror contact according to IEC 60947-4-1Var
positively driven operation according to IEC 60947-5-1Yok
suitable for safety functionVar
suitability for use safety-related switching OFFVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192073 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing1,42 kg
global warming potential [CO2 eq] / during operation152 kg
global warming potential [CO2 eq] / after end of life-0.305 kg
global warming potential [CO2 eq] / total153 kg

Aksesuarlar 85

Siemens 3RT2016-2DB44 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
3RA2912-2HAksesuar · Wiring modules, connectors and kits · wiring kits
3RH2911-2HA22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FA22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2DA11Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FA40Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA11Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA31Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA40-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA31-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RT1916-4KA1Aksesuar · Plugs, adapters and terminals · adapters
3RA2913-2AA2Aksesuar · Wiring modules, connectors and kits · wiring kits
3RT2916-4JA02Aksesuar · Miscellaneous accessories · insulation stops
3RT2900-1SB10Aksesuar · Miscellaneous accessories · labeling plates
3RT2916-4MA10Aksesuar · Sealing covers · sealing covers
3RT2900-1SB20Aksesuar · Miscellaneous accessories · labeling plates
3RA2816-0EW20Aksesuar
3RA2913-2BB2Aksesuar · Wiring modules, connectors and kits · wiring kits
3RT2916-1PA1Aksesuar · EMC suppression modules · EMC suppression modules
3RA2916-1AAksesuar · Wiring modules, connectors and kits · link modules
3RH2911-2HA12Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA01Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA04-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA20Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA13Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2DA20Aksesuar · Auxiliary switch · auxiliary switches
3RT2900-1SB60Aksesuar · Miscellaneous accessories · labeling plates
3RH2911-2HA10Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FA04Aksesuar · Auxiliary switch · auxiliary switches
3RA2908-1AAksesuar · Miscellaneous accessories · screwdrivers
3RH2911-2DE11Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FB22Aksesuar · Auxiliary switch · auxiliary switches
3RT2916-4BA32Aksesuar · Terminals · circuit connections
3RT2916-1PA2Aksesuar · EMC suppression modules · EMC suppression modules
3RH2911-2FC22Aksesuar · Auxiliary switch · auxiliary switches
3RA2913-3DA2Aksesuar · Wiring modules, connectors and kits · wiring kits
3RH2911-2NF11Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA02Aksesuar · Auxiliary switch · auxiliary switches
3RT1916-4BB31Aksesuar · Wiring modules, connectors and kits · coil connectors
3RH2911-2HA21Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA03Aksesuar · Auxiliary switch · auxiliary switches
3RT2916-4MC00Aksesuar · Miscellaneous accessories · Control Kits
3RH2911-2NF02Aksesuar · Auxiliary switch · auxiliary switches
3RH2914-2GP11Aksesuar · Coupling links · coupling links
3RH2911-2HA30Aksesuar · Auxiliary switch · auxiliary switches
3RA2813-2FW10Aksesuar
3RT2916-1GA00Aksesuar · Additional load modules · additional load modules
3RT2926-1QT00Aksesuar · LED modules · LED display indicator modules
3RA2811-2CW10Aksesuar
3RH2911-2FB11Aksesuar · Auxiliary switch · auxiliary switches
3RA2913-3EA2Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2814-2FW10Aksesuar
3RH2911-2DA02Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NE21Aksesuar · Auxiliary switch · auxiliary switches
3RA2813-2AW10Aksesuar
3RT2916-1PB1Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-1PA3Aksesuar · EMC suppression modules · EMC suppression modules
3RT1916-4KA2Aksesuar · Plugs, adapters and terminals · adapters
3RH2911-2NF22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NF20Aksesuar · Auxiliary switch · auxiliary switches
3RA2812-2DW10Aksesuar
3RT2916-2BL01Aksesuar · OFF-delay device · OFF-delay device
3RT2916-1PB2Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-2BE01Aksesuar · OFF-delay device · OFF-delay device
3RA2815-2AW10Aksesuar
3RT2916-1PB3Aksesuar · EMC suppression modules · EMC suppression modules
3RT2916-2BK01Aksesuar · OFF-delay device · OFF-delay device
3RA2814-2AW10Aksesuar
3RH2916-2FA22Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NL22Aksesuar · Auxiliary switch · auxiliary switches
3RR2241-2FW30Aksesuar
3RA2815-2FW10Aksesuar
3RH2916-2DA11Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FB22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA11-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA13-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA20-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XB22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2916-2XA22-0MA0Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NL40Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NM31Aksesuar · Auxiliary switch · auxiliary switches
3RR2141-2AA30Aksesuar
3RR2141-2AW30Aksesuar
3RR2241-2FA30Aksesuar
3RR2441-2AA40Aksesuar

İlgili Ürünler

1FE1042-6WR10-8NW2-ZV16
Siemens 1FE1042-6WR10-8NW2-ZV16
Detayları Gör

Siemens

1FE1042-6WR10-8NW2-ZV16

MFR #1FE1042-6WR10-8NW2-ZV16

SKU #YLSI4SFFMYLDLOP

1FE1042-6WT10-8NW2-ZV17
Siemens 1FE1042-6WT10-8NW2-ZV17
Detayları Gör

Siemens

1FE1042-6WT10-8NW2-ZV17

MFR #1FE1042-6WT10-8NW2-ZV17

SKU #YLSDS72NUUVUD8J

1FE1051-4.C.0-3WA.
Siemens 1FE1051-4.C.0-3WA.
Detayları Gör

Siemens

1FE1051-4.C.0-3WA.

MFR #1FE1051-4.C.0-3WA.

SKU #YLSWSTQEC5GRGUP

1FE1051-4.C.0-6.A.
Siemens 1FE1051-4.C.0-6.A.
Detayları Gör

Siemens

1FE1051-4.C.0-6.A.

MFR #1FE1051-4.C.0-6.A.

SKU #YLSD1CDQTFIBIZ

1FE1051-4.C.0-7.W.
Siemens 1FE1051-4.C.0-7.W.
Detayları Gör

Siemens

1FE1051-4.C.0-7.W.

MFR #1FE1051-4.C.0-7.W.

SKU #YLSSP2RJ84DMHGO

1FE1051-4.F.1-3WA.
Siemens 1FE1051-4.F.1-3WA.
Detayları Gör

Siemens

1FE1051-4.F.1-3WA.

MFR #1FE1051-4.F.1-3WA.

SKU #YLSBDXMHVY0QY0U

1FE1051-4.F.1-6.A.
Siemens 1FE1051-4.F.1-6.A.
Detayları Gör

Siemens

1FE1051-4.F.1-6.A.

MFR #1FE1051-4.F.1-6.A.

SKU #YLSDJAHMUKGQLT

1FE1051-4.F.1-7.W.
Siemens 1FE1051-4.F.1-7.W.
Detayları Gör

Siemens

1FE1051-4.F.1-7.W.

MFR #1FE1051-4.F.1-7.W.

SKU #YLSGBIASHRKVSZC

1FE1051-4.N.1-3W..
Siemens 1FE1051-4.N.1-3W..
Detayları Gör

Siemens

1FE1051-4.N.1-3W..

MFR #1FE1051-4.N.1-3W..

SKU #YLSL8C4BWBNKRU0

1FE1051-4.N.1-6...
Siemens 1FE1051-4.N.1-6...
Detayları Gör

Siemens

1FE1051-4.N.1-6...

MFR #1FE1051-4.N.1-6...

SKU #YLSABYCRWNZ16FG

Öne Çıkan Ürünler

MDBB63-100Z
SMC MDBB63-100Z
Detayları Gör

SMC

MDBB63-100Z

MFR #MDBB63-100Z

SKU #YLSNBPQBGLI90UX

CDJ2L16-125Z-B
SMC CDJ2L16-125Z-B
Detayları Gör

SMC

CDJ2L16-125Z-B

MFR #CDJ2L16-125Z-B

SKU #YLS5V0RW2VJJR1A

VQZ2121-5LO1-N3T
SMC VQZ2121-5LO1-N3T
Detayları Gör

SMC

VQZ2121-5LO1-N3T

MFR #VQZ2121-5LO1-N3T

SKU #YLSEL35MGGQ9FOL

NCDMC150-0600-X155US
SMC NCDMC150-0600-X155US
Detayları Gör

SMC

NCDMC150-0600-X155US

MFR #NCDMC150-0600-X155US

SKU #YLS8ICKGSKYC93L

ZCUKQ25-50D
SMC ZCUKQ25-50D
Detayları Gör

SMC

ZCUKQ25-50D

MFR #ZCUKQ25-50D

SKU #YLSQ684QXTNN958

VFSWDM3546T-5E
Baldor VFSWDM3546T-5E
Detayları Gör

Baldor

VFSWDM3546T-5E

MFR #VFSWDM3546T-5E

SKU #YLSRYYEFOOW6J5E

NCDJ2L10-300-B
SMC NCDJ2L10-300-B
Detayları Gör

SMC

NCDJ2L10-300-B

MFR #NCDJ2L10-300-B

SKU #YLSRRDWPL50RWQ2

MXQ25L-40B-M9NZ
SMC MXQ25L-40B-M9NZ
Detayları Gör

SMC

MXQ25L-40B-M9NZ

MFR #MXQ25L-40B-M9NZ

SKU #YLSD1VANMRI726Z

İlgili Aramalar

Siemens 3RT2016-2DB44 fiyatSiemens 3RT2016-2DB44 teklif alSiemens 3RT2016-2DB44 satın al3RT2016-2DB44 fiyat3RT2016-2DB44 stok durumuSiemens yedek parçaSiemens 3RT2016-2DB44 muadilSiemens 3RT2016-2DB44 teknik özellikler
