Siemens 3RQ4118-1AE01
çıkış coupler ile geçmeli röle, 115 V AC/DC, 1 change-over kontak, vidalı klemens, genişlik 6,2 mm, thermal akım 6 A, hard gold-plated
product brand nameSIRIUS
product designationCoupling relay with plug-in relay
design of the productoutput coupling link
product type designation3RQ4
display version LEDVar
relay outputVar
Ürün Hakkında
çıkış coupler ile geçmeli röle, 115 V AC/DC, 1 change-over kontak, vidalı klemens, genişlik 6,2 mm, thermal akım 6 A, hard gold-plated
Siemens 3RQ4118-1AE01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySIRIUS 3RQ4 coupling relay, narrow design
product designationCoupling relay with plug-in relay
design of the productoutput coupling link
product type designation3RQ4
manufacturer's article number of coupling relay usable3RQ4914-7BP02
General technical data
display version LEDVar
product feature protective coating on printed-circuit boardYok
relay outputVar
semi-conductor outputYok
power loss [W] maximum0,8 W
consumed active power0,5 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
surge voltage resistance rated value4 kV
between control and auxiliary circuit300 V
between control and auxiliary circuit according to IEC 60947-1300 V
percental drop-out voltage related to the input voltage9,6 %
protection class IPIP20
flammability class of enclosure materialUL94 V-0
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
according to IEC 60068-2-66... 150 Hz: 2 g
operating frequency maximum72.000 1/h
switching behaviormonostable
mechanical service life (operating cycles) typical10.000.000
at AC-15 at 250 V typical100.000
thermal current6 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)09/26/2024
Net Weight0,039 kg
Control circuit/ Control
at 50 Hz rated value115 V
at 60 Hz rated value115 V
1 rated value50 Hz
2 rated value60 Hz
control supply voltage at DC rated value115 V
initial value0,8
full-scale value1,1
initial value0,8
full-scale value1,1
initial value0,8
full-scale value1,1
inrush current maximum1 A
at AC maximum10 ms
at DC maximum6 ms
OFF-delay time maximum10 ms
Switching Function
design of the switching function positively drivenYok
Digital Outputs
property of the output short-circuit proofYok
Mechanical data
product component plug-in socketVar
design of the relay operating mechanismpoled
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 4 A
Auxiliary circuit
type of switching contactdouble contact
material of contact coatingGold
material of switching contactsAgSnO2 hard gold-plated
material of the contact insertThermoplastic
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts1
at 24 V3 A
at 250 V3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (5 V, 1 mA)
Main circuit
type of voltageAC/DC
ampacity of the output relay at AC-15 at 250 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
Electromagnetic compatibility
electromagnetic compatibilityacc. to EN 60947-5-1
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Display
display version as status display by LEDLED green
Connections/ Terminals
product function removable terminalYok
type of electrical connectionscrew terminal
solid1x (0,25... 2,5 mm²)
finely stranded with core end processing1x (0,25... 2,5 mm²), 2x (0,25... 1,5 mm²)
for AWG cables solid1x (20... 14), 2x (20... 16)
solid0,25... 2,5 mm²
finely stranded with core end processing0,25... 2,5 mm²
solid20... 14
tightening torque with screw-type terminals0,5... 0,6 N·m
size of the screwdriver tip3,0 x 0,5 mm
stripped length10 mm

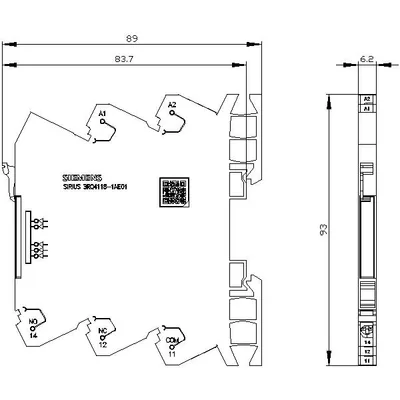

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height93 mm
width6,2 mm
depth88,5 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity during operation10... 95 %
Aksesuarlar 8
Siemens 3RQ4118-1AE01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RQ4901-0B | Aksesuar | |
| 3RQ4902-0B | Aksesuar | |
| 3RQ4902-0A | Aksesuar | |
| 3RQ4901-0D | Aksesuar | |
| 3RQ4900-0A | Aksesuar | |
| 3RQ4901-0A | Aksesuar | |
| 3RQ4901-0C | Aksesuar | |
| 3RQ4914-7BP00 | Yedek parça |
