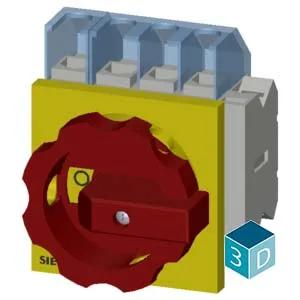

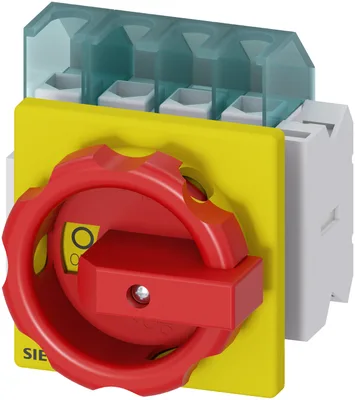

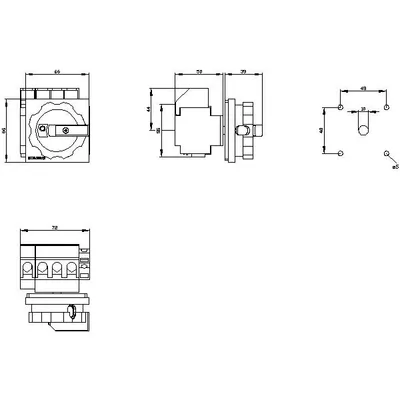

Siemens 3LD2103-2EP53
SENTRON, anahtar disconnector 3LD, EMERGENCY-OFF anahtar, 4- kutup, Iu: 25 A, operational güç / at AC-23 A at 400 V: 9,5 kW, front-mounted, 1 NC, 1 NO, döner çalışma mechanism, red/yellow, 4-hole montaj of the handle
product brand nameSENTRON
product designationSwitch disconnector
design of the productEMERGENCY-OFF switch
type of switchfront mounted
design of the actuating elementShort rotary knob
color of the actuating elementred
