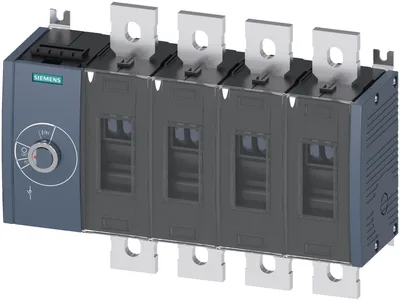

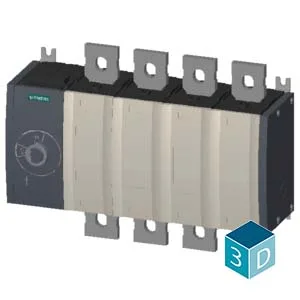

Siemens 3KD4844-0QE10-0

anahtar disconnector 800 A, boyut 4, 4-pole Lateral çalışma mechanism left temel ünite olmadan handle flat klemens

SiemensMFR # 3KD4844-0QE10-0SKU # CEY-8EF3B039670E

product brand nameSENTRON

product designation3KD switch disconnector

design of the productSwitch

design of the actuating elementWithout handle

type of the driving mechanismSide operating mechanism

number of poles4

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

anahtar disconnector 800 A, boyut 4, 4-pole Lateral çalışma mechanism left temel ünite olmadan handle flat klemens

Siemens 3KD4844-0QE10-0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model

product brand nameSENTRON

product designation3KD switch disconnector

design of the productSwitch

display version for switch position indicator door-coupling rotary operating mechanismON-OFF

design of the actuating elementWithout handle

type of the driving mechanismSide operating mechanism

type of the driving mechanism motor driveYok

General technical data

number of poles4

type of devicefixed mounting

size of switch disconnector4

mechanical service life (operating cycles) typical8.000

at AC-23 A at 690 V500

at DC-23 A at 440 V1.000

with closed switch at 1000 V for combination switch +gG/aM SITOR fuse maximum647.250 A²·s

of the fuse at 500 V maximum permissible10.400.005 A²·s

of the gG/aM SITOR fuse at 1000 V maximum permissible520.000 A²·s

of the molded case circuit breaker at 415 V maximum permissible16.000.000 A²·s

position of the switch operating mechanismthe left end

overvoltage in percent relative to the operating voltage at AC at 400, 500, 690 V at 50/60 Hz10 %

overvoltage categoryIV

degree of pollution3

Voltage

with degree of pollution 2 at DC rated value440 V / 3

with degree of pollution 3 at DC rated value440 V / 3

rated value1.000 V

surge voltage resistance rated value12 kV

operational current at AC-22 A at 1000 V maximum800 A

let-through current of the fuse at 500 V maximum permissible118.000 A

let-through current of the gG fuse at 690 V maximum permissible90.600 A

Besleme gerilimi

operating voltage at AC rated value1.000 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per pole25 W

with conventional rated thermal current per device100 W

for rated value of the current at AC in hot operating state per pole25 W

Main circuit

at AC-23 A at 500 V rated value560 kW

operational current rated value800 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts8

number of NO contacts for auxiliary contacts8

Suitability

suitability for use main switchVar

suitability for use switch disconnectorVar

suitability for use EMERGENCY OFF switchVar

suitability for use according to IEC 62626-1 safety switchYok

suitability for use maintenance/repair switchVar

Product details

product feature interlockYok

trip indicatorYok

voltage triggerYok

undervoltage releaseYok

undervoltage release with leading contactYok

product extension auxiliary switchVar

product extension optional motor driveYok

product extension optional voltage triggerYok

Short circuit

short-time withstand current (Icw) at 1000 V AC/440 V DC limited to 1 s rated value30 kA

at 1000 V AC without fuse link rated value minimum80 kA

at DC 440 V without fuse link rated value minimum42,6 kA

without fuse link rated value minimum80 kA

at 415 V by molded case circuit breaker rated value65 kA

at 500 V by gG fuse rated value100 kA

at 690 V by gG fuse rated value100 kA

Connections

stranded with lug1x (25... 240 mm²), 2x (25... 240 mm²)

with combination of Al conductor+switch620 A / 2 x 240 mm²

for copper busbar'1 x (40 x 10 mm²), 2 x (40 x 5 mm²)

stranded with lug according to DIN 462341x (120... 240 mm²), 2x (95... 240 mm²)

stranded with lug according to DIN 462351x (120... 240 mm²), 2x (95... 240 mm²)

type of electrical connection for main current circuitflat connector

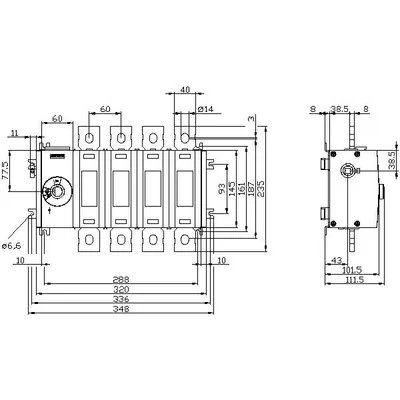

Mechanical Design

height235 mm

width331 mm

depth112 mm

fastening methodscrew fixing

4-hole front mountingYok

front mounting with central attachmentYok

rail mountingYok

mounting positionany

Net Weight9.242 g

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Certificates

reference code according to IEC 81346-2Q
