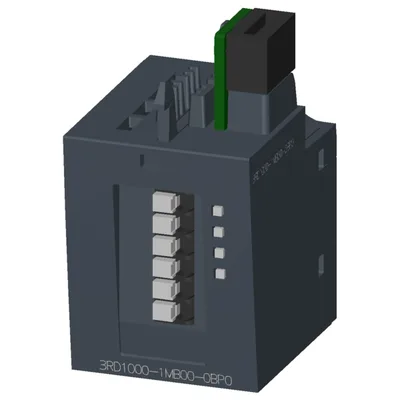

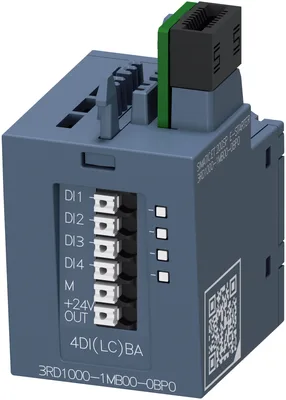

Siemens 3RD1000-1MB00-0BP0
SIMATIC ET 200SP e-Starter temel 4DI (LC) submodule
product brand nameSIMATIC
product designation4DI (LC) submodule
design of the productBasic
product type designationET 200SP
ramp-up (soft starting)Yok
soft stoppingYok
Ürün Hakkında
Siemens 3RD1000-1MB00-0BP0 (SIMATIC ET 200SP e-Starter temel 4DI (LC) submodule), Yılsa Mühendislik güvencesiyle orijinal ve hızlı şekilde tedarik edilir. Siemens 3RD1000-1MB00-0BP0 fiyatı, stok durumu ve teknik özellikleri için hemen teklif alın.
Siemens 3RD1000-1MB00-0BP0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC
product designation4DI (LC) submodule
design of the productBasic
product type designationET 200SP
Product Function
ramp-up (soft starting)Yok
soft stoppingYok
Soft TorqueYok
Safe Torque Off (STO) via F-DIYok
Safe Torque Off (STO) via PROFIsafeYok
current limitationYok
creep speed in both directions of rotationYok
pump stopYok
min/max pointerVar
trace functionYok
stationary state detectionYok
switching of capacitive loadsYok
Smart StartVar
torque controlYok
reversing brakesYok
detection of direction of rotationVar
General technical data
on-site operationVar
for power supply reverse polarity protectionVar
for sensor supply short-circuit protectionVar
with 24 V sensor supply short-circuit protectionVar
diagnostics function short-circuit detectionVar
display version for diagnostic function: Status display transmission channel channel status LEDVar
noteGreen LED
shock resistance6 g / 11 ms (3 Schocks), 9 g / 6 ms (1000 Schocks)
vibration resistancef = 5... 8,5 Hz, dmax = 3,5 mm; 8,5... 26,9 Hz, amax = 10 m/s²/ f = 26,9... 60,1 Hz, dmax = 0,35 mm / f = 60,1... 500 Hz, amax = 50 m/s² / 10 cycles
Substance Prohibitance (day/month/year)10/01/2024
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight0,028 kg
Short-circuit protection
product function short circuit protectionVar
Protective and monitoring functions
product function active power monitoringYok
Safety related data
product function suitable for safety functionYok
safety-related switching onYok
safety-related switching OFFYok
test wear-related service life necessaryYok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
ATEX
ATEXYok
IECExYok
Inputs/ Outputs
digital inputs parameterizableVar
digital outputs parameterizableYok
at the standard inputs at rated input voltage parameterizable input delay timeYok
for signal <0> to <1> at rated input voltage6... 10 ms
for signal <1> to <0> at rated input voltage6... 10 ms
number of digital inputs4
digital input version type 1 acc. to IEC 61131Var
operating voltage as input voltage minimum permissible0 V
operating voltage as input voltage maximum permissible30 V
value range of the input voltage at digital input for signal <0> detection-30... +5 V
value range of the input voltage at digital input for signal <1> detection+15... +30 V
input voltage at digital input at DC rated value24 V
input current at digital input for signal <1> typical9 mA
output voltage19,4... 28,8 V
type of output voltage for sensor supplyDC
output voltage for sensor supply minimum19,2 V
output current for sensor supply maximum0,1 A
output current for sensor supply at 60 °C maximum0,1 A
wire length of sensor maximum30 m

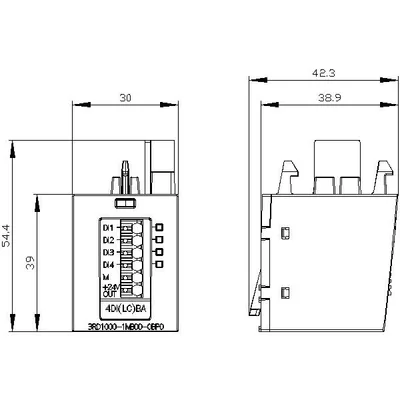

Installation/ mounting/ dimensions
mounting positiondikey, yatay
fastening methodcan be plugged onto e-starters
height54,5 mm
width30 mm
depth42,3 mm
Ambient conditions
installation altitude at height above sea level maximum4.000 m
during operation-25... +40 °C
during storage-40... +70 °C
during transport-40... +70 °C
relative humidity during operation10... 95 %
air pressure according to SN 31205900... 1.060 hPa
Communication/ Protocol
protocol is supported PROFIsafe protocolYok
Connections/ Terminals
type of electrical connection for auxiliary and control circuitspring-loaded terminals (push-in)
type of connecting terminalpush-in terminal
solid or stranded0,2... 1,5 mm²
finely stranded with core end processing0,25... 1,5 mm²
finely stranded without core end processing0,2... 1,5 mm²
AWG number as coded connectable conductor cross section for auxiliary contacts24... 16
shape of the screwdriver tipSlot
size of the screwdriver tipStandard screwdriver 0,6 mm x 3,5 mm
Aksesuarlar 2
Siemens 3RD1000-1MB00-0BP0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RD1000-0BA00-0EP0 | Uyumlu ürün | |
| 3RD1000-0BB00-0EP0 | Uyumlu ürün |
