Siemens 3RD1000-0BA00-0EP0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

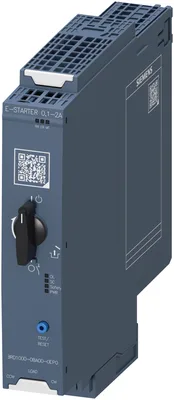

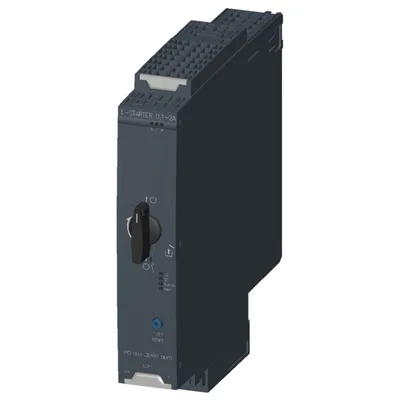

Siemens 3RD1000-0BA00-0EP0

SIMATIC ET 200SP e-Starter 0,1 - 2,0 A reversing starter elektronik kısa devre koruması

SiemensMFR # 3RD1000-0BA00-0EP0SKU # YLS75HBP4PHKDE1
product brand nameSIMATIC
product designatione-Starter
design of the productreversing starter
product type designationET 200SP
of supplied fan unit3RD1000-1FS00-0BP0
of the optionally available fan unit3RD1000-1FD00-0BP0
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIMATIC ET 200SP e-Starter 0,1 - 2,0 A reversing starter elektronik kısa devre koruması

Siemens 3RD1000-0BA00-0EP0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMATIC
product designatione-Starter
design of the productreversing starter
product type designationET 200SP
of supplied fan unit3RD1000-1FS00-0BP0
of the optionally available fan unit3RD1000-1FD00-0BP0
of the optionally available basic 4DI (LC) submodule3RD1000-1MB00-0BP0
of the optionally available standard 4DI (LC) submodule3RD1000-1MS00-0BP0
General technical data
product function external resetVar
design of the overcurrent releaseETU
equipment version according to IEC 60947-4-22
on-site operationVar
intrinsic device protectionVar
adjustable current limitationVar
remote firmware updateVar
bus communicationVar
for power supply reverse polarity protectionVar
at AC in hot operating state1,4 W
at AC in hot operating state per pole0,46 W
without load current share typical5,5 W
type of calculation of power loss current-dependentquadratic
insulation voltage rated value500 V
degree of pollution3
overvoltage categoryIII
surge voltage resistance rated value6 kV
maximum permissible voltage for protective separation between main and auxiliary circuit500 V
degree of protection NEMA rating1
shock resistance6 g / 11 ms (3 Schocks), 9 g / 6 ms (1000 Schocks)
vibration resistancef = 5... 8,5 Hz, dmax = 3,5 mm; 8,5... 26,9 Hz, amax = 10 m/s²/ f = 26,9... 60,1 Hz, dmax = 0,35 mm / f = 60,1... 500 Hz, amax = 50 m/s² / 10 cycles
operating frequency maximum0,19 1/s
type of coordination2
utilization categoryAC-3a
according to IEC 60947-4-2AC-3a
according to IEC 60947-4-3AC-1
reference code according to IEC 81346-2Q
reference code according to IEC 81346-2:2019Q
reference code according to IEC 81346-2:2024Q
continuous current at AC-1 rated value3 A
continuous current at AC-3 rated value2 A
Substance Prohibitance (day/month/year)10/01/2024
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,667 kg
Motor control functions
direct startVar
reverse startingVar
product component motor brake outputYok
Short-circuit protection
product function short circuit protectionVar; resettable
design of short-circuit protectionfully electronic
at 230 V rated value100.000 A
at 400 V rated value100.000 A
at 240 V rated value100 kA
at 415 V rated value100 kA
at 440 V rated value100 kA
Protective and monitoring functions
type of protection function of the overcurrent releaseLI
manual RESETVar
temperature-compensated overload protectionVar
trip classCLASS 10A / 10E / 20E
at 400 V rated value100 kA
at 480 V rated value100 kA
at 480 V according to UL 60947 rated value100 kA
at 400 V rated value100 kA
at 480 V rated value100 kA
response value current of instantaneous short-circuit trip unit33,9 A
Safety related data
safe stateLoad circuit open
MTBF33 a; 40 °C
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Main circuit
number of poles for main current circuit3
design of the switching contactsolid-state
adjustable current response value current of the current-dependent overload release at AC-10,1... 3 A
adjustable current response value current of the current-dependent overload release at AC-30,1... 2 A
minimum load [%]10 %; Relative to smallest settable Ie
type of the motor protectionsolid-state
480 V
208... 480 V
relative symmetrical tolerance of the operating voltage5 %
operating frequency 1 rated value50 Hz
operating frequency 2 rated value60 Hz
relative symmetrical tolerance of the operating frequency5 %
relative positive tolerance of the operating frequency5 %
relative negative tolerance of the operating frequency5 %
at AC at 400 V rated value2 A
at AC-1 at 400 V at ambient temperature 40 °C rated value3 A
at AC-3 at 400 V rated value2 A
at AC-53a at 400 V at ambient temperature 40 °C rated value2 A
ampacity when starting maximum14,4 A
at AC-3 at 400 V rated value0,75 kW
at AC-3 at 230 V 3 phase rated value0,46 kW
at AC-53a at 400 V rated value0,75 kW
operating power for 3-phase motors at 400 V at 50 Hz0,06... 0,75 kW
derating temperature40 °C
Inputs/ Outputs
number of digital inputs4
note4 via 4DI(LC) submodule
of the inputs16 bayt
of the outputs4 bayt
Besleme gerilimi
type of voltage of the supply voltageDC
in standby mode of operation125 mA
during operation190 mA
at switching on of motor190 mA
control supply voltage at DC rated value20,4... 28,8 V
inrush current peak at 24 V50 A
duration of inrush current peak at 24 V0,2 ms
ON-delay time80 ms
OFF-delay time40 ms
Power Electronics
at 230 V rated value0,4 hp
at 200/208 V rated value0,5 hp
at 220/230 V rated value0,6 hp
at 460/480 V rated value1,2 hp

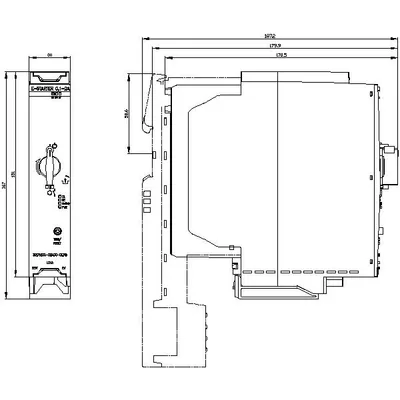

Installation/ mounting/ dimensions
fastening methodpluggable in BaseUnit
height151 mm
width30 mm
depth167 mm
Ambient conditions
during operation-25... +60 °C; For derating see manual
during transport-40... +70 °C
with upper limit without restrictions40 °C
Communication/ Protocol
supports PROFIenergy measured valuesYok
supports PROFIenergy shutdownYok
Connections/ Terminals
for main current circuitplug-in contact to base unit
for auxiliary and control circuitplug-in contact to base unit
1 for digital input signalsplug-in contact to 4DI (LC) submodule
2 for digital input signalsplug-in contact to 4DI (LC) submodule
for main energy infeedPlug contact to Base Unit
for load-side outgoing feederPlug contact to Base Unit
for supply voltage line-sidePlug contact to Base Unit
wire length for motor unshielded maximum200 m
UL/CSA ratings
full-load current (FLA) for 3-phase AC motor at 480 V rated value2 A
conditional short-circuit current (Iq) with type of coordination 1 at 480 AC Y/277 V rated value100.000 A

Aksesuarlar 28

Siemens 3RD1000-0BA00-0EP0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
3RC7940-1TE02Aksesuar · Accessories
3RA2923-2MB2Aksesuar
3RA2923-2LB2Aksesuar
3RV2321-4DC20Seçmeli zorunlu ürün
3RV2321-4CC20Seçmeli zorunlu ürün
3RV2321-4BC20Seçmeli zorunlu ürün
3RV2321-4AC20Seçmeli zorunlu ürün
3RV2321-1KC20Seçmeli zorunlu ürün
3RV2321-1JC20Seçmeli zorunlu ürün
3RV2321-1HC20Seçmeli zorunlu ürün
3RV2321-1GC20Seçmeli zorunlu ürün
3RV2321-1FC20Seçmeli zorunlu ürün
3RV2321-1EC20Seçmeli zorunlu ürün
3RT2027-2BB40Seçmeli zorunlu ürün
3RT2026-2BB40Seçmeli zorunlu ürün
3RT2024-2BB40Seçmeli zorunlu ürün
3RC7940-0TE40Seçmeli zorunlu ürün
3RC7940-0TE30Seçmeli zorunlu ürün
3RC7940-0TE05Seçmeli zorunlu ürün
3RC7940-0TE04Seçmeli zorunlu ürün
3RC7940-0TE03Seçmeli zorunlu ürün
3RC7940-0TE20Seçmeli zorunlu ürün
3RC7940-0TE10Seçmeli zorunlu ürün
3RC7940-0TE02Seçmeli zorunlu ürün
6ES7193-6AS00-0AA0Seçmeli zorunlu ürün · BusAdapter
6ES7193-6BN00-0NE0Seçmeli zorunlu ürün · BaseUnit
3RV2321-4EC20Seçmeli zorunlu ürün
3RV2321-4NC20Seçmeli zorunlu ürün
