Siemens 3RD1000-0BB00-0EP0 için nasıl fiyat teklifi alabilirim?

Siemens 3RD1000-0BB00-0EP0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSGHMIRHZYFB36 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RD1000-0BB00-0EP0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RD1000-0BB00-0EP0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RD1000-0BB00-0EP0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

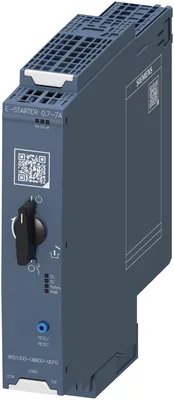

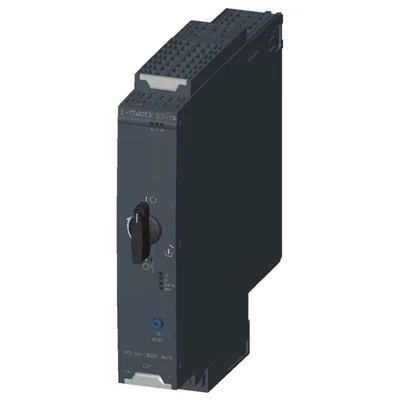

Siemens 3RD1000-0BB00-0EP0

SIMATIC ET 200SP e-Starter 0,7 - 7,0 A reversing starter elektronik kısa devre koruması

SiemensMFR # 3RD1000-0BB00-0EP0SKU # YLSGHMIRHZYFB36

product brand nameSIMATIC

product designatione-Starter

design of the productreversing starter

product type designationET 200SP

of supplied fan unit3RD1000-1FS00-0BP0

of the optionally available fan unit3RD1000-1FD00-0BP0

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIMATIC ET 200SP e-Starter 0,7 - 7,0 A reversing starter elektronik kısa devre koruması

Siemens 3RD1000-0BB00-0EP0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMATIC

product designatione-Starter

design of the productreversing starter

product type designationET 200SP

of supplied fan unit3RD1000-1FS00-0BP0

of the optionally available fan unit3RD1000-1FD00-0BP0

of the optionally available basic 4DI (LC) submodule3RD1000-1MB00-0BP0

of the optionally available standard 4DI (LC) submodule3RD1000-1MS00-0BP0

General technical data

product function external resetVar

design of the overcurrent releaseETU

equipment version according to IEC 60947-4-22

on-site operationVar

intrinsic device protectionVar

adjustable current limitationVar

remote firmware updateVar

bus communicationVar

for power supply reverse polarity protectionVar

at AC in hot operating state8,1 W

at AC in hot operating state per pole2,7 W

without load current share typical5,5 W

type of calculation of power loss current-dependentquadratic

insulation voltage rated value500 V

degree of pollution3

overvoltage categoryIII

surge voltage resistance rated value6 kV

maximum permissible voltage for protective separation between main and auxiliary circuit500 V

degree of protection NEMA rating1

shock resistance6 g / 11 ms (3 Schocks), 9 g / 6 ms (1000 Schocks)

vibration resistancef = 5... 8,5 Hz, dmax = 3,5 mm; 8,5... 26,9 Hz, amax = 10 m/s²/ f = 26,9... 60,1 Hz, dmax = 0,35 mm / f = 60,1... 500 Hz, amax = 50 m/s² / 10 cycles

operating frequency maximum0,19 1/s

type of coordination2

utilization categoryAC-3a

according to IEC 60947-4-2AC-3a

according to IEC 60947-4-3AC-1

reference code according to IEC 81346-2Q

reference code according to IEC 81346-2:2019Q

reference code according to IEC 81346-2:2024Q

continuous current at AC-1 rated value9 A

continuous current at AC-3 rated value7 A

Substance Prohibitance (day/month/year)10/01/2024

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,655 kg

Motor control functions

direct startVar

reverse startingVar

product component motor brake outputYok

Short-circuit protection

product function short circuit protectionVar; resettable

design of short-circuit protectionfully electronic

at 230 V rated value100.000 A

at 400 V rated value100.000 A

at 240 V rated value100 kA

at 415 V rated value100 kA

at 440 V rated value100 kA

Protective and monitoring functions

type of protection function of the overcurrent releaseLI

manual RESETVar

temperature-compensated overload protectionVar

trip classCLASS 10A / 10E / 20E

at 400 V rated value100 kA

at 480 V rated value100 kA

maximum short-circuit current breaking capacity (Icu) in the IT network at 400 V rated value100 kA

response value current of instantaneous short-circuit trip unit115,1 A

Safety related data

safe stateLoad circuit open

MTBF33 a; 40 °C

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Main circuit

number of poles for main current circuit3

design of the switching contactsolid-state

minimum load [%]10 %; Relative to smallest settable Ie

type of the motor protectionsolid-state

480 V

208... 480 V

relative symmetrical tolerance of the operating voltage5 %

operating frequency 1 rated value50 Hz

operating frequency 2 rated value60 Hz

relative symmetrical tolerance of the operating frequency5 %

relative positive tolerance of the operating frequency5 %

relative negative tolerance of the operating frequency5 %

at AC at 400 V rated value7 A

at AC-1 at 400 V at ambient temperature 40 °C rated value9 A

at AC-3 at 400 V rated value7 A

at AC-53a at 400 V at ambient temperature 40 °C rated value7 A

ampacity when starting maximum50,4 A

at AC-3 at 400 V rated value3 kW

at AC-3 at 230 V 3 phase rated value1,73 kW

at AC-53a at 400 V rated value3 kW

operating power for 3-phase motors at 400 V at 50 Hz0,18... 3 kW

derating temperature40 °C

Inputs/ Outputs

number of digital inputs4

note4 via 4DI(LC) submodule

of the inputs16 bayt

of the outputs4 bayt

Besleme gerilimi

type of voltage of the supply voltageDC

in standby mode of operation125 mA

during operation190 mA

at switching on of motor190 mA

control supply voltage at DC rated value20,4... 28,8 V

inrush current peak at 24 V50 A

duration of inrush current peak at 24 V0,2 ms

ON-delay time80 ms

OFF-delay time40 ms

Power Electronics

at 230 V rated value1,4 hp

at 200/208 V rated value2,1 hp

at 220/230 V rated value2,3 hp

at 460/480 V rated value4,9 hp

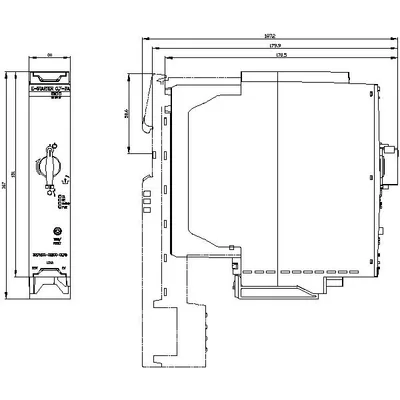

Installation/ mounting/ dimensions

fastening methodpluggable in BaseUnit

height151 mm

width30 mm

depth167 mm

Ambient conditions

during operation-25... +60 °C; For derating see manual

during transport-40... +70 °C

with upper limit without restrictions40 °C

Communication/ Protocol

supports PROFIenergy measured valuesYok

supports PROFIenergy shutdownYok

Connections/ Terminals

for main current circuitplug-in contact to base unit

for auxiliary and control circuitplug-in contact to base unit

1 for digital input signalsplug-in contact to 4DI (LC) submodule

2 for digital input signalsplug-in contact to 4DI (LC) submodule

for main energy infeedPlug contact to Base Unit

for load-side outgoing feederPlug contact to Base Unit

for supply voltage line-sidePlug contact to Base Unit

wire length for motor unshielded maximum200 m

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor at 480 V rated value7 A

conditional short-circuit current (Iq) with type of coordination 1 at 480 AC Y/277 V rated value100.000 A

Aksesuarlar 8

Siemens 3RD1000-0BB00-0EP0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RD1000-1MB00-0BP0	Aksesuar
3RD1000-1FD00-0BP0	Aksesuar
3RD1000-1MS00-0BP0	Aksesuar
3RD1000-1FS00-0BP0	Bileşen
3RK1908-0AP00-0AP0	Seçmeli zorunlu ürün · Accessories
3RK1908-0AP00-0BP0	Seçmeli zorunlu ürün · Accessories
3RK1908-0AP00-0CP0	Seçmeli zorunlu ürün · Accessories
3RK1908-0AP00-0DP0	Seçmeli zorunlu ürün · Accessories
