How can I get a price quote for Siemens 6XV1881-2A?

You can request a fast quote for Siemens 6XV1881-2A from Yılsa Engineering. Reference part number CEY-8EF3B0383365. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1881-2A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1881-2A genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1881-2A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1881-2A

Industrial Ethernet FastConnect TP robust food cable GP 2x2 (PROFINET type C), TP installation cable for for use in the food and luxury food industry, 4-core shielded Cat5e, sold by the meter delivery unit max. 1000 m, minimum order quantity: 20 m.

SiemensMFR # 6XV1881-2ASKU # CEY-8EF3B0383365

product brand nameSIMATIC NET

cable designationSF/UTP, 2YY(ST)CY6Y 2X2X0.75/1.55 LI VZN

wire lengthsold by the meter

at 10 MHz / maximum0.095 dB/m

at 100 MHz / maximum0.32 dB/m

at 1 MHz ... 100 MHz100 Ω

Have questions?Chat on WhatsApp

About This Product

Siemens 6XV1881-2A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useCable with FEP jacket (fluorinated plastic, perfluoroethylene propylene) for use in the food, beverages and tobacco industries (IP65/67/69 resistant, EHEDG approval). Line is water-repellent, weather-proof, resistant to microbes, and extremely resistant to many cleaning agents and disinfectants (such as hypochlorite, chlorine dioxide, peroxyacetic acid, and quaternary ammonium cations).

cable designationSF/UTP, 2YY(ST)CY6Y 2X2X0.75/1.55 LI VZN

wire lengthsold by the meter

electrical data

at 10 MHz / maximum0.095 dB/m

at 100 MHz / maximum0.32 dB/m

at 1 MHz ... 100 MHz100 Ω

of the characteristic impedance at 1 MHz … 100 MHz5 %

at 1 MHz ... 100 MHz0.353 dB/m

transfer impedance per length / at 10 MHz80 mΩ/m

loop resistance per length / maximum120 mΩ/m

RMS value80 V

NVP value in percent69 %

mechanical data

number of electrical cores4

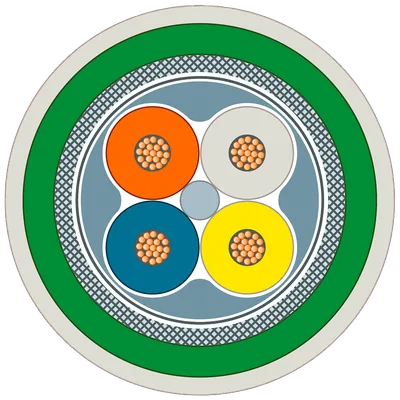

design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

type of electrical connection / FastConnectYes

of AWG22 insulated conductor0.75 mm

of inner conductor0.75 mm

of the wire insulation1.56 mm

of the inner sheath of the cable4 mm

of cable sheath6.5 mm

symmetrical tolerance of the outer diameter / of cable sheath0.2 mm

of the wire insulationpolyethylene (PE)

of the inner sheath of the cablePVC

of cable sheathPVC/FEP; FEP transparent

of the insulation of data wireswhite/yellow/blue/orange

of cable sheathgreen

with single bend / minimum permissible26 mm

with multiple bends / minimum permissible52 mm

with continuous bending100 mm

number of bending cycles500000; Acceleration 4 m/s²

number of torsion cycles / with torsion by ± 180° on 1 m cable length1000000

tensile load / maximum150 N

weight per length72 kg/km

ambient conditions

during operation-40 ... +80 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during installation-40 ... +80 °C

noteElectrical properties measured at 20 °C, tests according to DIN VDE 0472

fire behaviorflame resistant according to IEC 60332-1-2

class of burning behaviour / according to EN 13501-6Eca

to mineral oiloil resistant according to IEC 60811-404 (7x24h/90°C)

to greaseConditional resistance

to waterresistant

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

PoE capabilityYes

PoE+ capabilityYes

silicon-freeYes

with 100BaseTX85 m

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; c(ETL)us 3047254, CMG FT4 75°C, (ETL)us PLTC-ER, SUN RES, OIL RES I or E130266 AWM 22162 AWM I A/B 80°C 600V

UL/ETL style / 600 V RatingNo

EAC approvalYes

CE markingYes

RoHS conformityYes

for hygienic designEHEDG, Installation and layout of the cables must fulfil the requirements of EHEDG published in the Guidelines Doc. 13 'Hygienic Design of open equipment for processing food' and Doc. 44 'Hygienic Design Principles for food factories' to be accessible for cleaning. Also connections must be easily cleanable by using EHEDG certified cable glands or connectors.

standard for structured cablingCat5e

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Accessories 20

Genuine accessories that can be used with the Siemens 6XV1881-2A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1901-1GA00	Aksesuar
6GK1901-1GB01	Aksesuar
6GK1901-0DB20-6AA0	Aksesuar
6GK1901-0DM30-2AA5	Aksesuar
6GK1901-1BB10-2AA0	Aksesuar
6GK1901-1BB10-2AB0	Aksesuar
6GK1901-1BB10-2AE0	Aksesuar
6GK1901-1BB10-6AA0	Aksesuar
6GK1901-1BB12-2AB0	Aksesuar
6GK1901-1BB12-2AE0	Aksesuar
6GK1901-1BB20-2AA0	Aksesuar
6GK1901-1BB20-2AB0	Aksesuar
6GK1901-1BB20-2AE0	Aksesuar
6GK1901-1BB20-6AA0	Aksesuar
6GK1901-1BB21-6AA0	Aksesuar
6GK1901-1BB30-0AA0	Aksesuar
6GK1901-1BB30-0AB0	Aksesuar
6GK1901-1BB30-0AE0	Aksesuar
6GK1901-1FC00-0AA0	Aksesuar · Cabling system
6GK1901-1BB50-0AA0	Aksesuar
