How can I get a price quote for Siemens 6GT2821-5AC10?

You can request a fast quote for Siemens 6GT2821-5AC10 from Yılsa Engineering. Reference part number CEY-8EF3B0385B15. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2821-5AC10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2821-5AC10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2821-5AC10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

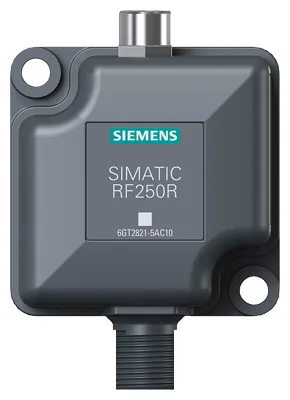

Siemens 6GT2821-5AC10

SIMATIC RF200 Reader RF250R with RS422 interface (3964R) without antenna IP65, -25 to +70 °C, 50x 50x 30 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30.

SiemensMFR # 6GT2821-5AC10SKU # CEY-8EF3B0385B15

product brand nameSIMATIC RF

operating frequency / rated value13.56 MHz

protocol / with radio transmissionISO 15693, ISO 18000-3

product feature / multitag-capableNo

for write access / per byte / typical0.6 ms

for read access / per byte / typical0.6 ms

Have questions?Chat on WhatsApp

About This Product

SIMATIC RF200 Reader RF250R with RS422 interface (3964R) without antenna IP65, -25 to +70 °C, 50x 50x 30 mm, can be operated with: ANT 1, 3, 3NO, 8, 12, 18, 30.

Siemens 6GT2821-5AC10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for operationISO 15693 Transponder (MDS Dxxx), for connecting to communication modules

radio frequencies

operating frequency / rated value13.56 MHz

protocol / with radio transmissionISO 15693, ISO 18000-3

transfer rate / with radio transmission / maximum26.5 kbit/s

product feature / multitag-capableNo

electrical data

transfer rate / at the point-to-point connection / serial / maximum115.2 kbit/s

for write access / per byte / typical0.6 ms

for read access / per byte / typical0.6 ms

interfaces

number of external antennas1

standard for interfaces / for communicationRS422

for external antenna(s)M8, 4-pin

for communications interfaceM12, 8-pin

mechanical data

materialPA6.6

coloranthracite

tightening torque / of the screw for securing the equipment / maximum1.5 N·m

mounting distance / relating to metal surfaces / recommended / minimum0 mm

supply voltage, current consumption, power loss

rated value24 V

20.4 ... 28.8 V

at 24 V / typical0.05 A

ambient conditions

during operation-20 ... +70 °C

during storage-25 ... +80 °C

during transport-25 ... +80 °C

protection class IPIP65

shock resistanceEN 60721-3-7 Class 7 M2

shock acceleration500 m/s²

vibrational acceleration200 m/s²

design, dimensions and weights

width50 mm

height30 mm

depth50 mm

net weight0.06 kg

fastening method2 x M5 screws

for RS 422 interface / maximum1000 m

product features, product functions, product components / general

display version3-color LED

product feature / silicon-freeYes

standards, specifications, approvals

certificate of suitabilityRadio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus

IECExNo

MTBF430 a

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total50.4 kg

during manufacturing10.7 kg

during operation39.4 kg

after end of life0.3 kg

accessories

accessoriesVarious antennas are available

Accessories 23

Genuine accessories that can be used with the Siemens 6GT2821-5AC10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7137-6BD00-0BA0	Aksesuar · IO-Link
6ES7138-4GA50-0AB0	Aksesuar · Technology module
6ES7147-4JD00-0AB0	Aksesuar · IO-Link
6ES7147-5JD00-0BA0	Aksesuar · IO-Link
6ES7148-6JA00-0AB0	Aksesuar · IO-Link
6ES7148-6JD00-0AB0	Aksesuar · IO-Link
6ES7278-4BD32-0XB0	Aksesuar · Communication module
6GT2398-1CB00	Aksesuar · Antenna · RFID
6GT2398-1CD40-0AX0	Aksesuar · Antenna · RFID
6GT2398-1CD60-0AX0	Aksesuar · Antenna · RFID
6GT2398-1CF10	Aksesuar · Antenna · RFID
6GT2398-1DA10	Aksesuar · Antenna · RFID
6GT2398-1DC10	Aksesuar · Antenna · RFID
6GT2398-1DD10	Aksesuar · Antenna · RFID
6GT2891-4LH50	Aksesuar · Cables · serial cable
6GT2891-4LH50-0AX0	Aksesuar · Cables · serial cable
6GT2891-4LN10	Aksesuar · Cables · serial cable
6GT2891-4MH50	Aksesuar · Cables · serial cable
6GT2891-4MN10	Aksesuar · Cables · serial cable
6GT2898-0AC00	Aksesuar
6GT2898-0AC01	Aksesuar · Cables · power cables
6GT2898-0AC10	Aksesuar
6GT2898-0AC20	Aksesuar
