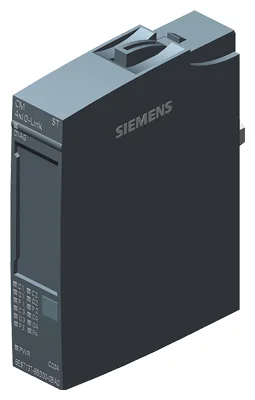

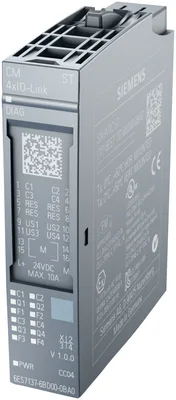

Siemens 6ES7137-6BD00-0BA0

SIMATIC ET 200SP, CM 4xIO-Link ST Communication module IO-Link Master V1.1

SiemensMFR # 6ES7137-6BD00-0BA0SKU # CEY-937FC77EA1F1

Product type designationCM 4 x IO-Link ST

HW functional statusFS20

Firmware versionV2.2.2

FW update possibleYes

usable BaseUnitsBU type A0

I&M dataYes; I&M0 to I&M3

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, CM 4xIO-Link ST Communication module IO-Link Master V1.1

Siemens 6ES7137-6BD00-0BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCM 4 x IO-Link ST

HW functional statusFS20

Firmware versionV2.2.2

FW update possibleYes

usable BaseUnitsBU type A0

Color code for module-specific color-coded labelCC04

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo; Only for PROFINET and configuration as version with FW V2.0 or V2.1

Engineering with

STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V15 or higher

STEP 7 configurable/integrated from versionSTEP 7 V5.5 or higher

PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revisionGSDML V2.3

Operating mode

IO-LinkYes

DIYes

DQYes; max. 100 mA per channel

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

power supply according to NEC Class 2 requiredNo

Input current

Current consumption, max.45 mA; without load

Encoder supply

Number of outputs4

Output current

Rated value700 mA; Per channel

24 V encoder supply

Short-circuit protectionYes

Output current, max.2.1 A

Power loss

Power loss, typ.1 W

Hardware configuration

Automatic encodingYes

Electronic coding element type HYes

Cable length

unshielded, max.20 m; Also applies for shielded cables

IO-Link

Number of ports4

of which simultaneously controllable4

IO-Link protocol 1.0Yes

IO-Link protocol 1.1Yes

Transmission rate4.8 kBaud (COM1); 38.4 kBaud (COM2), 230.4 kBaud (COM3)

Cycle time, min.2 ms; dynamic, depending on user data length

Size of process data, input per port32 byte; max.

Size of process data, input per module144 byte; max.

Size of process data, output per port32 byte; max.

Size of process data, output per module128 byte; max.

Memory size for device parameter2 kbyte; for each port

Master backupYes

Configuration without S7-PCTYes

Cable length unshielded, max.20 m

Time Based IO

TIO IO-Link INNo; Only for PROFINET and configuration as version with FW V2.0 or V2.1

TIO IO-Link OUTNo; Only for PROFINET and configuration as version with FW V2.0 or V2.1

TIO IO-Link IN/OUTNo; Only for PROFINET and configuration as version with FW V2.0 or V2.1

Connection of IO-Link devices

Port type AYes

Port type BYes; 24 V DC via external terminal

via three-wire connectionYes

Alarms

Diagnostic alarmYes; The port diagnosis is available in the IO-Link mode only.

Diagnoses

Monitoring the supply voltageYes

Wire breakYes

Short-circuitYes

Group errorYes

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; one green LED for channel status Qn (SIO mode) and port status Cn (IO-Link mode) per channel

for channel diagnosticsYes; red Fn LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsNo

Isolation

Isolation tested with707 V DC (type test)

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]25.2 kg

— global warming potential, (during production) [CO2 eq]6.15 kg

— global warming potential, (during operation) [CO2 eq]19.4 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.289 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m; On request: Installation altitudes greater than 2 000 m

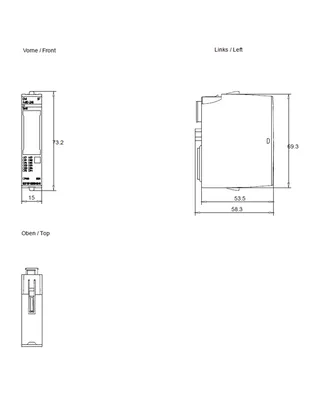

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.30 g
