How can I get a price quote for Siemens 6ES7278-4BD32-0XB0?

You can request a fast quote for Siemens 6ES7278-4BD32-0XB0 from Yılsa Engineering. Reference part number CEY-8EF3B03870D2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7278-4BD32-0XB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7278-4BD32-0XB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7278-4BD32-0XB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

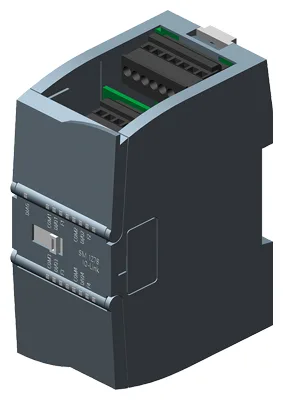

Siemens 6ES7278-4BD32-0XB0

SIMATIC S7-1200, SM1278 IO-Link, 4xIO-Link Master

SiemensMFR # 6ES7278-4BD32-0XB0SKU # CEY-8EF3B03870D2

Product type designationSM 1278 4xIO-Link master

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Power loss, typ.1 W

Diagnostics functionYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7278-4BD32-0XB0 (SIMATIC S7-1200, SM1278 IO-Link, 4xIO-Link Master) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 6ES7278-4BD32-0XB0 — price, stock availability and technical specifications.

Siemens 6ES7278-4BD32-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1278 4xIO-Link master

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Power loss

Power loss, typ.1 W

Interrupts/diagnostics/status information

Diagnostics functionYes

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.-20 °C

max.60 °C

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

permissible temperature change5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Connection method

required front connectorYes

Mechanics/material

PlasticYes

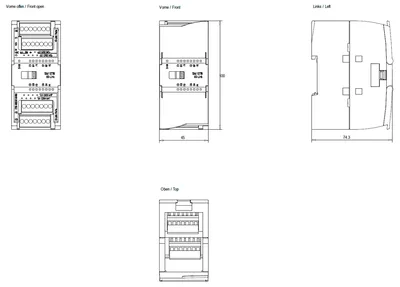

Dimensions

Width45 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.150 g

Accessories 4

Genuine accessories that can be used with the Siemens 6ES7278-4BD32-0XB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7291-1BA30-0XA0	Yedek parça · spare part
6ES7292-1AG30-0XA0	Yedek parça · spare part
6ES7292-2AG30-0XA0	Yedek parça · spare part
6ES7291-1CC30-0XA0	Yedek parça · spare part
