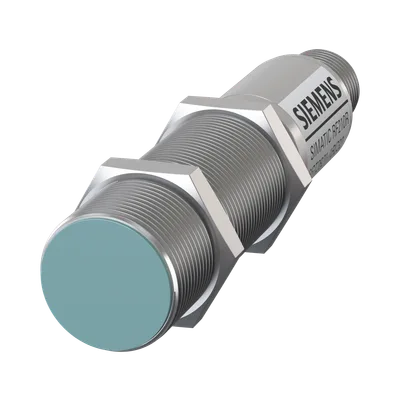

Siemens 6GT2821-1BC32

Please observe national approvals: www.siemens.com/rfid-approvals IO-Link interface V1.1; IP67, -25 to +70 °C; M18x 83 mm; with integrated antenna 32 Byte IO; 230 Kbit/s

SiemensMFR # 6GT2821-1BC32SKU # YLSTAIR4UHSXNC

product brand nameSIMATIC RF

operating frequency / rated value13.56 MHz

protocol / with radio transmissionISO 15693, ISO 18000-3

product feature / multitag-capableNo

for write access / per byte / typical3.3 ms

for read access / per byte / typical2.4 ms

Have questions?Chat on WhatsApp

About This Product

Please observe national approvals: www.siemens.com/rfid-approvals IO-Link interface V1.1; IP67, -25 to +70 °C; M18x 83 mm; with integrated antenna 32 Byte IO; 230 Kbit/s

Siemens 6GT2821-1BC32

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for operationISO 15693 transponder (MDS Dxxx), for connecting to IO-Link Master V1.1

radio frequencies

operating frequency / rated value13.56 MHz

protocol / with radio transmissionISO 15693, ISO 18000-3

transfer rate / with radio transmission / maximum26.5 kbit/s

product feature / multitag-capableNo

electrical data

transfer rate / at the point-to-point connection / serial / maximum230 kbit/s

for write access / per byte / typical3.3 ms

for read access / per byte / typical2.4 ms

data volume / of the address range of the inputs / total32 byte

data volume / of the address range of the outputs / total32 byte

interfaces

standard for interfaces / for communicationIO-Link V1.1

type of electrical connectionM12, 4-pin

mechanical data

materialBrass, nickel-plated / PBT

colorsilver/pastel turquoise

tightening torque / of the screw for securing the equipment / maximum20 N·m

mounting distance / relating to metal surfaces / recommended / minimum0 mm

supply voltage, current consumption, power loss

rated value24 V

20.4 ... 28.8 V

at 24 V / typical0.05 A

ambient conditions

during operation-20 ... +70 °C

during storage-25 ... +80 °C

during transport-25 ... +80 °C

protection class IPIP67

shock resistanceEN 60721-3-7 Class 7 M2

shock acceleration500 m/s²

vibrational acceleration200 m/s²

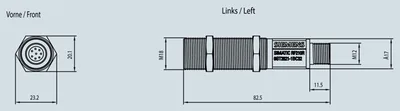

design, dimensions and weights

height83 mm

diameter18 mm

net weight0.065 kg

fastening method2 nuts M18 x 1 (included in scope of supply)

between master and IO-Link device / maximum20 m

product features, product functions, product components / general

display version3-color LED

product feature / silicon-freeYes

standards, specifications, approvals

certificate of suitabilityRadio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus

IECExNo

MTBF505 a

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total43.51 kg

during manufacturing10.7 kg

during operation32.51 kg

after end of life0.3 kg

Accessories 12

Genuine accessories that can be used with the Siemens 6GT2821-1BC32 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7137-6BD00-0BA0	Aksesuar · IO-Link
6ES7138-4GA50-0AB0	Aksesuar · Technology module
6ES7147-4JD00-0AB0	Aksesuar · IO-Link
6ES7147-5JD00-0BA0	Aksesuar · IO-Link
6ES7148-6JA00-0AB0	Aksesuar · IO-Link
6ES7148-6JD00-0AB0	Aksesuar · IO-Link
6ES7278-4BD32-0XB0	Aksesuar · Communication module
6GT2891-4LH50	Aksesuar · Cables · serial cable
6GT2891-4LH50-0AX0	Aksesuar · Cables · serial cable
6GT2891-4LN10	Aksesuar · Cables · serial cable
6GT2891-4MH50	Aksesuar · Cables · serial cable
6GT2891-4MN10	Aksesuar · Cables · serial cable
