Siemens 6GT2821-1AC32

SIMATIC RF200 reader RF210R IO-Link IO-Link interface IP67, -25 to +70 °C; M18x 83 mm; with integrated antenna 8 Byte IO; 38.4 Kbit/s.

SiemensMFR # 6GT2821-1AC32SKU # CEY-8EF3B0385B1B

product brand nameSIMATIC RF

operating frequency / rated value13.56 MHz

protocol / with radio transmissionISO 15693, ISO 18000-3

product feature / multitag-capableNo

for write access / per byte / typical40 ms

for read access / per byte / typical40 ms

Have questions?Chat on WhatsApp

About This Product

SIMATIC RF200 reader RF210R IO-Link IO-Link interface IP67, -25 to +70 °C; M18x 83 mm; with integrated antenna 8 Byte IO; 38.4 Kbit/s.

Siemens 6GT2821-1AC32

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for operationISO 15693 transponder (MDS Dxxx), for connecting to IO-Link Master V1.0

radio frequencies

operating frequency / rated value13.56 MHz

protocol / with radio transmissionISO 15693, ISO 18000-3

transfer rate / with radio transmission / maximum26.5 kbit/s

product feature / multitag-capableNo

electrical data

transfer rate / at the point-to-point connection / serial / maximum38.4 kbit/s

for write access / per byte / typical40 ms

for read access / per byte / typical40 ms

data volume / of the address range of the inputs / total8 byte

data volume / of the address range of the outputs / total8 byte

interfaces

standard for interfaces / for communicationIO-Link V1.0

type of electrical connectionM12, 4-pin

mechanical data

materialBrass, nickel-plated / PBT

colorsilver/pastel turquoise

tightening torque / of the screw for securing the equipment / maximum20 N·m

mounting distance / relating to metal surfaces / recommended / minimum0 mm

supply voltage, current consumption, power loss

rated value24 V

20.4 ... 28.8 V

at 24 V / typical0.05 A

ambient conditions

during operation-20 ... +70 °C

during storage-25 ... +80 °C

during transport-25 ... +80 °C

protection class IPIP67

shock resistanceEN 60721-3-7 Class 7 M2

shock acceleration500 m/s²

vibrational acceleration200 m/s²

design, dimensions and weights

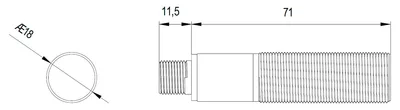

height83 mm

diameter18 mm

net weight0.065 kg

fastening method2 nuts M18 x 1 (included in scope of supply)

between master and IO-Link device / maximum20 m

product features, product functions, product components / general

display version3-color LED

product feature / silicon-freeYes

standards, specifications, approvals

certificate of suitabilityRadio according to R&TTE guidelines EN300 330 and EN 301489, FCC, cULus

IECExNo

MTBF505 a

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total43.51 kg

during manufacturing10.7 kg

during operation32.51 kg

after end of life0.3 kg
