How can I get a price quote for Siemens 6GT2811-6AB20-2AA0?

You can request a fast quote for Siemens 6GT2811-6AB20-2AA0 from Yılsa Engineering. Reference part number CEY-8EF3B0385E28. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2811-6AB20-2AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2811-6AB20-2AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2811-6AB20-2AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

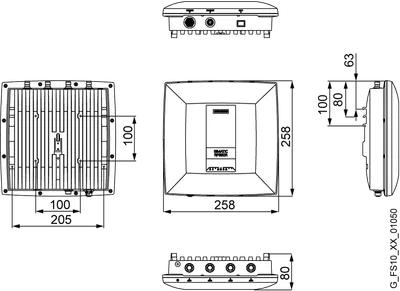

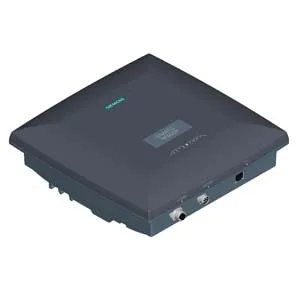

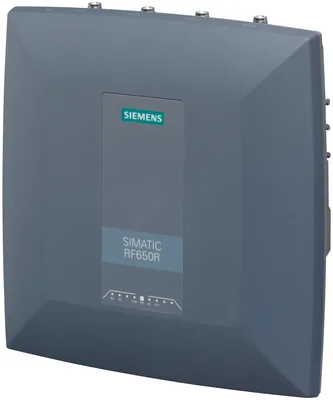

Siemens 6GT2811-6AB20-2AA0

SIMATIC RF600 Reader RF650R CMIIT; Interfaces: Ethernet RJ45 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP30; -25 to +55 °C; without accessories and antennas.

SiemensMFR # 6GT2811-6AB20-2AA0SKU # CEY-8EF3B0385E28

product brand nameSIMATIC RF

operating frequency920 ... 925 MHz

transmit power3 ... 1000 mW

for each external antenna / maximum2000 mW

product feature / multitag-capableYes

for write access / per byte / typical2 ms

Have questions?Chat on WhatsApp

About This Product

SIMATIC RF600 Reader RF650R CMIIT; Interfaces: Ethernet RJ45 4 antennas, 4 dig. inputs/ 4 dig. outputs, 24 V DC; IP30; -25 to +55 °C; without accessories and antennas.

Siemens 6GT2811-6AB20-2AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for operationRF600 transponder, for connecting via Ethernet, OPC UA server integrated

radio frequencies

operating frequency920 ... 925 MHz

transmit power3 ... 1000 mW

for each external antenna / maximum2000 mW

protocol / with radio transmissionEPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62/-63

transfer rate / with radio transmission / maximum400 kbit/s

product feature / multitag-capableYes

electrical data

for write access / per byte / typical2 ms

for read access / per byte / typical0.15 ms

interfaces

number of external antennas4

standard for interfaces / for communicationEthernet, OPC UA

for external antenna(s)RP-TNC

for supply voltageM12, 8-pin, connector

for communications interfaceRJ45

at the digital inputs/outputsM12, 12-pin, female connector

number of digital inputs4

number of digital outputs4

mechanical data

materialAluminum, Pocan

colorsilver, TI-Grey

mounting distance / relating to metal surfaces / recommended / minimum0 mm

supply voltage, current consumption, power loss

rated value24 V

20 ... 30 V

at 24 V / typical0.37 A

at 24 V / maximum2 A

ambient conditions

during operation-25 ... +55 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

ambient condition / for operationWith operating temperature below -20 °C: Warming-up time at least 10 minutes

protection class IPIP30

shock resistanceEN 60068-2-27, EN 60068-2-6

shock acceleration250 m/s²

vibrational acceleration30 m/s²

resistance to mechanical stressThe maximum values for shock and vibration acceleration must not occur as continuous stress and they apply exclusively to assembly using screws

design, dimensions and weights

width258 mm

height258 mm

depth80 mm

net weight2.4 kg

fastening methodVesa 100 with 4 x M4 screws, top-hat rail 35 mm, profile rail S7-300, S7-1200 or S7-1500

of antenna cable / minimum1 m

of antenna cable / maximum40 m

product features, product functions, product components / general

display versionLED row with 6 LEDs

protocol / is supported / Media Redundancy Protocol (MRP)No

product function / of the PROFINET IO device / is supported / H-Sync forwardingNo

LLDPYes

PROFINET IO protocolNo

TCP/IPYes

SNMP v1Yes

SNMP v2No

SNMP v3Yes

DCPYes

EtherNet/IP protocolNo

OPC UAYes

product feature / silicon-freeYes

product functions / management, configuration, engineering

type of parameterizationWBM

type of programmingOPC UA, XML

type of computer-switched communicationTCP/IP

standards, specifications, approvals

certificate of suitabilitywireless acc. to CMIIT, OPC UA: embedded UA Server Profile

IECExNo

MTBF31 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total313.9 kg

during manufacturing71.5 kg

during operation241.53 kg

after end of life0.87 kg

accessories

accessoriesup to 4 external antennas, set for mounting on top-hat rail or profile rail

Accessories 20

Genuine accessories that can be used with the Siemens 6GT2811-6AB20-2AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GT2890-2AB10	Aksesuar
6GT2891-0PH50	Aksesuar · Cables · power cables
6GT2891-4EH50	Aksesuar · Cables · serial cable
6GT2898-0AC00	Aksesuar
6GT2898-0AC10	Aksesuar
6GT2898-0AC20	Aksesuar
6GT2890-0BC00	Aksesuar
6GT2898-4AA10	Aksesuar
6GT2890-0AB00	Aksesuar
6GT2891-0CH50	Aksesuar · Cables · serial cable
6XV1870-3QN10	Aksesuar · Cables · network cable electrical
6XV1871-5BH10	Aksesuar · Cables · network cable electrical
6XV1871-5BH20	Aksesuar · Cables · network cable electrical
6XV1871-5BH30	Aksesuar · Cables · network cable electrical
6XV1871-5BH50	Aksesuar · Cables · network cable electrical
6XV1871-5BN10	Aksesuar · Cables · network cable electrical
6XV1871-5BN12	Aksesuar · Cables · network cable electrical
6XV1871-5BN15	Aksesuar · Cables · network cable electrical
6XV1871-5BN20	Aksesuar · Cables · network cable electrical
6XV1871-5BN30	Aksesuar · Cables · network cable electrical
