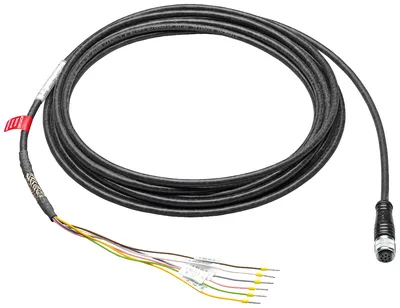

Siemens 6GT2891-4EH50
SIMATIC RF, MV plug-in cable, with bare end, between ASM 475 and reader, or 24 V cable for RF61XR, RF650R, RF68XR, PUR, trailing, length 5 m.
product brand nameSIMATIC RF
cable designationL-YC11Y 6x1x0.25 6x24AWG CM
wire length5 m
number of electrical connections2
loop resistance per length / maximum160 mΩ/m
insulation resistance coefficient20 GΩ·m
About This Product
SIMATIC RF, MV plug-in cable, with bare end, between ASM 475 and reader, or 24 V cable for RF61XR, RF650R, RF68XR, PUR, trailing, length 5 m.
Siemens 6GT2891-4EH50
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIMATIC RF
suitability for usePlug-in cable for connecting a reader to the ASM 475 communication module or 24V power supply of the RF61xR, RF650R and RF68xR readers
cable designationL-YC11Y 6x1x0.25 6x24AWG CM
wire length5 m
electrical data
number of electrical connections2
type of electrical connectionwire end sleeves (labeled) / M12 (female, 8 pin, straight)
loop resistance per length / maximum160 mΩ/m
insulation resistance coefficient20 GΩ·m
maximum300 V
mechanical data
number of electrical cores6
design of the shieldBraided shield made of tin-plated copper wires
of cable sheath5.4 mm
symmetrical tolerance of the outer diameter / of cable sheath0.2 mm
of the wire insulationPVC
of cable sheathPUR
of the insulation of data wiresDIN 47100
of cable sheathBlack
with single bend / minimum permissible21.6 mm
with multiple bends / minimum permissible43 mm
with continuous bending75 mm
number of bending cycles3000000
tensile load / maximum200 N
weight per length45 kg/km
ambient conditions
during operation-30 ... +80 °C
during storage-30 ... +80 °C
during transport-30 ... +80 °C
during installation-30 ... +80 °C
fire behaviorflame resistant according to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oilresistant
to greaseresistant
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeNo
silicon-freeYes
standards, specifications, approvals
UL/ETL listing / 300 V RatingYes; CM (only cable without plug)
EAC approvalYes
