How can I get a price quote for Siemens 6GT2891-0CH50?

You can request a fast quote for Siemens 6GT2891-0CH50 from Yılsa Engineering. Reference part number CEY-8EF3B0385B08. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2891-0CH50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2891-0CH50 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2891-0CH50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

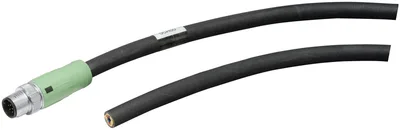

Siemens 6GT2891-0CH50

SIMATIC RF600 DI/DO Cable connector for RF650R reader, RF670R, RF68XR, M12, 12x 0.14 mm2, shielded, material PUR, IP67; Length 5 m, open on one side.

SiemensMFR # 6GT2891-0CH50SKU # CEY-8EF3B0385B08

product brand nameSIMATIC RF

cable designationLSPYwC11Y

wire length5 m

number of electrical connections2

type of electrical connectionM12 (male, 12 pin, straight) / open

loop resistance per length / maximum284 mΩ/m

Have questions?Chat on WhatsApp

About This Product

SIMATIC RF600 DI/DO Cable connector for RF650R reader, RF670R, RF68XR, M12, 12x 0.14 mm2, shielded, material PUR, IP67; Length 5 m, open on one side.

Siemens 6GT2891-0CH50

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for useCable for wiring sensors/actuators to the RF650R, RF670R, RF68xR at the customer's end

cable designationLSPYwC11Y

wire length5 m

electrical data

number of electrical connections2

type of electrical connectionM12 (male, 12 pin, straight) / open

loop resistance per length / maximum284 mΩ/m

insulation resistance coefficient10 GΩ·m

maximum42 V

mechanical data

number of electrical cores12

design of the shieldBraided shield made of tin-plated copper wires

of cable sheath8.5 mm

symmetrical tolerance of the outer diameter / of cable sheath0.2 mm

of the wire insulationPVC

of cable sheathPUR

of the insulation of data wiresDIN 47100

of cable sheathBlack

with single bend / minimum permissible42.5 mm

with multiple bends / minimum permissible85 mm

with continuous bending85 mm

number of bending cycles2000000

weight per length87 kg/km

ambient conditions

during operation-5 ... +80 °C

during storage-30 ... +80 °C

during transport-30 ... +80 °C

during installation-5 ... +80 °C

fire behaviorflame resistant according to IEC 60332-1-2, VW-1

to mineral oilresistant according to DIN EN 60811-2-1

to greaseresistant according to DIN EN 60811-2-1

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

standards, specifications, approvals

UL/ETL listing / 300 V RatingNo
