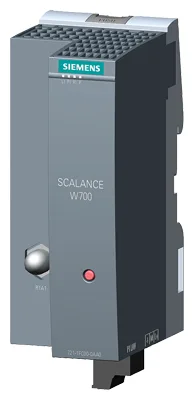

Siemens 6GK5721-1FC00-0AA0
Please observe national approvals: www.siemens.com/wireless-approvals RJ45, 1 radio, 1 R-SMA antenna port, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 150 Mbps, 1x RJ45 max. 100 Mbps, 24 V DC, joint block, IP20, 0... +55 °C, WPA2/802.11i/e, observe national approvals! CERT ID: ELN-W1-RJ-E1, scope of supply: manuals on CD-ROM, German/English, 1x joint block; for operation outside of USA/Israel ..
product brand nameSCALANCE
with WLAN / maximum150 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
for power supply1
for redundant voltage supply0
for power supply3-pole screw terminal
About This Product
Please observe national approvals: www.siemens.com/wireless-approvals RJ45, 1 radio, 1 R-SMA antenna port, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 150 Mbps, 1x RJ45 max. 100 Mbps, 24 V DC, joint block, IP20, 0... +55 °C, WPA2/802.11i/e, observe national approvals! CERT ID: ELN-W1-RJ-E1, scope of supply: manuals on CD-ROM, German/English, 1x joint block; for operation outside of USA/Israel ..
Siemens 6GK5721-1FC00-0AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSCALANCE
transfer rate
with WLAN / maximum150 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
interfaces
for network components or terminal equipment1
for power supply1
for redundant voltage supply0
for network components or terminal equipmentRJ45 socket
for power supply3-pole screw terminal
memory
C-PLUGNo
KEY-PLUGNo
interfaces / wireless
number of radio cards / permanently installed1
number of electrical connections / for external antenna(s)1
type of electrical connection / for external antenna(s)R-SMA (socket)
product feature / external antenna can be mounted directly on deviceYes
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
at DC / at 24 V / typical0.15 A
at DC / at 24 V / typical3.6 W
from terminal block19.2 V
from terminal block28.8 V
ambient conditions
during operation0 ... 55 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
ambient condition / for operationWhen used under hazardous conditions (Zone 2), the SCALANCE W761-1 RJ45 or W72x-1 RJ45 product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529.
protection class IPIP20

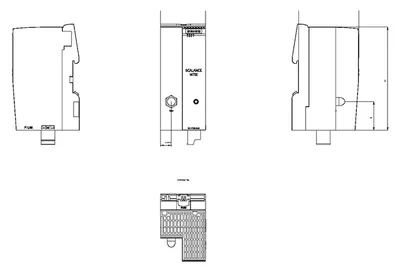

design, dimensions and weights
width50 mm
height114 mm
depth74 mm
width / of the enclosure / without antenna50 mm
height / of the enclosure / without antenna114 mm
depth / of the enclosure / without antenna74 mm
net weight0.13 kg
S7-300 rail mountingNo
S7-1500 rail mountingNo
35 mm DIN-rail mountingYes
wall mountingNo
radio frequencies
for WLAN in 2.4 GHz frequency band2.41 ... 2.48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4.9 ... 5.8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeNo
product function / client ModeYes
iPCF clientNo
iPCF-MC clientNo
product function / iREFNo
product function / iPRPNo
product functions / management, configuration, engineering
number of manageable IP addresses / in client4
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
configuration with STEP 7 in the TIA PortalYes
WDSNo
Address Resolution Protocol (ARP)Yes
ICMPYes
TelnetYes
HTTPYes
HTTPSYes
TFTPYes
DCPYes
LLDPNo
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisNo
link checkNo
connection monitoring IP-AliveNo
SysLogYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
product functions / VLAN
function VLAN with IWLANNo
product functions / DHCP
DHCP clientYes
DHCP serverYes
DHCP Option 82Yes
product functions / redundancy
STP/RSTPYes
MSTPYes
RSTPYes
product functions / security
ACL - MAC-basedYes
management security, ACL-IP basedYes
IEEE 802.1x (radius)Yes
NAT/NAPTYes
access protection according to IEEE802.11iYes
WPA/WPA2Yes
TKIP/AESYes
SSHYes
RADIUSYes
product functions / time
NTPYes
SNTPYes
SIMATIC time synchronization (SIMATIC Time)Yes
standards, specifications, approvals
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1
EC Declaration of ConformityYes
CE markingYes
C-TickYes
E1 approvalNo
railway application in accordance with EN 50155No
NEMA TS2No
IEC 61375No
IEC 61850-3No
NEMA4XNo
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afNo
Power-over-Ethernet according to IEEE802.3at for type 2No
IEEE 802.11aYes
IEEE 802.11bYes
IEEE 802.11eYes
IEEE 802.11gYes
IEEE 802.11hYes
IEEE 802.11iYes
IEEE 802.11nYes
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)No
French marine classification society (BV)No
DNV GLNo
Korean Register of Shipping (KRS)No
Lloyds Register of Shipping (LRS)No
Nippon Kaiji Kyokai (NK)No
Polski Rejestr Statkow (PRS)No
Royal Institution of Naval Architects (RINA)No
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480
certificate of suitability / CCC / for hazardous zone according to GB standardYes; GB3836.1, GB3836.8
as markingEx nA IIC T4 Gc
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total200.91 kg
during manufacturing12.97 kg
during operation187.77 kg
after end of life0.17 kg
accessories
accessories24 V DC screw terminal included in scope of delivery
Accessories 105
Genuine accessories that can be used with the Siemens 6GK5721-1FC00-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 6GK1900-0AB10 | Aksesuar | |
| 6GK5980-1DB10-0AA5 | Aksesuar | |
| 6GK5980-0BB10-0AA5 | Aksesuar | |
| 6GK5980-1DB00-0AA5 | Aksesuar | |
| 6GK5980-0BB00-0AA5 | Aksesuar | |
| 6GK5980-3BB00-0AA5 | Aksesuar · Cables · serial cable | |
| 6GK1720-1AH01-0BV0 | Aksesuar | |
| 6GK5992-1AG00-8AA0 | Aksesuar | |
| 6GK5992-1AL00-8AA0 | Aksesuar | |
| 6GK5992-1AM00-8AA0 | Aksesuar | |
| 6GK5992-1AM30-8AA0 | Aksesuar | |
| 6GK5992-1AN00-8AA0 | Aksesuar | |
| 6GK5992-1AL00-8AC0 | Aksesuar | |
| 6GK5992-1AM00-8AC0 | Aksesuar | |
| 6GK5992-1AL00-8RA0 | Aksesuar | |
| 6GK5992-1AL00-8TA0 | Aksesuar | |
| 6GK5992-1AM00-8RA0 | Aksesuar | |
| 6GK5992-1AM00-8TA0 | Aksesuar | |
| 6GK5992-1AP00-8AA0 | Aksesuar | |
| 6GK5992-1AQ00-8AA0 | Aksesuar | |
| 6GK5991-1AD00-8AA0 | Aksesuar | |
| 6GK5991-1AF00-8AA0 | Aksesuar | |
| 6GK5991-1AD00-8AC0 | Aksesuar | |
| 6GK5991-1AF00-8AC0 | Aksesuar | |
| 6GK5991-1AE00-8AA0 | Aksesuar | |
| 6GK5991-1AE30-8AA0 | Aksesuar | |
| 6GK5980-4AA00-0AA5 | Aksesuar | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6GK1901-1BB10-2AE0 | Aksesuar | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6GK1901-1BB12-2AB0 | Aksesuar | |
| 6GK1901-1BB12-2AE0 | Aksesuar | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1843-5EH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH30-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AH10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AH20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AH30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AH50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN15 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN40 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AN80 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AT10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AT15 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AT20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5AT30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5CH50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5CN10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5CN15 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5CN20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5RH10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5RH20 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5RH30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5RN10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5RN30 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5RN50 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5RT10 | Aksesuar · Cables · network cable optical | |
| 6XV1873-5RT15 | Aksesuar · Cables · network cable optical | |
| 6XV1876-2A | Aksesuar · Cables · network cable electrical | |
| 6XV1876-2B | Aksesuar · Cables · network cable electrical |
Related Products
View Details
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
View Details
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
View Details
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
View Details
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
View Details
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
View Details
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
View Details
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
View Details
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
View Details
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Featured Products
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Related Searches
Siemens 6GK5721-1FC00-0AA0 priceSiemens 6GK5721-1FC00-0AA0 quotebuy Siemens 6GK5721-1FC00-0AA06GK5721-1FC00-0AA0 price6GK5721-1FC00-0AA0 stock availabilitySiemens spare partsSiemens 6GK5721-1FC00-0AA0 equivalentSiemens 6GK5721-1FC00-0AA0 specifications
