How can I get a price quote for Siemens 6GK5552-0AR00-2HR2?

You can request a fast quote for Siemens 6GK5552-0AR00-2HR2 from Yılsa Engineering. Reference part number CEY-8EF3B0385B6B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5552-0AR00-2HR2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5552-0AR00-2HR2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5552-0AR00-2HR2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

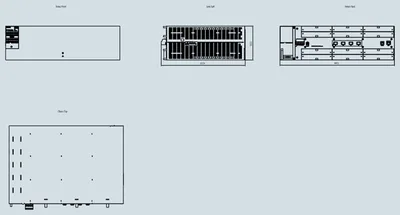

Siemens 6GK5552-0AR00-2HR2

See SIOS ID 109983816 switch, 19" rack; 4x 1000/10000 Mbit/s SFP+; 12x 100/1000 Mbit/s 4-port media modules, electrical, electrical PoE or optical; LED diagnostics; error signaling contact; Select/set pushbutton, PROFINET IO device, network management, integrated redundancy manager; office features (RSTP, VLAN, IGMP, ...); C-plug in scope of delivery Layer 3 integrated; ports at the back.

SiemensMFR # 6GK5552-0AR00-2HR2SKU # CEY-8EF3B0385B6B

product brand nameSCALANCE

product type designationXR552-12M

transfer rate10, 100, 1000 Mbit/s

transfer rate10 Gbit/s

for SFP+4

for multimode48

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5552-0AR00-2HR2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXR552-12M

transfer rate

transfer rate10, 100, 1000 Mbit/s

transfer rate10 Gbit/s

interfaces / for communication / integrated

for network components or terminal equipmentRJ45

for Power-over-Ethernet / for network components or terminal equipment12

for SFP+4

interfaces / for communication / plug-in

for multimode48

for single mode (LD)48

for multimode48

for single mode (LD)48

for SFP4

for SFP+4

interfaces / other

for operator console1

for signaling contact1

for media module12

for power supply1

for operator consoleRJ11

for management purposesRJ45

for signaling contact2-pole terminal block

for power supply4-pole terminal block

product feature / hot-swappable interface modulesYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

type of voltage supply / redundant power supply unitNo

per port / maximum30 W

total / maximum180 W

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value34.08 W

supply voltage / 1 / voltage range19.2 ... 28.8

consumed current / 1 / maximum12.5 A

type of electrical connection / 1 / for power supply4-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltageF 15 A / 125 V

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

noteOperation with integral fan, replaceable

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

design19-inch rack

number of modular height units / relating to 19-inch cabinet3

width449 mm

height130.8 mm

depth305 mm

net weight10 kg

19-inch installationYes

35 mm DIN-rail mountingNo

wall mountingNo

S7-300 rail mountingNo

S7-1500 rail mountingNo

type of cable outletCable outlet at rear

product features, product functions, product components / general

cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONYes

port mirroringYes

multiport mirroringYes

CoSYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

telegram length / for Ethernet / maximum9216 byte

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

FTPYes

BOOTPYes

GMRPYes

DCPYes

LLDPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedYes

VLAN - IP-basedYes

VLAN dynamicYes

number of VLANs / maximum255

number of VLANs - dynamic / maximum255

product functions / DHCP

DHCP clientYes

DHCP Option 82Yes

DHCP Option 66Yes

DHCP Option 67Yes

product functions / routing

service / routing / noteIP routing integrated

static IP routingYes

static IP routing IPv6Yes

dynamic IP routingYes

dynamic IP routing IPv6Yes

RIPv2Yes

RIPnG for IPv6Yes

OSPFv2Yes

OSPFv3 for IPv6Yes

VRRPYes

VRRP for IPv6Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+Yes

redundancy procedure MSTPYes

passive listeningYes

LACPYes

product functions / security

IEEE 802.1x (radius)Yes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

SSHYes

product functions / time

SICLOCK supportYes

NTPYes

SNTPYes

type of time synchronizationIEEE 1588

standards, specifications, approvals

CE markingYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1-03

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total1077.71 kg

during manufacturing132 kg

during operation945.12 kg

after end of life0.59 kg

product functions / general

warranty period5 a

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing132 kg

global warming potential [CO2 eq] / during operation945.12 kg

global warming potential [CO2 eq] / after end of life0.59 kg

global warming potential [CO2 eq] / total1077.71 kg

Accessories 120

Genuine accessories that can be used with the Siemens 6GK5552-0AR00-2HR2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1901-1BB12-2AB0	Aksesuar
6GK1900-0AB10	Aksesuar
6GK5598-1AA00-3AA0	Aksesuar · Power supply
6GK1901-1BB50-0AA0	Aksesuar
6GK5980-3BB00-0AA5	Aksesuar · Cables · serial cable
6XV1812-8A	Aksesuar · Cables · power cables
6GK5980-1DB10-0AA5	Aksesuar
6GK5980-0BB10-0AA5	Aksesuar
6GK5597-1AA00-8AA0	Aksesuar
6GK5597-2AA00-8AA0	Aksesuar
6GK5991-1AD00-8AA0	Aksesuar
6GK5980-3CB00-0AA1	Aksesuar · Cables · network cable optical
6GK5980-3CB00-0AA2	Aksesuar · Cables · network cable optical
6GK5980-3CB00-0AA7	Aksesuar · Cables · network cable optical
6XV1878-5TN50	Aksesuar · Cables · network cable electrical
6GK1901-1BB12-2AE0	Aksesuar
6XV1878-5TN30	Aksesuar · Cables · network cable electrical
6XV1878-5TN15	Aksesuar · Cables · network cable electrical
6XV1878-5TN10	Aksesuar · Cables · network cable electrical
6XV1878-5TH50	Aksesuar · Cables · network cable electrical
6XV1878-5TH30	Aksesuar · Cables · network cable electrical
6XV1878-5TH20	Aksesuar · Cables · network cable electrical
6XV1878-5TH15	Aksesuar · Cables · network cable electrical
6XV1878-5TH10	Aksesuar · Cables · network cable electrical
6XV1878-5TE50	Aksesuar · Cables · network cable electrical
6XV1878-5BN30	Aksesuar · Cables · network cable electrical
6XV1878-5BN25	Aksesuar · Cables · network cable electrical
6XV1878-5BN20	Aksesuar · Cables · network cable electrical
6XV1878-5BN15	Aksesuar · Cables · network cable electrical
6XV1878-5BN10	Aksesuar · Cables · network cable electrical
6XV1878-5BH50	Aksesuar · Cables · network cable electrical
6XV1878-5BH30	Aksesuar · Cables · network cable electrical
6XV1878-5BH20	Aksesuar · Cables · network cable electrical
6XV1871-5TN15	Aksesuar · Cables · network cable electrical
6XV1871-5TN10	Aksesuar · Cables · network cable electrical
6XV1871-5TH50	Aksesuar · Cables · network cable electrical
6GK1901-1BB12-2AA0	Aksesuar
6XV1871-5TH30	Aksesuar · Cables · network cable electrical
6XV1871-5TH20	Aksesuar · Cables · network cable electrical
6XV1871-5MH50	Aksesuar · Cables · network cable electrical
6XV1871-5BN30	Aksesuar · Cables · network cable electrical
6XV1871-5BN20	Aksesuar · Cables · network cable electrical
6XV1871-5BN15	Aksesuar · Cables · network cable electrical
6XV1871-5BN12	Aksesuar · Cables · network cable electrical
6XV1871-5BN10	Aksesuar · Cables · network cable electrical
6XV1871-5BH50	Aksesuar · Cables · network cable electrical
6XV1871-5BH30	Aksesuar · Cables · network cable electrical
6GK1901-1BB10-2AE0	Aksesuar
6XV1871-5BH20	Aksesuar · Cables · network cable electrical
6XV1871-5BH10	Aksesuar · Cables · network cable electrical
6XV1870-3QN50	Aksesuar · Cables · network cable electrical
6XV1870-3QN45	Aksesuar · Cables · network cable electrical
6XV1870-3QN40	Aksesuar · Cables · network cable electrical
6XV1870-3QN35	Aksesuar · Cables · network cable electrical
6XV1870-3QN30	Aksesuar · Cables · network cable electrical
6XV1870-3QN25	Aksesuar · Cables · network cable electrical
6XV1870-3QN20	Aksesuar · Cables · network cable electrical
6XV1870-3QN15	Aksesuar · Cables · network cable electrical
6GK1901-1BB10-2AB0	Aksesuar
6XV1870-3QN10	Aksesuar · Cables · network cable electrical
6XV1870-3QH60	Aksesuar · Cables · network cable electrical
6XV1870-3QH40	Aksesuar · Cables · network cable electrical
6XV1870-3QH30	Aksesuar · Cables · network cable electrical
6XV1870-3QH20	Aksesuar · Cables · network cable electrical
6XV1870-3QH10	Aksesuar · Cables · network cable electrical
6XV1870-3QE50	Aksesuar · Cables · network cable electrical
6XV1870-3QE30	Aksesuar · Cables · network cable electrical
6GK5992-1AQ00-8AA0	Aksesuar
6GK5992-1AP00-8AA0	Aksesuar
6GK1901-1BB10-2AA0	Aksesuar
6GK5992-1AN00-8AA0	Aksesuar
6GK5992-1AM30-8AA0	Aksesuar
6GK5992-1AM00-8TA0	Aksesuar
6GK5992-1AM00-8RA0	Aksesuar
6GK5992-1AM00-8AC0	Aksesuar
6GK5992-1AM00-8AA0	Aksesuar
6GK5992-1AL00-8TA0	Aksesuar
6GK5992-1AL00-8RA0	Aksesuar
6GK5992-1AL00-8AC0	Aksesuar
6GK5992-1AL00-8AA0	Aksesuar
6GK5992-1AG00-8AA0	Aksesuar
6GK5991-4AB00-8AA0	Aksesuar
6GK5991-4AC00-8AA0	Aksesuar
6GK5992-4AL00-8AA0	Aksesuar
6GK5992-4AM00-8AA0	Aksesuar
6GK5992-4AS00-8AA0	Aksesuar
6GK5992-4GA00-8AA0	Aksesuar
6GK5992-4SA00-8AA0	Aksesuar
6GK5993-1AT00-8AA0	Aksesuar
6GK5993-1AU00-8AA0	Aksesuar
6GK5993-1AV00-8AA0	Aksesuar
6GK5991-1AD00-8AC0	Aksesuar
6GK5991-1AE00-8AA0	Aksesuar
6GK5991-1AE30-8AA0	Aksesuar
6GK5991-1AF00-8AA0	Aksesuar
6GK5991-1AF00-8AC0	Aksesuar
6GK5992-1AL00-8FA0	Aksesuar
6GK5992-1AM00-8FA0	Aksesuar
6GK1901-0AM00-0AA0	Aksesuar
6GK1901-0BE10-0AA0	Aksesuar · Cabling system
6GK1901-0RP10-0AA0	Aksesuar · Cabling system
6XV1870-4BE50	Aksesuar · Cables · network cable electrical
6XV1870-4BH10	Aksesuar · Cables · network cable electrical
6XV1870-4BH20	Aksesuar · Cables · network cable electrical
6XV1870-4BH30	Aksesuar · Cables · network cable electrical
6XV1870-4BH40	Aksesuar · Cables · network cable electrical
6XV1870-4BH60	Aksesuar · Cables · network cable electrical
6XV1870-4BN10	Aksesuar · Cables · network cable electrical
6XV1870-4BN15	Aksesuar · Cables · network cable electrical
6XV1870-4BN20	Aksesuar · Cables · network cable electrical
6XV1870-4BN25	Aksesuar · Cables · network cable electrical
6XV1870-4BN30	Aksesuar · Cables · network cable electrical
6XV1870-4GE50	Aksesuar · Cables · network cable electrical
6XV1870-4GH10	Aksesuar · Cables · network cable electrical
6XV1870-4GH20	Aksesuar · Cables · network cable electrical
6XV1870-4GH30	Aksesuar · Cables · network cable electrical
6XV1870-4GH40	Aksesuar · Cables · network cable electrical
6XV1870-4GH60	Aksesuar · Cables · network cable electrical
6XV1870-4GN10	Aksesuar · Cables · network cable electrical
6XV1870-4GN15	Aksesuar · Cables · network cable electrical
