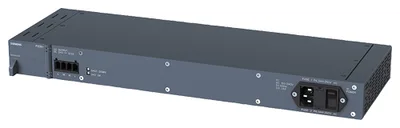

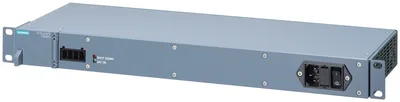

Siemens 6GK5598-1AA00-3AA0

See SIOS ID 109983816 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500.

SiemensMFR # 6GK5598-1AA00-3AA0SKU # CEY-8EF3B0385B68

product brand nameSCALANCE

type of current supply300 W, input: 85-264 V, output:DC 24

product categoryPower supply

voltage curve / at inputAC single phase

supply voltage / 1 / rated value230 V

supply voltage / 1 / rated value85 ... 264 V

Have questions?Chat on WhatsApp

About This Product

See SIOS ID 109983816 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500.

Siemens 6GK5598-1AA00-3AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

type of current supply300 W, input: 85-264 V, output:DC 24

electrical data

product categoryPower supply

electrical data / input

voltage curve / at inputAC single phase

supply voltage / 1 / rated value230 V

supply voltage / 1 / rated value85 ... 264 V

type of voltage / 1 / of the supply voltageAC

design of input / wide range inputYes

overvoltage categoryCategory II (20 A rated branch circuit)

buffering time / for rated value of the output current / in the event of power failure / minimum16 ms

line frequency47 ... 63 Hz

input current / at rated input voltage 230 V / rated value1.8 A

current limitation / of inrush current / at 25 °C / maximum40 A

fuse protection type / at inputreplaceable

electrical data / output

voltage curve / at outputControlled, isolated DC voltage

1 / at DC / rated value24 V

display version / for normal operationGreen LED for 24 V ok and fault LED

behavior of the output voltage / when switching onOvershoot of Ua < 5 %

startup delay time / maximum1.5 s

voltage increase time / of the output voltage / maximum15 ms

rated value12.5 A

rated range0 ... 12.5 A

supplied active power / typical300 W

product feature / parallel switching of channelsYes

number of parallel-switched equipment resources / for increasing the power2

efficiency in percent87 %

power loss [W]39 W

electrical data / closed-loop control

relative overall tolerance / of the voltage2 %

residual ripple / maximum0.36 V

voltage peak / maximum240 V

on slow fluctuation of input voltage0.2 %

on slow fluctuation of ohm loading0.4 %

load step of resistive load 50/100/50 % / typical3.25 %

with rapid fluctuation of the input voltage by +/- 15% / typical0.8 %

load step 50 to 100% / typical2 ms

load step 100 to 50% / typical2 ms

electrical data / protection and monitoring

design of the overvoltage protection / at output< 37 V

response value current limitation / typical1.15 A

property of the output / short-circuit proofYes

design of short-circuit protectionElectronic shutdown, automatic restart

electrical data / safety

galvanic isolation / between input and outputYes

galvanic isolationSafety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178

operating resource protection classClass I

maximum3 mA

typical0.858 mA

interfaces

at inputIEC plug

at outputfor plugging into basic device or screw terminal in accordance with specification

design, dimensions and weights

width446 mm

height44 mm

depth140 mm

net weight1.7 kg

product feature / of the enclosure / housing can be lined upNo

fastening methodPlugged into the basic unit or rack mounted

19-inch installationYes

wall mountingNo

DIN-rail mountingNo

S7-300 rail mountingNo

ambient conditions

during operation60 °C

during storage-25 ... +70 °C

during transport-25 ... +70 °C

noteOperation with integral fan, non-replaceable

environmental category / according to IEC 60721Climate class 3K3, without condensation

protection class IPIP20

standards, specifications, approvals

for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1

for emitted interferenceEN 55022 (Class B)

for interference immunityEN 61000-6-2

certificate of suitabilityEN 55022, EN 61000-6-4

CE markingYes

C-TickYes

E1 approvalNo

railway application in accordance with EN 50155No

railway application in accordance with EN 50124-1No

IEC 61850-3No

MTBF17.47 a

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total595.15 kg

during manufacturing62.11 kg

during operation532.64 kg

after end of life0.4 kg
