How can I get a price quote for Siemens 6GK5408-0GA00-8AP2?

You can request a fast quote for Siemens 6GK5408-0GA00-8AP2 from Yılsa Engineering. Reference part number CEY-8EF3B0385B86. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5408-0GA00-8AP2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5408-0GA00-8AP2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5408-0GA00-8AP2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

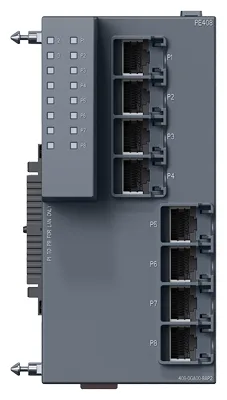

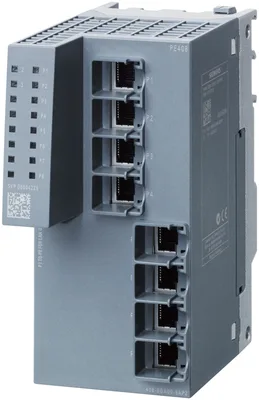

Siemens 6GK5408-0GA00-8AP2

See SIOS ID 109983816 SCALANCE XM-400 managed modular IE switch; extension by 8x 10/100/1000 Mbit/s RJ45.

SiemensMFR # 6GK5408-0GA00-8AP2SKU # CEY-8EF3B0385B86

product brand nameSCALANCE

product type designationPE408

transfer rate10, 100, 1000 Mbit/s

with securing collar8

number of extender expansion interfaces2

power loss [W] / 1 / rated value4.8 W

Have questions?Chat on WhatsApp

About This Product

See SIOS ID 109983816 SCALANCE XM-400 managed modular IE switch; extension by 8x 10/100/1000 Mbit/s RJ45.

Siemens 6GK5408-0GA00-8AP2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationPE408

transfer rate

transfer rate10, 100, 1000 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment8

with securing collar8

interfaces / other

number of extender expansion interfaces2

product feature / hot-swappable interface modulesYes

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

power loss [W] / 1 / rated value4.8 W

consumed current / 1 / maximum0.2 A

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

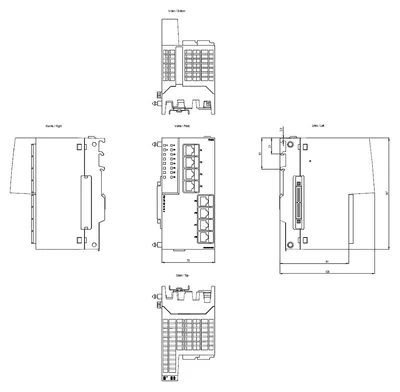

design, dimensions and weights

designSIMATIC S7-1500 device design

width70 mm

height147 mm

depth125 mm

net weight0.6 kg

19-inch installationNo

35 mm DIN-rail mountingYes

wall mountingNo

S7-300 rail mountingYes

S7-1500 rail mountingYes

product functions / management, configuration, engineering

PROFINET conformity classB

standards, specifications, approvals

CE markingYes

UKCA markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Chinese Classification Society (CCS)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Royal Institution of Naval Architects (RINA)Yes

product functions / general

MTBF58 a

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
