How can I get a price quote for Siemens 6GK5326-2QS00-3RR3?

You can request a fast quote for Siemens 6GK5326-2QS00-3RR3 from Yılsa Engineering. Reference part number YLS8NUR07KQCX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5326-2QS00-3RR3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5326-2QS00-3RR3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5326-2QS00-3RR3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

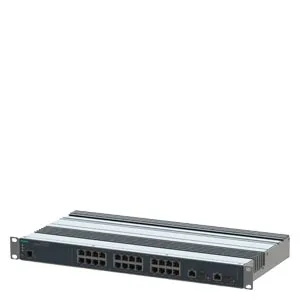

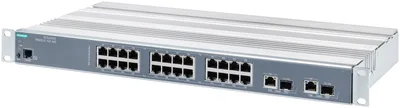

Siemens 6GK5326-2QS00-3RR3

SCALANCE XR326-2C PoE WG; managed IE Switch; 19" rack; 24 x 1GE electrical PoE ports 2 x 10GE electrical combo PoE ports; electrical o. optical; LED diagnostics; reset button; console port; PROFINET device; network management function; Redundancy Manager; No UL/FM approval; Power supply 240 V AC (85 – 264 V).

SiemensMFR # 6GK5326-2QS00-3RR3SKU # YLS8NUR07KQCX

product brand nameSCALANCE

product type designationXR326-2C PoE WG

transfer rate10, 100, 1000 Mbit/s

transfer rate2.5, 5, 10 Gbit/s

for operator console1

for power supply2

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5326-2QS00-3RR3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXR326-2C PoE WG

transfer rate

transfer rate10, 100, 1000 Mbit/s

transfer rate2.5, 5, 10 Gbit/s

interfaces / for communication / integrated

for network components or terminal equipment26; RJ45

for Power-over-Ethernet / for network components or terminal equipment26

with PoE24; PoE Ports according to IEEE802.3at (30 W)

number of 10/100/1000/10000 Mbit/s RJ45 ports / with PoE2

number of combo ports / with RJ45 interface for optical plug-in transceiver2; 1000 Mbit/s, 2500 Mbit/s, 5000 Mbit/s, 10000 Mbit/s RJ45 port incl. PoE function and 1000 Mbit/s, 10000 Mbit/s SFP port

interfaces / other

for operator console1

for power supply2

for operator consoleRJ11

for power supplyIEC plug C14 and terminal block for additional PoE power supply (max. 2 additional PSR9230 PoE possible, PoE power expandable to 570 W)

supply voltage, current consumption, power loss

total / maximum210 W

type of voltage / 1 / of the supply voltageAC

supply voltage / 1 / rated value240 V; 100 V ... 240 V AC

supply voltage / 1 / voltage range85 ... 264

consumed current / 1 / maximum4 A

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltageF 4 A / 250 V

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP30

design, dimensions and weights

design19-inch rack

number of modular height units / relating to 19-inch cabinet1

width482.6 mm

height43.6 mm

depth227.3 mm

net weight4.7 kg

material / of the enclosuremetal

19-inch installationYes

35 mm DIN-rail mountingNo

wall mountingNo

S7-300 rail mountingNo

S7-1500 rail mountingNo

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONYes

port mirroringYes

multiport mirroringNo

CoSYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETIII

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

FTPYes

BOOTPYes

GMRPNo

DCPYes

LLDPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedNo

VLAN - IP-basedNo

VLAN dynamicYes

number of VLANs / maximum257

number of VLANs - dynamic / maximum257

number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product functions / DHCP

DHCP clientYes

DHCP Option 82Yes

DHCP Option 66Yes

DHCP Option 67Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

of the PROFINET IO device / is supported / H-Sync forwardingNo

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure MSTPNo

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No

passive listeningYes

STP/RSTPYes

STPYes

RSTPYes

MSTPNo

RSTP big network supportYes

LACPNo

system modification during operation

product function / configuration in RUN via CiR/H-CiRNo

product functions / security

IEEE 802.1x (radius)Yes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

SSHYes

product functions / time

SICLOCK supportYes

SNTP clientYes

NTPYes

SNTPYes

IEEE 1588 profile defaultNo

standards, specifications, approvals

CE markingYes

UKCA markingYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4

for immunity to EMCEN 61000-6-2

standards, specifications, approvals / other

railway application in accordance with EN 50155No

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total931.69 kg

during manufacturing109.07 kg

during operation822.07 kg

after end of life0.55 kg

product functions / general

MTBF25 a

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing109.07 kg

global warming potential [CO2 eq] / during operation822.07 kg

global warming potential [CO2 eq] / after end of life0.55 kg

global warming potential [CO2 eq] / total931.69 kg
