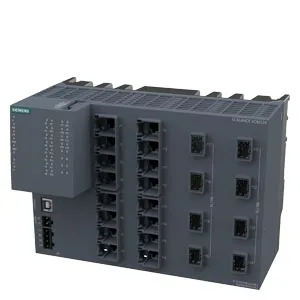

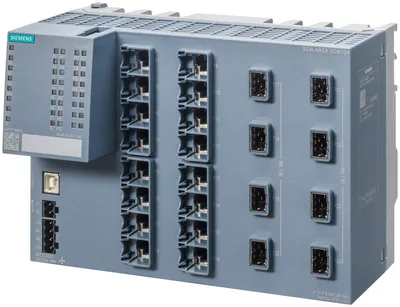

Siemens 6GK5324-8TS01-2AC2

SCALANCE XCM324 managed layer 2 IE switch, 16x 10/100/1000 Mbit/s RJ45, 8x 1/10 Gbit/s SFP+ port, LED diagnostics,error signaling contact with select/set pushbutton, PROFINET IO device, network management, redundancy functions, office features (RSTP, VLAN, IGMP,..) CLP included in scope of supply assembly: DIN rail/S7 mounting rail .

SiemensMFR # 6GK5324-8TS01-2AC2SKU # YLSRZNKMJVUTNSK

product brand nameSCALANCE

product type designationXCM324

transfer rate10, 100, 1000 Mbit/s

transfer rate10 Gbit/s

with securing collar16

for operator console1

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5324-8TS01-2AC2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXCM324

transfer rate

transfer rate10, 100, 1000 Mbit/s

transfer rate10 Gbit/s

interfaces / for communication / integrated

for network components or terminal equipment16; RJ45

with securing collar16

for SFP+8; 1000 Mbps and 10000 Mbps SFP usable, 100 Mbps with SFP991-1(LD) A possible

interfaces / other

for operator console1

for signaling contact1

for power supply1

for operator consoleUSB (2.0 type B, USB-to-serial adapter)

for signaling contact2-pole terminal block

for power supply2 x 2-pole terminal block

CLPYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value43.2 W

power loss [W] / at DC / at 24 V / typical25.92 W

supply voltage / 1 / voltage range19.2 ... 28.8

consumed current / 1 / maximum1.8 A

consumed current / at DC / at 24 V / typical1.08 A

type of electrical connection / 1 / for power supply2 x 2-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltageF 10 A / 250 V

ambient conditions

during operation-40 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

at 25 °C / without condensation / during operation / maximum95 %

operating condition / fanless operationYes

protection class IPIP20

design, dimensions and weights

designcompact

width210 mm

height147 mm

depth125 mm

net weight1.8 kg

19-inch installationNo

35 mm DIN-rail mountingYes

wall mountingYes

S7-300 rail mountingYes

S7-1500 rail mountingYes

product features, product functions, product components / general

product conformity / according to IEEE 802.1Qbu and IEEE 802.3br (Frame Preemption)Yes

product license

product license / Upgrade licenseYes; layer 3 license

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONNo

port mirroringYes

multiport mirroringYes

Encapsulated Remote Traffic Mirroring (ERTM)Yes

CoSYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETII

telegram length / for Ethernet / maximum9194 byte

TelnetNo

HTTPYes

HTTPSYes

TFTPYes

FTPYes

SFTPYes

BOOTPNo

NETCONFYes

GMRPYes

DCPYes

LLDPYes

EtherNet/IPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedNo

VLAN - IP-basedNo

VLAN dynamicYes

number of VLANs / maximum2048

number of VLANs - dynamic / maximum2048

product functions / DHCP

DHCP serverNo

DHCP clientYes

DHCP Option 82No

DHCP Option 66Yes

DHCP Option 67Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)No

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerNo

high speed redundancy protocol (HRP) with standby redundancyNo

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+No

redundancy procedure MSTPYes

passive listeningYes

eRSTPYes

LACPYes

product functions / security

RADIUSYes

SSHYes

SSLYes

product functions / time

SICLOCK supportYes

NTP-clientYes

IEEE 1588 v2 transparent forwardingYes

NTPYes

IEEE 1588 profile defaultYes

standards, specifications, approvals

CE markingYes

UKCA markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

product conformity / according to EMC-guideline2014/30/EU

for EMC interference emissionEN 61000-6-4

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL-61010-2 E85972

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

railway application in accordance with EN 50121-4Yes; use only in areas not accessible to the public

railway application in accordance with EN 50125-3Yes; Section 4.2: Class AX (up to 2000m); section 4.3: T1: Containers N.T.C and T.C. / Buildings N.C.C and C.C, T2: Containers N.T.C and T.C. / Buildings N.C.C and C.C, TX: Containers N.T.C and T.C. / Buildings N.C.C and C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used --> only for variants with optical connections; In addition, depending on the installation position, the derating according to the manual must be taken into account; section 4.4: T1: Containers C.C. / Buildings N.C.C and C.C., T2: Containers C.C. / Buildings N.C.C and C.C, T3: Containers C.C. / Buildings N.C.C and C.C; section 4.11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 61010-2-10; section 4.13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4.14: yes; section 4.15: yes, according to manual.

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total1244.3 kg

during manufacturing122.74 kg

during operation1120.64 kg

after end of life0.91 kg

product functions / general

MTBF13.4 a

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing122.74 kg

global warming potential [CO2 eq] / during operation1120.64 kg

global warming potential [CO2 eq] / after end of life0.91 kg

global warming potential [CO2 eq] / total1244.3 kg
