How can I get a price quote for Siemens 6GK5923-0PS00-2RA3?

You can request a fast quote for Siemens 6GK5923-0PS00-2RA3 from Yılsa Engineering. Reference part number YLSUPXRVNOVZPCB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5923-0PS00-2RA3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5923-0PS00-2RA3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5923-0PS00-2RA3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

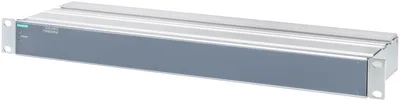

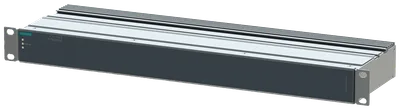

Siemens 6GK5923-0PS00-2RA3

SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.

SiemensMFR # 6GK5923-0PS00-2RA3SKU # YLSUPXRVNOVZPCB

product brand nameSCALANCE

suitability for usePower supply for PoE

product categoryPower supply

voltage curve / at inputAC single phase

supply voltage / 1 / rated value230 V

supply voltage / 1 / rated value85 ... 264 V

Have questions?Chat on WhatsApp

About This Product

SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.

Siemens 6GK5923-0PS00-2RA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

type of current supply180 W, input: 100 ... 240 V AC, 50/60 Hz, output: 54 V / 4 A DC

suitability for usePower supply for PoE

electrical data

product categoryPower supply

electrical data / input

voltage curve / at inputAC single phase

supply voltage / 1 / rated value230 V

supply voltage / 1 / rated value85 ... 264 V

type of voltage / 1 / of the supply voltageAC

consumed current / 1 / at rated supply voltage / maximum4 A

design of input / wide range inputYes

overvoltage categoryCategory II

buffering time / for rated value of the output current / in the event of power failure / minimum20 ms

50 HzYes

60 HzYes

line frequency47 ... 63 Hz

input current / at rated input voltage 230 V / rated value4 A

current limitation / of inrush current / at 25 °C / maximum25 A

fuse protection type / at inputFuse T 4A soldered in

electrical data / output

voltage curve / at outputlinear falling (56V at 0A, 54V at 4A)

1 / at DC / rated value54 V

display version / for normal operationLED green for DC ok

rated value4 A

rated range0 ... 4 A

supplied active power / typical180 W

product feature / parallel switching of channelsYes

number of parallel-switched equipment resources / for increasing the power2

power loss [W]24 W

electrical data / closed-loop control

relative overall tolerance / of the voltage3 %

electrical data / protection and monitoring

design of the overvoltage protection / at output< 60 V

property of the output / short-circuit proofYes

design of short-circuit protectionElectronic shutdown, automatic restart

electrical data / safety

galvanic isolation / between input and outputYes

galvanic isolationInput to output: 4 kV, input to PE 2.5 kV, output to PE: 2.25 kV

interfaces

for power supply1

for signaling contact0

for power supplyIEC plug

at output2-pole terminal block

signal inputs/outputs

product component / signaling contactNo

design, dimensions and weights

design19-inch rack

width446 mm

height43.6 mm

depth133 mm

net weight2.8 kg

19-inch installationYes

DIN-rail mountingYes

ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +60 °C

during transport-40 ... +60 °C

noteConvection

relative humidity / at 25 °C / without condensation / during operation / maximum95 %

environmental category / according to IEC 60721Climate class 3K3, without condensation

protection class IPIP30

standards, specifications, approvals

for safety / from CSA and ULUL 62368-1:2014 (Second Edition) Report No. E115352, IEC 62368-1:2014 (Second Edition)

for emitted interferenceEN 61000-6-4:2007 +A1:2011

for interference immunityEN 61000-6-2:2019

certificate of suitabilityEN 61000-6-4: 2007

CE markingYes

C-TickYes

MTBF110 a; at full load, 40 °C

reference temperature40 °C

percental operating load100 %

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total595.15 kg

during manufacturing62.11 kg

during operation532.64 kg

after end of life0.4 kg

accessories

accessories / includedConnecting cable power supply / switch
