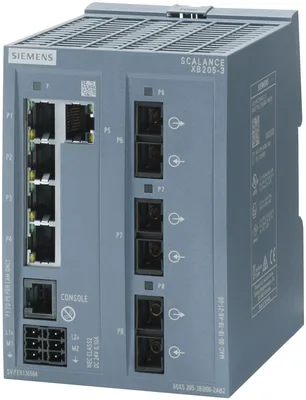

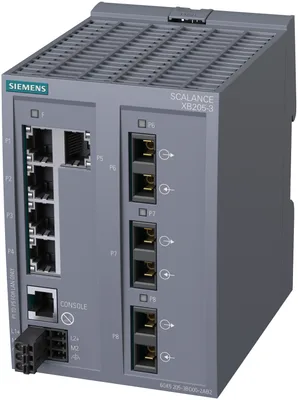

Siemens 6GK5205-3BD00-2AB2
SCALANCE XB205-3 managed Layer 2 IE switch 5x 10/100 Mbit/s RJ45 ports 3x MM FO SC-port 1x console port, diagnostics LED redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; default PROFINET.
product brand nameSCALANCE
product type designationXB205-3
transfer rate10, 100 Mbit/s
for multimode3
for operator console1
for power supply1
About This Product
SCALANCE XB205-3 managed Layer 2 IE switch 5x 10/100 Mbit/s RJ45 ports 3x MM FO SC-port 1x console port, diagnostics LED redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; default PROFINET.
Siemens 6GK5205-3BD00-2AB2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXB205-3
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment5; RJ45
for multimode3
transmission method / of the optical interface100BaseFX
interfaces / other
for operator console1
for power supply1
for operator consoleRJ11
for management purposesRJ45
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value7.2 W
supply voltage / 1 / voltage range19.2 ... 28.8
consumed current / 1 / maximum0.3 A
type of electrical connection / 1 / for power supply6-pole terminal block
product component / 1 / fusing at power supply inputYes
ambient conditions
during operation0 ... 60 °C
during storage-40 ... +70 °C
during transport-40 ... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width80 mm
height117 mm
depth109 mm
net weight0.35 kg
material / of the enclosurePolycarbonate (PC-GF10)
35 mm DIN-rail mountingYes
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
RMONYes
port mirroringYes
multiport mirroringYes
CoSYes
PROFINET IO diagnosisYes
switch-managedYes
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum1632 byte
TelnetYes
HTTPYes
HTTPSYes
TFTPYes
SFTPYes
BOOTPYes
DCPYes
LLDPYes
EtherNet/IPYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
IGMP (snooping/querier)Yes
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product functions / diagnostics
port diagnosticsYes
statistics Packet SizeYes
statistics packet typeYes
error statisticsYes
SysLogYes
product functions / VLAN
VLAN - port basedYes
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP clientYes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yes
media redundancy protocol (MRP) with redundancy managerYes
Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode
of the PROFINET IO device / is supported / PROFINET system redundancyNo
ring redundancyYes
high speed redundancy protocol (HRP) with redundancy managerYes
high speed redundancy protocol (HRP) with standby redundancyYes
redundancy procedure STPYes
redundancy procedure RSTPYes
redundancy procedure RSTP+Yes
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
passive listeningYes
product functions / security
IEEE 802.1x (radius)Yes
RADIUS clientYes
broadcast/multicast/unicast limiterYes
broadcast blockingYes
SSHYes
SSLYes
product functions / time
SICLOCK supportYes
NTP-clientYes
SNTP clientYes
SNTPYes
standards, specifications, approvals
CE markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
RoHS conformityYes
IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total266.77 kg
during manufacturing40.94 kg
during operation225.32 kg
after end of life0.51 kg
product functions / general
MTBF55 a
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing40.94 kg
global warming potential [CO2 eq] / during operation225.32 kg
global warming potential [CO2 eq] / after end of life0.51 kg
global warming potential [CO2 eq] / total266.77 kg
