How can I get a price quote for Siemens 6XV1873-3DH30?

You can request a fast quote for Siemens 6XV1873-3DH30 from Yılsa Engineering. Reference part number CEY-8EF3B030B525. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1873-3DH30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1873-3DH30 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1873-3DH30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

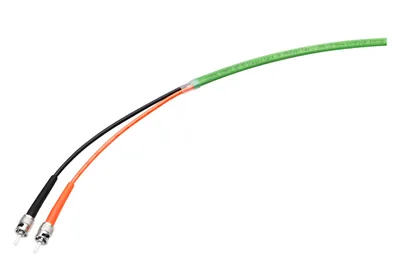

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1873-3DH30

FO Trailing Cable GP 50/125, pre-assembled with 2x2 BFOC connectors, length 3.0 m.

SiemensMFR # 6XV1873-3DH30SKU # CEY-8EF3B030B525

product brand nameSIMATIC NET

version of the assembled FO cableAssembled with four BFOC connectors

cable designationAT-W(ZN)Y(ZN)Y 2G 50/125 OM2++

wire length3 m

at 850 nm / maximum2.7 dB/km

at 1300 nm / maximum0.7 dB/km

Have questions?Chat on WhatsApp

About This Product

FO Trailing Cable GP 50/125, pre-assembled with 2x2 BFOC connectors, length 3.0 m.

Siemens 6XV1873-3DH30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useFlexible cable for use in cable carriers for high mechanical loading, UL approval

version of the assembled FO cableAssembled with four BFOC connectors

cable designationAT-W(ZN)Y(ZN)Y 2G 50/125 OM2++

wire length3 m

optical data

at 850 nm / maximum2.7 dB/km

at 1300 nm / maximum0.7 dB/km

at 850 nm600 GHz·m

at 1300 nm1200 GHz·m

mechanical data

number of fibers / per FOC core1

number of FO cores / per FOC cable2

version of the FO conductor fiberMulti-mode gradient fiber 50/125 µm, OM 2

design of the FOC coreHollow core, filled, diameter 1400 µm

design of the fiber-optic cablesegmentable

of the optical fibers50 µm

of the optical fiber sheath125 µm

of the FOC core sheath2.9 mm

symmetrical deviation / of the outer diameter of the FOC core sheath0.1 mm

outer diameter / of the cable10.5 mm

symmetrical deviation / of the outer diameter of the line0.5 mm

of the fiber-optic cable coreQuartz glass

of the optical fiber sheathQuartz glass

of the FOC core sheathPVC

of the fiber-optic cable sheathPVC

of the strain reliefAramid fibers

of the FOC core sheathorange/black

of cable sheathgreen

with single bend / minimum permissible150 mm

with multiple bends / minimum permissible200 mm

number of bending cycles3500000

during installation / short-term2000 N

during operation / maximum800 N

short-term shear force per length700 N/cm

continuous shear force per length400 N/cm

weight per length90 kg/km

ambient conditions

during operation-25 ... +80 °C

during storage-25 ... +80 °C

during transport-25 ... +80 °C

during installation-5 ... +50 °C

fire behaviorflame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A)

to mineral oilconditional resistance

to greaseconditional resistance

radiological resistance / to UV radiationresistant

protection class IPIP20

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

product component / rodent protectionNo

for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum5000 m

for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum750 m

for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum2000 m

for glass FOC / with PROFIBUS / maximum3000 m

standards, specifications, approvals

UL approvalYes; c(UL)us OFN FT4

RoHS conformityYes
