Siemens 6GK5204-2BC00-2AF2
SCALANCE XF204-2, flat, Managed IE switch, 4x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s FO ports, Error signaling contact with set pushbutton, redundant power supply, PROFINET IO device, network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-PLUG optional.
product brand nameSCALANCE
product type designationXF204-2
transfer rate10, 100 Mbit/s
with securing collar4
for multimode2
for signaling contact1
About This Product
SCALANCE XF204-2, flat, Managed IE switch, 4x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s FO ports, Error signaling contact with set pushbutton, redundant power supply, PROFINET IO device, network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-PLUG optional.
Siemens 6GK5204-2BC00-2AF2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXF204-2
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment4
with securing collar4
for multimode2
transmission method / of the optical interface100BaseFX
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
C-PLUGYes
at DC / rated value24 V
at DC / maximum0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value5.28 W
supply voltage / 1 / voltage range18 ... 32
consumed current / 1 / maximum0.22 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltage1,1 A / 33 V
ambient conditions
during operation-40 ... +60 °C
during storage-40 ... +70 °C
during transport-40 ... +70 °C
noteIf the IE-Switch XF-200 is installed horizontally, a maximum ambient temperature of +40 °C is permitted
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

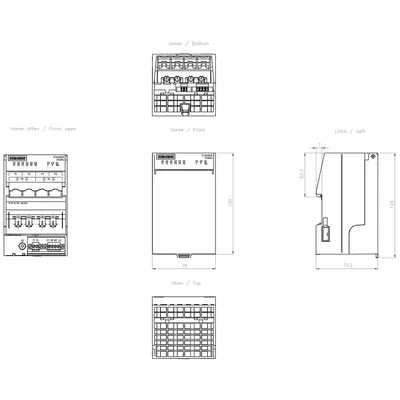

design, dimensions and weights
designflat
width75 mm
height125 mm
depth73 mm
net weight0.25 kg
35 mm DIN-rail mountingYes
wall mountingNo
S7-300 rail mountingNo
S7-1500 rail mountingNo
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s100
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
port mirroringYes
multiport mirroringNo
with IRT / PROFINET IO switchNo
PROFINET IO diagnosisYes
switch-managedYes
PROFINET conformity classB
TelnetYes
HTTPYes
HTTPSYes
TFTPYes
FTPYes
BOOTPNo
DCPYes
LLDPYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product functions / diagnostics
port diagnosticsYes
statistics Packet SizeYes
statistics packet typeYes
error statisticsYes
product functions / DHCP
DHCP clientYes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yes
media redundancy protocol (MRP) with redundancy managerYes
ring redundancyYes
high speed redundancy protocol (HRP) with redundancy managerYes
high speed redundancy protocol (HRP) with standby redundancyNo
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
passive listeningYes
product functions / security
SSHYes
product functions / time
SICLOCK supportYes
NTPNo
SNTPYes
standards, specifications, approvals
CE markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4:2001 (Class A)
for immunity to EMCEN 61000-6-2:2001
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1 - E115352
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
railway application in accordance with EN 50155No
railway application in accordance with EN 50124-1No
RoHS conformityYes
standards, specifications, approvals / marine classification
Royal Institution of Naval Architects (RINA)Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total183.07 kg
during manufacturing16.65 kg
during operation165.97 kg
after end of life0.45 kg
product functions / general
MTBF43.58 a
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing16.65 kg
global warming potential [CO2 eq] / during operation165.97 kg
global warming potential [CO2 eq] / after end of life0.45 kg
global warming potential [CO2 eq] / total183.07 kg
