How can I get a price quote for Siemens 6GK5204-2AA00-2GF2?

You can request a fast quote for Siemens 6GK5204-2AA00-2GF2 from Yılsa Engineering. Reference part number YLSQYWT5RH0GHPY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5204-2AA00-2GF2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5204-2AA00-2GF2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5204-2AA00-2GF2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

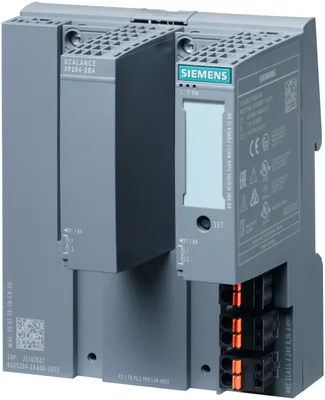

Siemens 6GK5204-2AA00-2GF2

SCALANCE XF204-2BA managed IE switch, 4 x 10/100 Mbit/s, IEC 62443-4-2 certified; 2 x BusAdapter interface, error signaling contact, set pushbutton, redundant 24 V DC power supply, PROFINET device, extended temperature range -40 °C...+70 °C, conformal coating, with electr. manual on DVD, C-PLUG optional, supplied without BusAdapter

SiemensMFR # 6GK5204-2AA00-2GF2SKU # YLSQYWT5RH0GHPY

product brand nameSCALANCE

product type designationXF204-2BA

transfer rate10, 100 Mbit/s

for signaling contact1

for power supply1

for signaling contact2-pole terminal block

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5204-2AA00-2GF2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXF204-2BA

transfer rate

transfer rate10, 100 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment0

interfaces / other

for signaling contact1

for power supply1

for signaling contact2-pole terminal block

for power supply2-pole terminal block

C-PLUGYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value8.6 W

supply voltage / 1 / voltage range19.2 ... 28.8

consumed current / 1 / maximum0.36 A

type of electrical connection / 1 / for power supply2-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltage2.5 A (cannot be replaced by user)

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

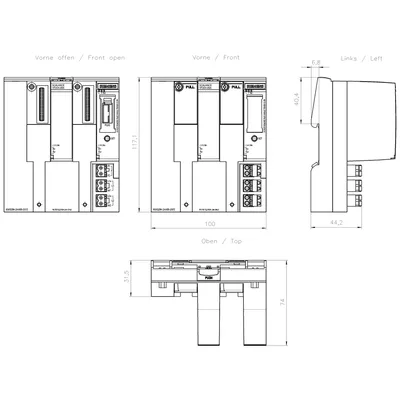

design, dimensions and weights

designcompact

width100 mm

height117 mm

depth74 mm

net weight0.21 kg

35 mm DIN-rail mountingYes

wall mountingNo

S7-300 rail mountingNo

S7-1500 rail mountingNo

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

port mirroringYes

multiport mirroringYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETII

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

SFTPYes

BOOTPYes

DCPYes

LLDPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

product functions / VLAN

number of VLANs / maximum257

number of VLANs - dynamic / maximum257

number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product functions / DHCP

DHCP clientYes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode

Media Redundancy Protocol for Planned Duplication (MRPD)No

of the PROFINET IO device / is supported / H-Sync forwardingYes

of the PROFINET IO device / is supported / PROFINET system redundancyYes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure RSTP+Yes

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkNo

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No

passive listeningYes

system modification during operation

product function / configuration in RUN via CiR/H-CiRYes

product functions / security

RADIUS clientYes

SSHYes

product functions / time

SICLOCK supportNo

NTPNo

SNTPYes

standards, specifications, approvals

CE markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4:2001 (Class A)

for immunity to EMCEN 61000-6-2, EN 61000-6-4

for safety / from CSA and ULUL 508 E85972

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

railway application in accordance with EN 50155No

railway application in accordance with EN 50124-1No

RoHS conformityYes

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Chinese Classification Society (CCS)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Royal Institution of Naval Architects (RINA)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total95.76 kg

during manufacturing20.21 kg

during operation75.23 kg

after end of life0.32 kg

product functions / general

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing20.21 kg

global warming potential [CO2 eq] / during operation75.23 kg

global warming potential [CO2 eq] / after end of life0.32 kg

global warming potential [CO2 eq] / total95.76 kg

Accessories 69

Genuine accessories that can be used with the Siemens 6GK5204-2AA00-2GF2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1900-0AB00	Aksesuar
6ES7193-6AF00-0AA0	Aksesuar · BusAdapter
6ES7193-6AG00-0AA0	Aksesuar · BusAdapter
6ES7193-6AG20-0AA0	Aksesuar · BusAdapter
6ES7193-6AG40-0AA0	Aksesuar · BusAdapter
6ES7193-6AM00-0AA0	Aksesuar · BusAdapter
6ES7193-6AP00-0AA0	Aksesuar · BusAdapter
6ES7193-6AP20-0AA0	Aksesuar · BusAdapter
6ES7193-6AP40-0AA0	Aksesuar · BusAdapter
6ES7193-6AR00-0AA0	Aksesuar · BusAdapter
6AG1193-6AG50-2AA0	Aksesuar · BusAdapter
6GK5980-0BB10-0AA5	Aksesuar
6GK5991-2VA00-8AA2	Aksesuar
6ES7193-6LA10-0AA0	Aksesuar · label
6ES7193-6LF30-0AW0	Aksesuar · label
6ES7193-6LR10-0AA0	Aksesuar · label
6ES7193-6RA00-1AN0	Aksesuar · Accessories
6XV1812-8A	Aksesuar · Cables · power cables
6XV1840-2AH10	Aksesuar · Cables · network cable electrical
6XV1870-2B	Aksesuar · Cables · network cable electrical
6GK1901-1BB50-0AA0	Aksesuar
6GK1901-1BB10-2AE0	Aksesuar
6GK1901-1BB10-2AB0	Aksesuar
6GK1901-1BB10-2AA0	Aksesuar
6GK1900-0ML00-0AA0	Aksesuar
6GK1900-0NL00-0AA0	Aksesuar
6XV1874-2A	Aksesuar · Cables · network cable optical
6XV1874-2B	Aksesuar · Cables · network cable optical
6GK1900-0MN00-0AA0	Aksesuar
6GK1900-0NB00-0AC0	Aksesuar
6XV1873-5AH10	Aksesuar · Cables · network cable optical
6XV1873-5AH20	Aksesuar · Cables · network cable optical
6XV1873-5AH30	Aksesuar · Cables · network cable optical
6XV1873-5AH50	Aksesuar · Cables · network cable optical
6XV1873-5AN10	Aksesuar · Cables · network cable optical
6XV1873-5AN15	Aksesuar · Cables · network cable optical
6XV1873-5AN20	Aksesuar · Cables · network cable optical
6XV1873-5AN30	Aksesuar · Cables · network cable optical
6XV1873-5AN40	Aksesuar · Cables · network cable optical
6XV1873-5AN50	Aksesuar · Cables · network cable optical
6XV1873-5AN80	Aksesuar · Cables · network cable optical
6XV1873-5AT10	Aksesuar · Cables · network cable optical
6XV1873-5AT15	Aksesuar · Cables · network cable optical
6XV1873-5AT20	Aksesuar · Cables · network cable optical
6XV1873-5AT30	Aksesuar · Cables · network cable optical
6XV1873-5CH50	Aksesuar · Cables · network cable optical
6XV1873-5CN10	Aksesuar · Cables · network cable optical
6XV1873-5CN15	Aksesuar · Cables · network cable optical
6XV1873-5CN20	Aksesuar · Cables · network cable optical
6XV1873-5RH10	Aksesuar · Cables · network cable optical
6XV1873-5RH20	Aksesuar · Cables · network cable optical
6XV1873-5RH30	Aksesuar · Cables · network cable optical
6XV1873-5RN10	Aksesuar · Cables · network cable optical
6XV1873-5RN30	Aksesuar · Cables · network cable optical
6XV1873-5RN50	Aksesuar · Cables · network cable optical
6XV1873-5RT10	Aksesuar · Cables · network cable optical
6XV1873-5RT15	Aksesuar · Cables · network cable optical
6GK1900-0MB00-0AC0	Aksesuar
6GK1901-1GA00	Aksesuar
6ES7193-6AR00-0AA0	Seçmeli zorunlu ürün · BusAdapter
6ES7193-6AF00-0AA0	Seçmeli zorunlu ürün · BusAdapter
6ES7193-6AG00-0AA0	Seçmeli zorunlu ürün · BusAdapter
6ES7193-6AG20-0AA0	Seçmeli zorunlu ürün · BusAdapter
6ES7193-6AG40-0AA0	Seçmeli zorunlu ürün · BusAdapter
6ES7193-6AM00-0AA0	Seçmeli zorunlu ürün · BusAdapter
6ES7193-6AP00-0AA0	Seçmeli zorunlu ürün · BusAdapter
6ES7193-6AP20-0AA0	Seçmeli zorunlu ürün · BusAdapter
6ES7193-6AP40-0AA0	Seçmeli zorunlu ürün · BusAdapter
6AG1193-6AG50-2AA0	Seçmeli zorunlu ürün · BusAdapter
