How can I get a price quote for Siemens 6GK5201-3BH00-2BD2?

You can request a fast quote for Siemens 6GK5201-3BH00-2BD2 from Yılsa Engineering. Reference part number YLSY5VKHB3BVYYX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5201-3BH00-2BD2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5201-3BH00-2BD2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5201-3BH00-2BD2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

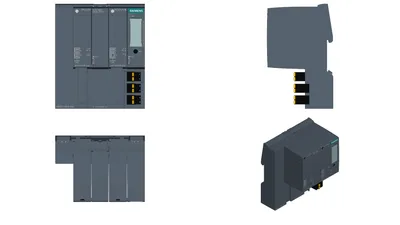

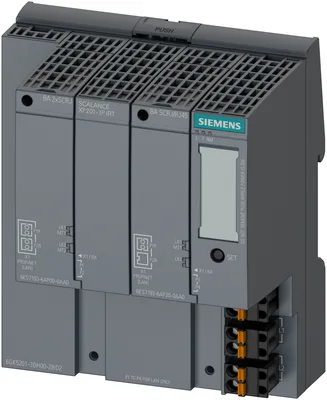

Siemens 6GK5201-3BH00-2BD2

XF201-3P IRT managed IE IRT switch, 1x 10/100 Mbit/s RJ45 ports, 3x 100 Mbit/s POF SC RJ Ports, Bus adapter assembled, Error signaling contact with set pushbutton, redundant power supply, PROFINET IO device, network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-PLUG optional.

SiemensMFR # 6GK5201-3BH00-2BD2SKU # YLSY5VKHB3BVYYX

product brand nameSCALANCE

product type designationXF201-3P IRT

transfer rate10, 100 Mbit/s

for signaling contact1

for power supply1

for signaling contact2-pole terminal block

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5201-3BH00-2BD2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXF201-3P IRT

transfer rate

transfer rate10, 100 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment1

number of 100 Mbit/s SC-RJ-ports / for POF FOC / with push-pull connection system3

interfaces / other

for signaling contact1

for power supply1

for signaling contact2-pole terminal block

for power supply2-pole terminal block

C-PLUGYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value8.4 W

supply voltage / 1 / voltage range19.2 ... 28.8

consumed current / 1 / maximum0.4 A

type of electrical connection / 1 / for power supply2-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltage2.5 A (cannot be replaced by user)

ambient conditions

during operation0 ... 50 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

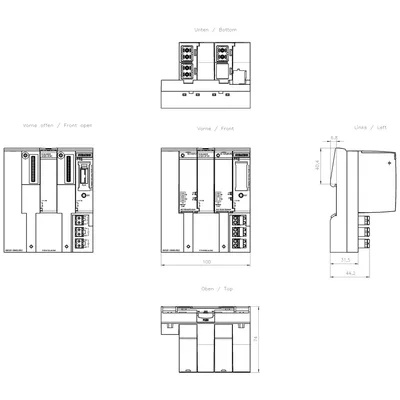

design, dimensions and weights

designcompact

width100 mm

height117 mm

depth74 mm

net weight0.25 kg

35 mm DIN-rail mountingYes

wall mountingNo

S7-300 rail mountingNo

S7-1500 rail mountingNo

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

port mirroringNo

multiport mirroringNo

with IRT / PROFINET IO switchYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classC

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

FTPYes

BOOTPNo

DCPYes

LLDPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

product functions / DHCP

DHCP clientYes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol for Planned Duplication (MRPD)Yes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No

passive listeningYes

product functions / security

SSHYes

product functions / time

SICLOCK supportYes

NTPNo

SNTPYes

standards, specifications, approvals

CE markingYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1

standards, specifications, approvals / hazardous environments

ATEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

standards, specifications, approvals / other

railway application in accordance with EN 50155No

railway application in accordance with EN 50124-1No

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

product functions / general

warranty period5 a
